Digital Voltmeter-Ammeter, 220V, 100A
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 76,99 lei | — |
| 3–4 pcs | 73,14 lei | 5% (−3,85 lei/unit) |
| 5–10 pcs | 69,29 lei | 10% (−7,70 lei/unit) |
| 11+ pcs | 65,44 lei | 15% (−11,55 lei/unit) |

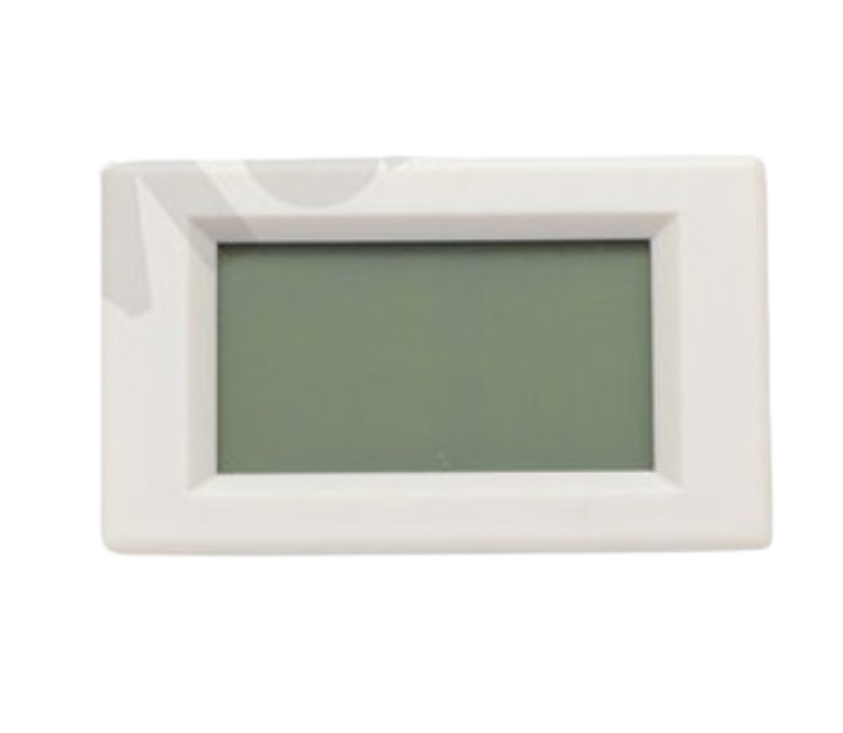

220V Digital Voltmeter-Ammeter for Precise Electrical Consumption Monitoring
This digital voltmeter-ammeter with an LCD display offers accurate measurements of voltage and current intensity in domestic and commercial installations. It monitors consumption in real-time on the same unit, without electrician costs for installation. Ideal for electrical panels, solar panels, or industrial equipment where control of electrical parameters is essential.
What you get with this product
- Simultaneous voltage and current measurements on a single readable LCD display, for complete control of electrical consumption
- Wide measuring range 80-300V AC and 0-99.9A AC, compatible with most residential and commercial electrical installations
- Quick installation in the electrical panel via DIN rail mounting or screw fixing, no additional equipment required
- Continuous monitoring of electrical parameters for rapid detection of overloads and optimization of consumption
- Compact design with durable plastic casing, suitable for tight spaces in standard electrical panels

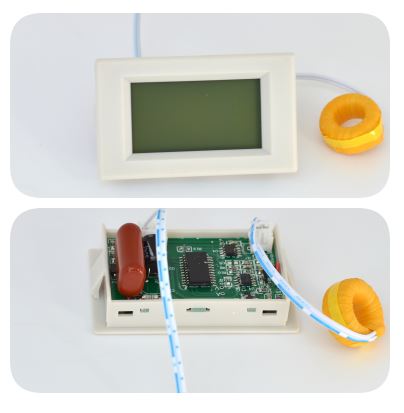

- Current transformer included for amperage measurement without complex interventions in the electrical circuit
How it works and how to install it
The device connects to input P1 for voltage measurement between 80-300V AC and to input P2 via the current transformer for current intensity measurement up to 99.9A AC. The LCD display shows both parameters simultaneously, updating in real-time. Installation is done by fixing the casing in the electrical panel and connecting the cables according to the diagram in the manual, an operation accessible to anyone with average electrical knowledge. The clamp-on current transformer is attached to the phase cable without requiring circuit interruption.
Frequently Asked Questions
Can I connect this voltmeter-ammeter directly to a power outlet or does it need to be installed in the panel?
The device is designed for installation in the electrical panel and requires direct connections to the circuit to be monitored; it does not work by simply plugging it into an outlet.
Does it also display power in watts, or only voltage and current?
This model exclusively displays voltage and current intensity; power must be calculated manually by multiplying the two values.
Is it compatible with 220V single-phase installations in Romania?
Yes, the 80-300V AC measuring range makes it perfectly compatible with the standard Romanian electrical grid of 220-230V.
Technical Specifications
| Model | SK85-2SL (LCD) |
| Measuring Voltage (P1) | 80-300V AC |
| Measuring Current (P2) | 0-99.9A AC |
| Display Type | Digital LCD |
| Functions | AC Voltmeter, AC Ammeter, Frequency Meter |

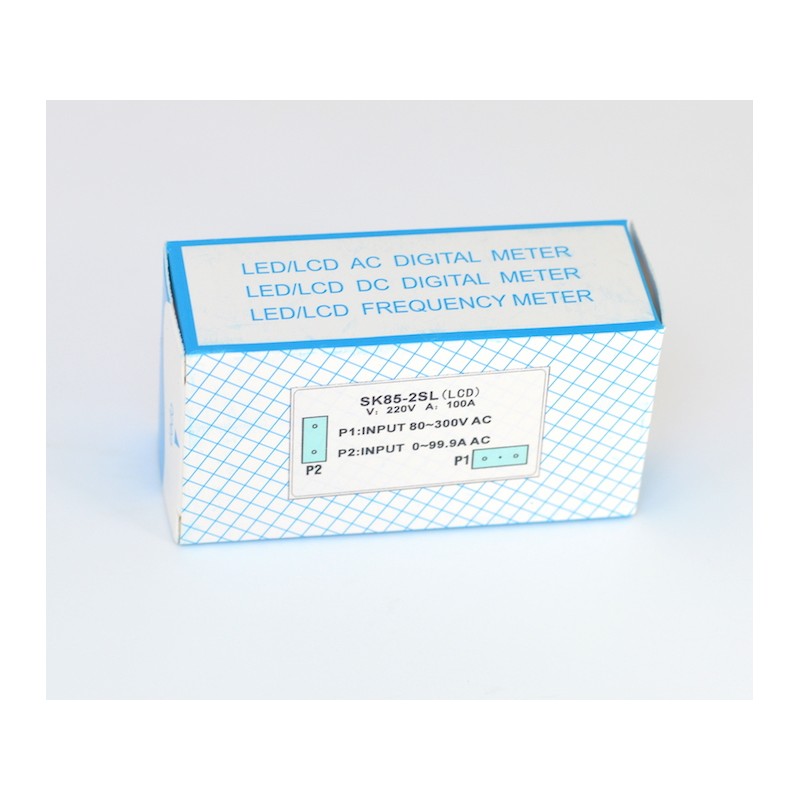

| Package Contents | 1x Digital Voltmeter-Ammeter, 1x Current Transformer |
| EAN Code | 0781499721798 |
Warranty and support
The product benefits from a 2-year warranty in accordance with Romanian consumer protection legislation. You have the right to return within 30 days of receipt if the product does not meet expectations. Delivery is fast via national courier, with the option of cash on delivery.
