Axial Fan 24V, 40x40x20 mm, Cooler Type, 0.8W
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 12,99 lei | — |
| 3–4 pcs | 12,34 lei | 5% (−0,65 lei/unit) |
| 5–10 pcs | 11,69 lei | 10% (−1,30 lei/unit) |
| 11+ pcs | 11,04 lei | 15% (−1,95 lei/unit) |

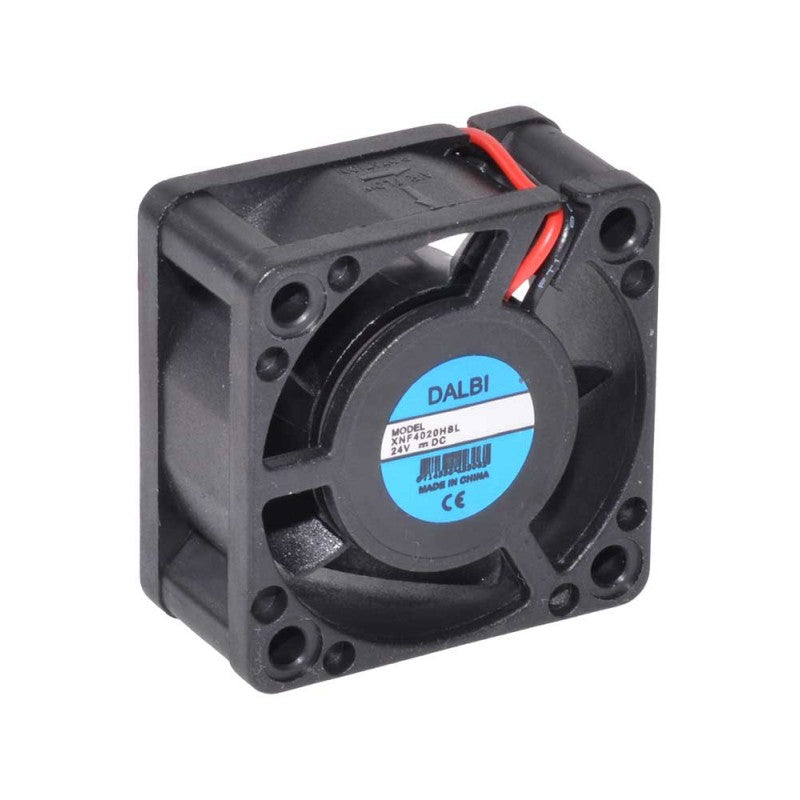

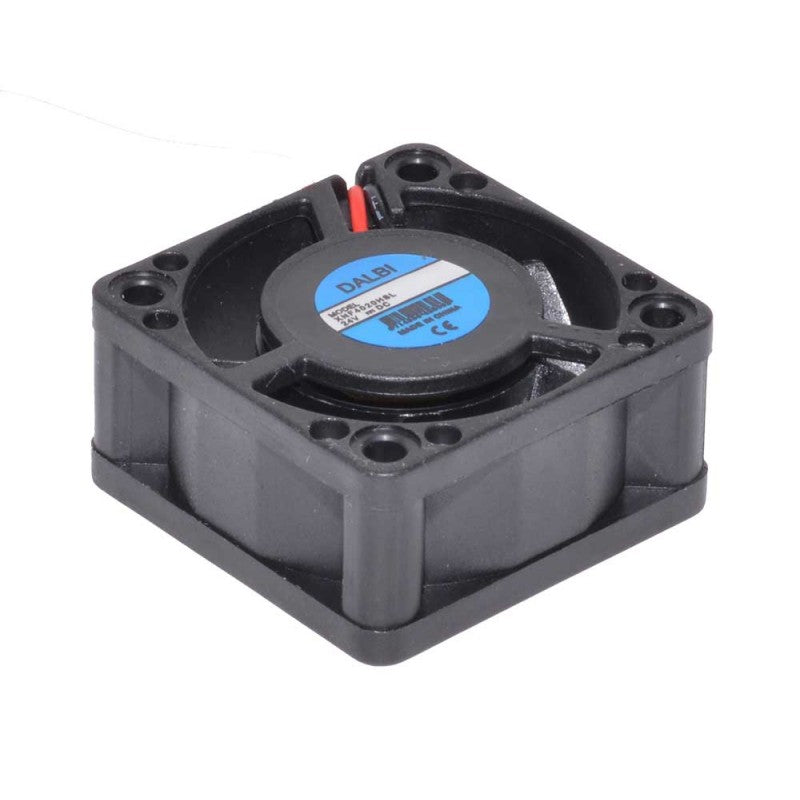

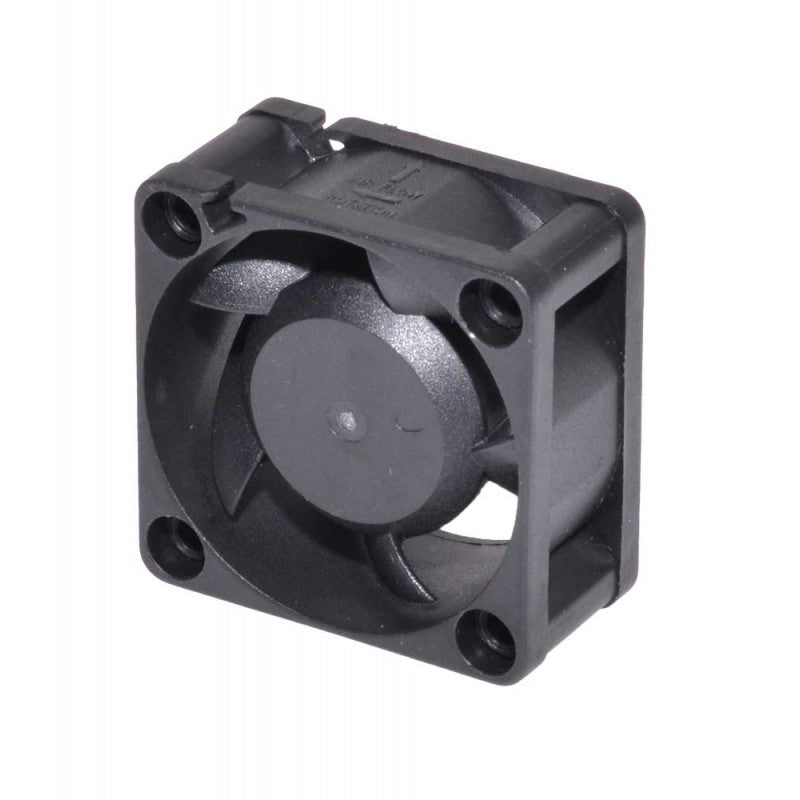

24V DC axial fan for efficient cooling in tight spaces
This compact 40x40x20mm fan ensures continuous ventilation and efficient cooling for electronic equipment, refrigerators, welding machines, and industrial ventilation systems. It operates quietly at 24V DC, with a low power consumption of just 0.8W, and can be quickly mounted using the four pre-drilled fixing holes in the casing.
What you get with this product
- Simple screw mounting in just a few minutes, no special tools required
- Minimal power consumption of 0.8W, ideal for 24/7 operation without high costs
- Airflow of 13.01 m3/h, sufficient for cooling compact equipment

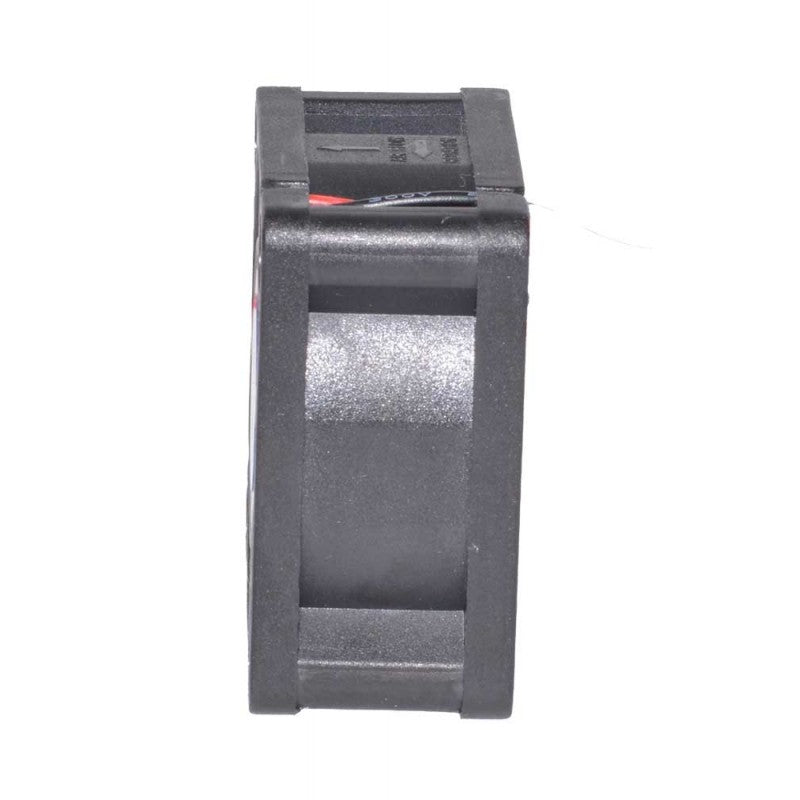

- Compact dimensions of 40x40x20mm fit into narrow spaces where other fans cannot
- Robust casing made of wear-resistant plastic for long-term functionality

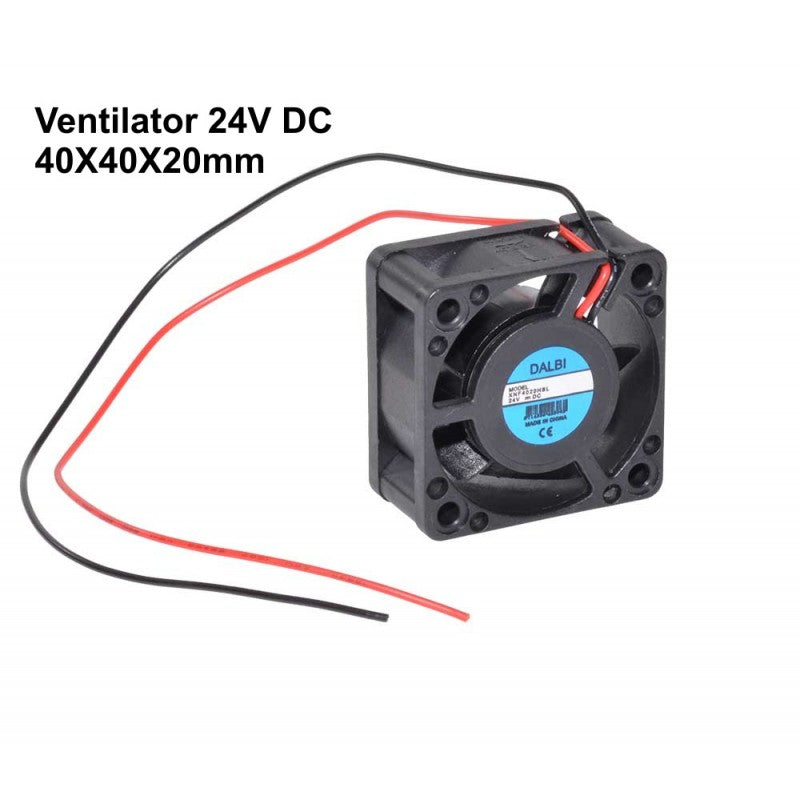

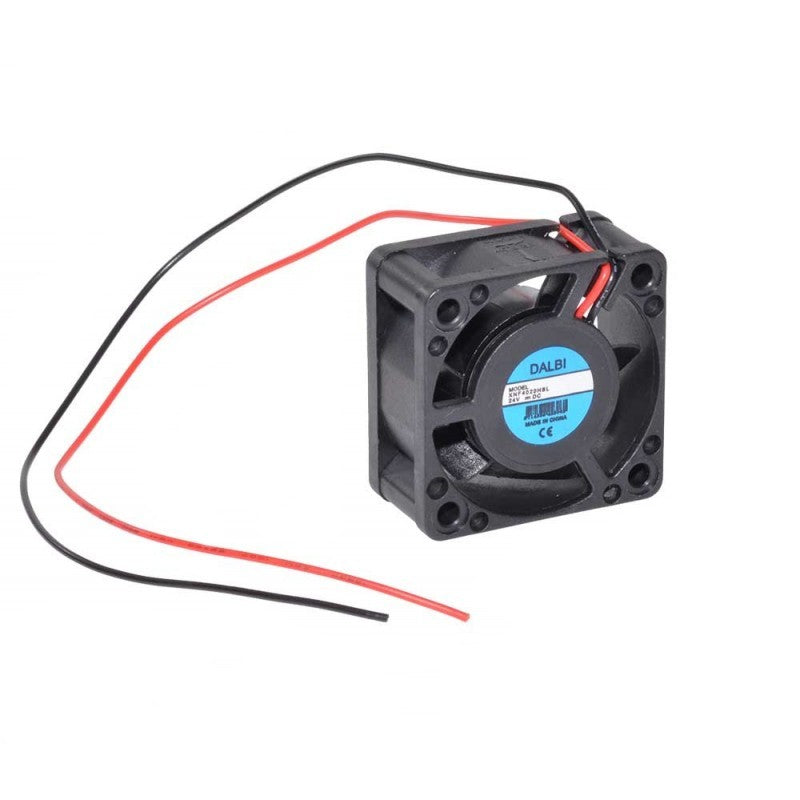

- Connecting wires included, 20cm long, for flexible installation without additional extensions
How it works and how to install it
The fan operates on a direct 24V DC power supply via the two attached wires (red positive, black negative). The axial impeller generates a constant airflow at 6200 revolutions/minute, exhausting or introducing hot/cold air depending on the chosen positioning. Installation is done by screwing it into the four corner holes, orienting the airflow direction as needed. It requires no maintenance or calibration.
Frequently Asked Questions
Can it operate continuously 24 hours a day without overheating?
Yes, the fan is designed for continuous operation, with its low 0.8W consumption ensuring a stable operating temperature even after weeks of continuous use.
Can it be powered by a 24V battery or solar panel?
Yes, it accepts any 24V DC source with a minimum rated current of 0.033A, including batteries, accumulators, and solar panels with a voltage regulator.
How noisy is it during operation?
The noise level is low due to the balanced axial design, suitable for use in offices, technical rooms, or near vibration-sensitive equipment.
Technical Specifications
| Model | XNF-4020-HSL-24 |
| Supply voltage | 24V DC |
| Power consumption | 0.8W |
| Rated current | 0.033A |
| Dimensions | 40 x 40 x 20 mm |
| Rotation speed | 6200 rpm |
| Airflow | 13.01 m³/h |
| Wire length | 20 cm |
| Casing material | Plastic |
| Connection type | 2 wires (red/black) |
Warranty and support
The product benefits from a 24-month conformity warranty in accordance with current Romanian legislation. 30-day return policy from receipt of package. Fast delivery via national courier with telephone confirmation before arrival.
