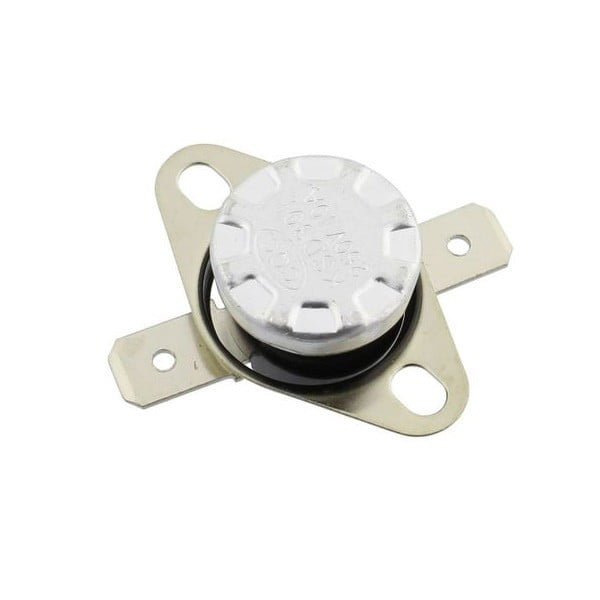

Bimetal Thermostat, Temperature Sensor 75°C 250V - 10A
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 6,99 lei | — |
| 3–4 pcs | 6,64 lei | 5% (−0,35 lei/unit) |
| 5–10 pcs | 6,29 lei | 10% (−0,70 lei/unit) |
| 11+ pcs | 5,94 lei | 15% (−1,05 lei/unit) |
75°C Bimetal Thermostat for Automatic Thermal Protection
This bimetal thermostat protects electrical equipment from overheating, automatically disconnecting the circuit at 75°C and reconnecting after cooling. It is the ideal solution for coffee makers, irons, water heaters, electric radiators, and other appliances requiring precise thermal control. Simple installation by direct connection to the appliance's electrical circuit.
What you get with this product
- Automatic overheating protection — disconnects the circuit at 75°C and automatically resets after cooling
- Universal compatibility — works with any electrical appliance up to 250V and 10A
- Long lifespan — bimetal construction resistant to repeated heating-cooling cycles
- Quick installation without a specialist — two terminals for direct connection to the electrical circuit
- Increased safety — prevents equipment damage and reduces the risk of fire caused by overheating
- Compact metal design — easily mounts in small spaces, ideal for repairs and maintenance
How it works and how to install it
The thermostat uses a bimetal plate that deforms at a temperature of 75°C, automatically interrupting the electrical contact. After cooling, the plate returns to its original shape and restores the connection. Installation is done by connecting the two terminals in series with the appliance's heating element, using screws or standard electrical connectors. It requires no adjustments or calibrations — it works immediately after installation.
Frequently Asked Questions
Does it reset automatically or does it need to be reset manually?
The thermostat resets automatically once the temperature drops below the trigger threshold, without manual intervention.
Can it also be used with 12V appliances?
Yes, it works at any voltage between 12V and 250V, with a maximum current consumption of 10A.
How precise is the trip temperature?
The trip temperature is 75°C with a tolerance of approximately 5°C, which is standard for bimetal thermostats.
Technical specifications
| Trip temperature | 75°C |
| Maximum voltage | 250V |
| Maximum current | 10A |
| Reset type | Automatic |
| Housing material | Metal |
| Contact type | Normally closed (NC) |
| EAN | 0781499709802 |
Warranty and support
The product benefits from a 24-month warranty in accordance with Romanian legislation. 30-day return policy. Fast courier delivery throughout Romania.
