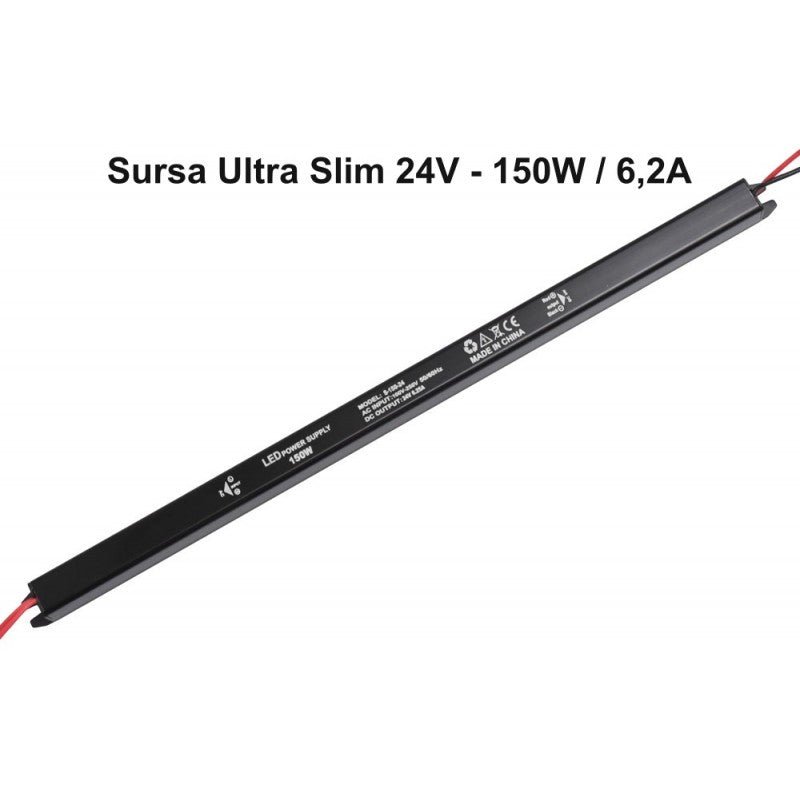

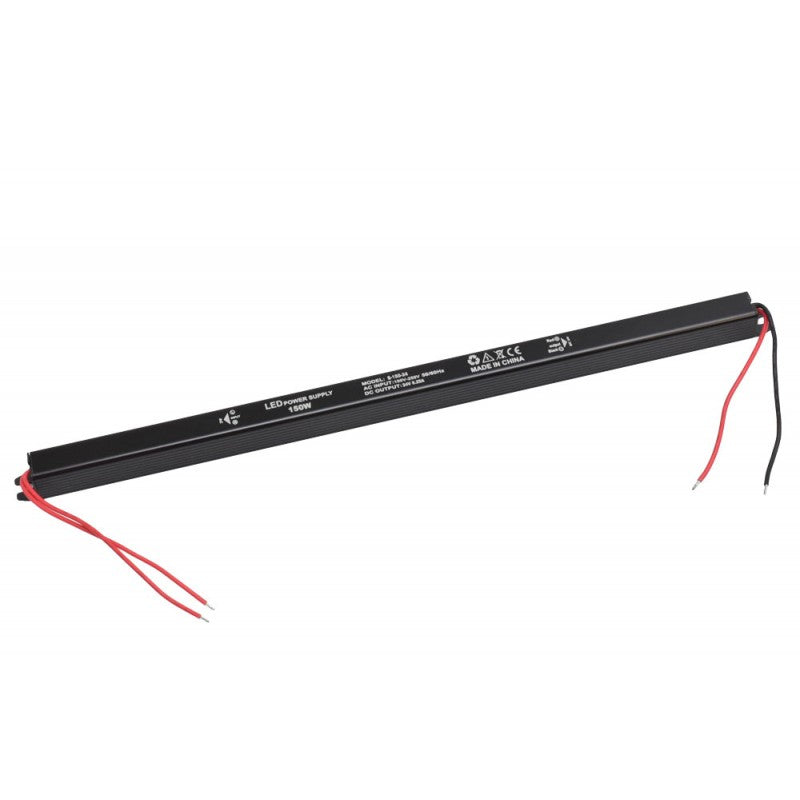

Power Supply, Ultra Slim Black, 24V, 150W, 6.2A, Indoor, IP20
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 66,99 lei | — |
| 3–4 pcs | 63,64 lei | 5% (−3,35 lei/unit) |
| 5–10 pcs | 60,29 lei | 10% (−6,70 lei/unit) |
| 11+ pcs | 56,94 lei | 15% (−10,05 lei/unit) |
Ultra-slim 24V LED power supply for confined spaces
This 24V power supply with 150W output and 6.2A current is the ideal solution for indoor LED installations where space is limited. With ultra-compact dimensions and an aluminum casing for efficient heat dissipation, the power supply integrates discreetly into projects with LED strips, light bars, or spotlights. The slim design allows for mounting in narrow spaces, without compromising performance or safety.
What you get with this product
- Extremely compact dimensions of only 38 x 2 x 2 cm — easily concealed in profiles, false ceilings, or narrow spaces
- Metal aluminum casing with passive cooling — natural heat dissipation without noisy fans
- Built-in overload and overvoltage protection — LED equipment remains protected in any situation
- Universal compatibility with 110-220V AC input voltage — works seamlessly in any electrical grid
- Simple installation via direct connection — complete kit with cables, ready for installation in 15 minutes
- High energy efficiency with quality components — low consumption and long lifespan
How it works and how to install it
The power supply converts 220V AC current from the outlet into 24V DC current required for LED equipment operation. The connection is made via two marked cables at the input and output — the red and black cables are correctly connected to the LED strip respecting polarity. The power supply is fixed in a location protected from moisture, with sufficient space for air circulation, and installation is quick using the included brackets. Passive cooling through the aluminum casing eliminates the need for fans, ensuring silent operation.
Frequently Asked Questions
How many meters of LED strip can I power with this unit?
It depends on the strip's consumption. For standard 14W per meter strips, you can power approximately 10 meters. Always check the specific consumption of your strip and ensure you do not exceed 150W in total.
Can I mount the power supply in an enclosed space, or does it require ventilation?
The power supply has passive cooling through its aluminum casing, but it requires minimal air circulation. Avoid mounting it in completely sealed boxes or in direct contact with thermal insulation materials.
Is it suitable for humid areas or outdoors?
No, this power supply has an IP20 protection rating and is intended exclusively for indoor use in dry spaces. For humid areas or outdoors, power supplies with IP65 rating or higher are required.
Technical Specifications
| Input voltage | 110-220V AC |
| Output voltage | 24V DC |
| Maximum current | 6.2A |
| Rated power | 150W |
| Frequency | 50/60Hz |
| Protection rating | IP20 |
| Operating temperature | max 65°C |
| Dimensions | 380 x 20 x 20 mm |
| Casing material | Aluminum |
| Cooling type | Passive |
| Protections | Overload, overvoltage |
| Certifications | CE, RoHS |
Warranty and support
The product benefits from a 2-year warranty in accordance with current Romanian legislation. You have the right to return within 30 days of receiving the order. Delivery is fast by courier throughout the country, with secure packaging for optimal transport conditions.
