Power Supply, Slim, Internal, 24V, 10A, 240W
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 100,99 lei | — |
| 3–4 pcs | 95,94 lei | 5% (−5,05 lei/unit) |
| 5–10 pcs | 90,89 lei | 10% (−10,10 lei/unit) |
| 11+ pcs | 85,84 lei | 15% (−15,15 lei/unit) |
Slim 24V 240W Power Supply for LED Strips

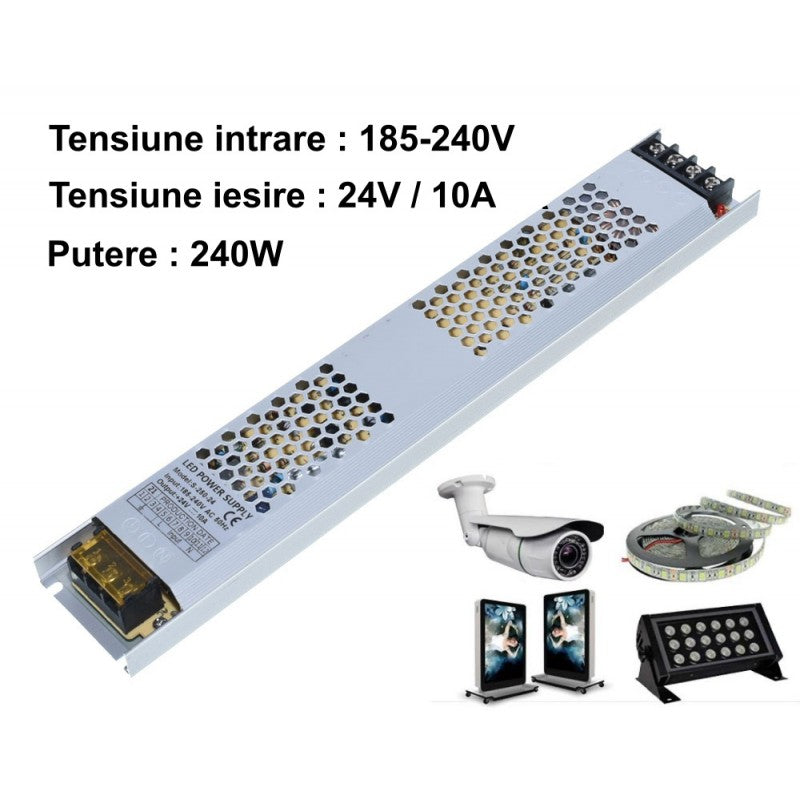

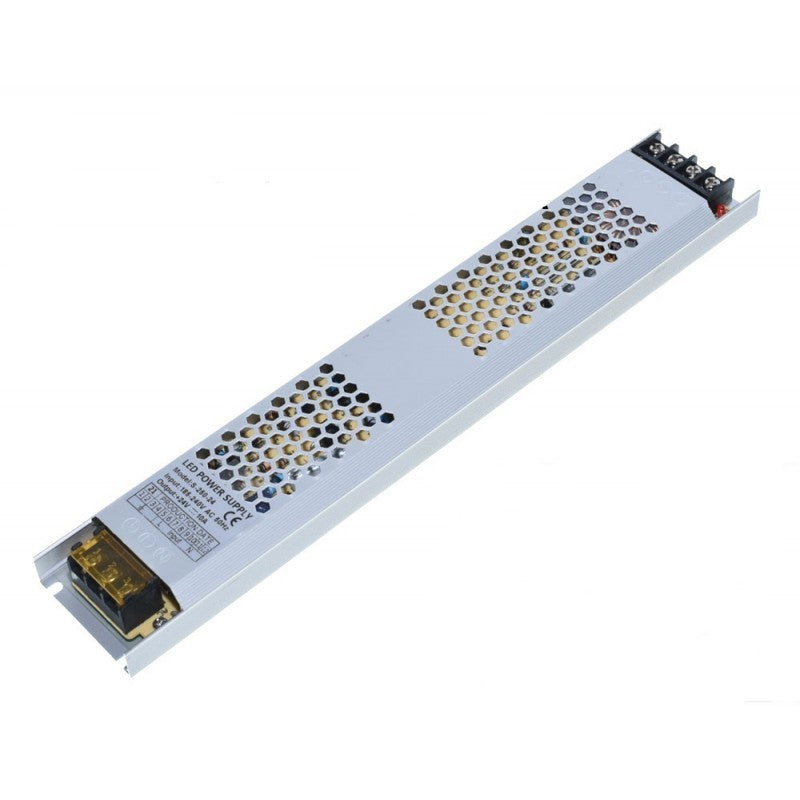

This slim 240W power supply converts mains voltage to a stable 24V DC, making it the ideal solution for LED strips, LED bars, light panels, or other electronic lighting equipment. The compact design with a perforated aluminum casing ensures efficient heat dissipation and easy installation in small spaces.
What you get with this product
- Powers up to 10 meters of medium-power 24V LED strip without voltage drop

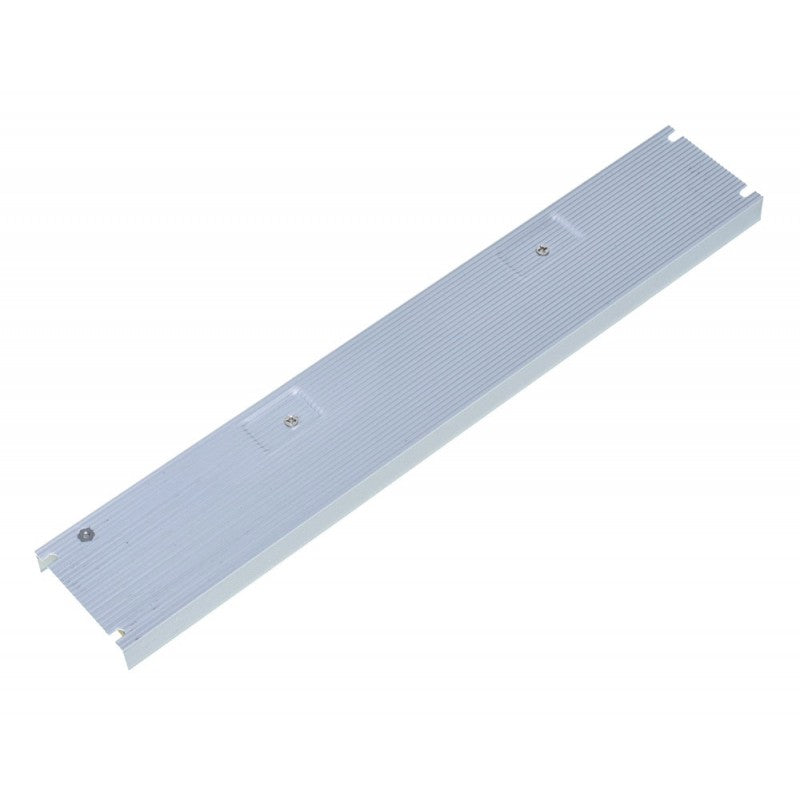

- Slim aluminum casing, only 23mm thick, can be discreetly installed in drywall profiles or narrow spaces

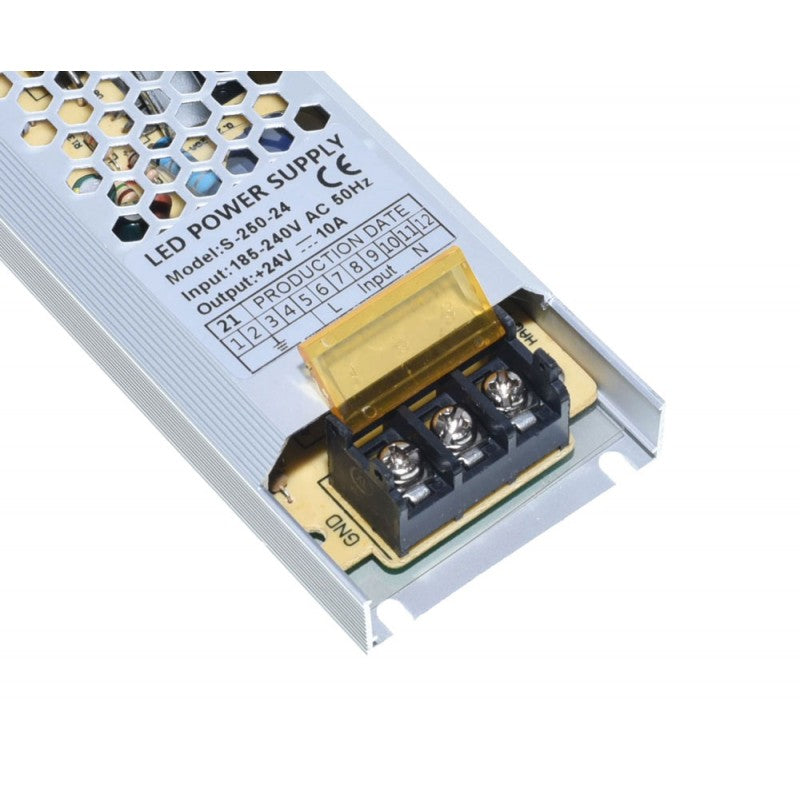

- Simplified connection via screw terminals for AC input and two positive and negative DC outputs
- Integrated protection against overload, short circuit, and overheating prevents equipment damage
- Silent operation without a fan, through passive cooling with hexagonal perforations

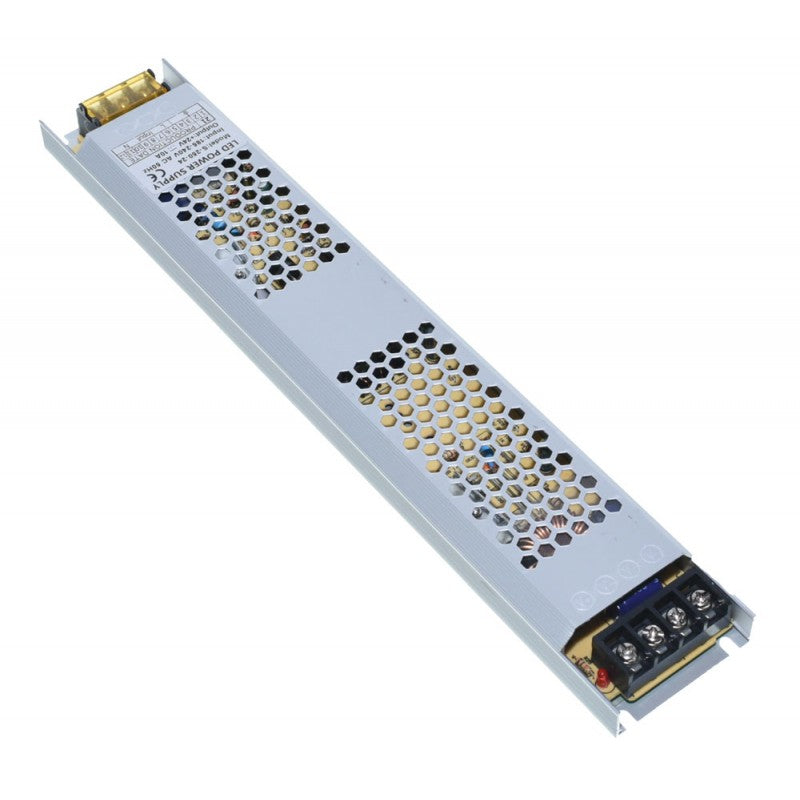

- Status LED on the casing confirms output voltage presence without the need for a multimeter
How it works and how to install it
The power supply converts 185-240V AC mains voltage into constant 24V DC through electronic circuits with multiple protections. At the input, connect the mains cables to the L, N, and ground terminals, and at the output, connect the LED strip or equipment to the terminals marked positive and negative. Installation is done on flat surfaces using the mounting holes, in spaces with natural ventilation, protected from humidity. Installation requires knowledge from a certified electrician in accordance with current regulations.
Frequently Asked Questions
Can I use this power supply outdoors or in the bathroom?
No, the power supply has an IP20 protection rating and is designed exclusively for indoor installation in dry areas, protected from moisture, dew, or direct water splashing.
How many meters of 24V LED strip can I power with this unit?
It depends on the power of your LED strip. For standard 24W/meter strips, you can power up to 10 meters. Check the power consumption per meter and divide 240W by this value for an accurate calculation.
Does the power supply make noise during operation or get very hot?
The power supply does not have a fan and operates completely silently. The aluminum casing with hexagonal perforations efficiently dissipates heat, so it is normal for it to be warm to the touch during normal operation. Do not cover the ventilation holes.
Technical specifications
| Input voltage | 185-240V AC 50/60Hz |
| Output voltage | 24V DC |
| Maximum output current | 10A |
| Maximum power | 240W |
| Number of outputs | 2 positive + 2 negative |
| Protection degree | IP20 |
| Housing material | Perforated aluminum |
| Dimensions | 310 x 54 x 23 mm |
| Mounting type | Indoor, on a flat surface |
| LED indicator | Yes, voltage presence |
| Protections | Overload, short circuit, overheating |
| EAN | 0781499726458 |
Warranty and support
The product benefits from a 24-month warranty in accordance with current Romanian legislation. You have the right to return within 30 days of delivery. Fast delivery by partner courier nationwide, with real-time package tracking.
