Power Supply, Slim, Indoor, 12V, 240W, 20A
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 110,99 lei | — |
| 3–4 pcs | 105,44 lei | 5% (−5,55 lei/unit) |
| 5–10 pcs | 99,89 lei | 10% (−11,10 lei/unit) |
| 11+ pcs | 94,34 lei | 15% (−16,65 lei/unit) |
Slim 12V 240W power supply for professional LED installations

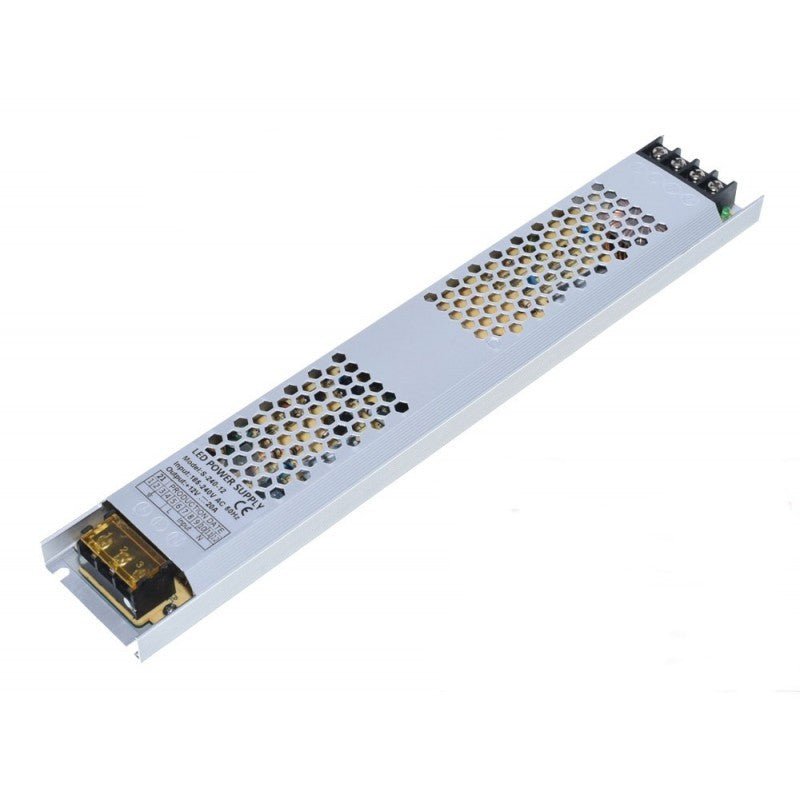

Compact transformer in an aluminum casing, designed to power LED strips, LED bars, and 12V light fixtures in indoor spaces. It delivers a stable 20A current to up to 20 meters of LED strip or multiple devices connected in parallel. Quick installation via a 3-way connection terminal block and an ultra-slim design that integrates into false ceilings or niches.
What you get with this product
- Slim format 310 x 53.5 x 21.5 mm — mounts concealed in false ceilings, niches, or cabinets without occupying visible space
- Constant current of 20A — powers up to 20 meters of LED strip or multiple light fixtures connected in parallel without light fluctuations

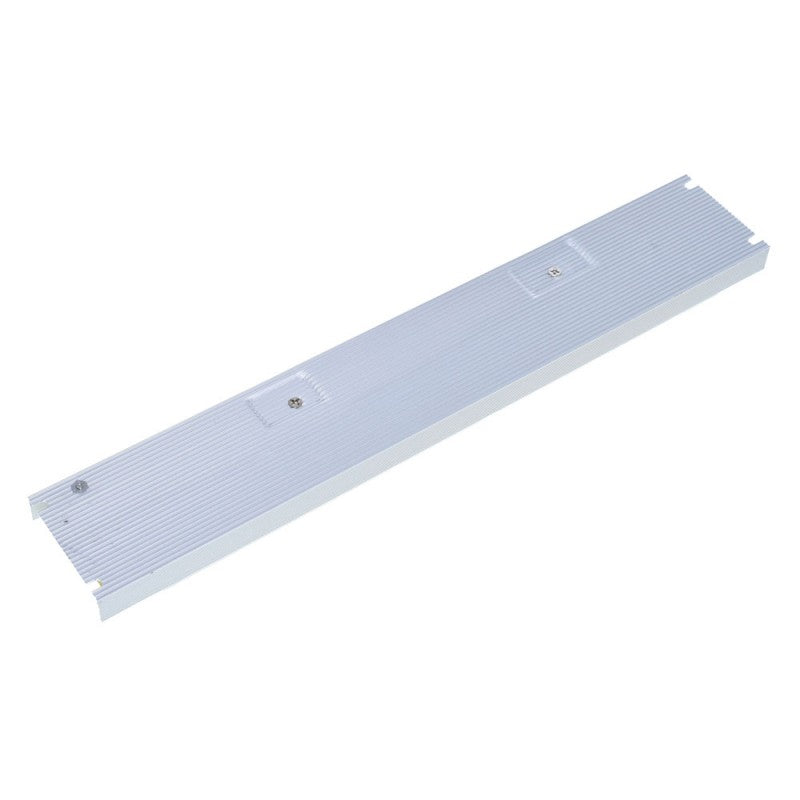

- Aluminum casing with ventilation slots — efficiently dissipates heat and operates stably even at continuous maximum load

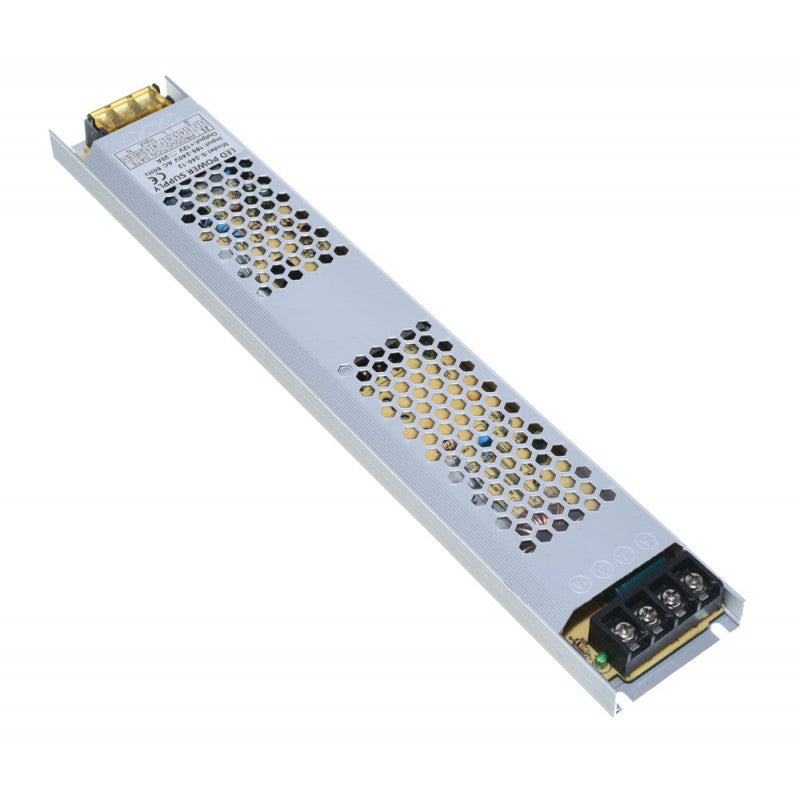

- Terminal block with 3 connection ways and LED indicator — immediately shows if the power supply is active and easily connects power cables
- Short-circuit and overload protection — safe components that do not affect the household electrical installation in case of failure
- Compatible with 110-220V AC input — works in any standard Romanian socket without an additional transformer
How it works and how to install

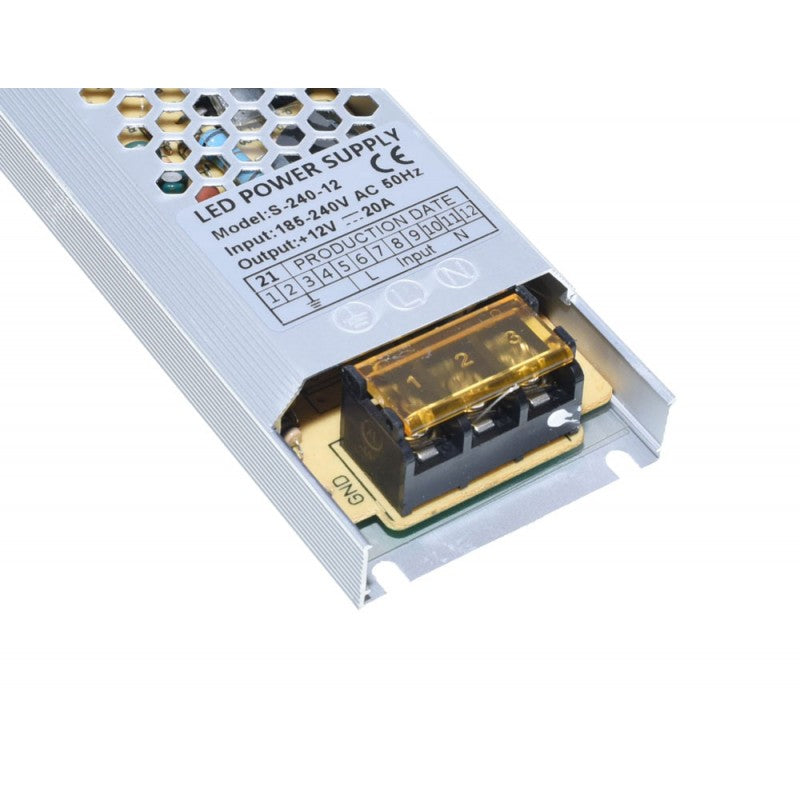

The power supply converts the 220V AC mains voltage into 12V DC direct current required by LED strips and low-voltage light fixtures. Connect the power cable to the terminal block marked L-N-I, then the LED device cables to the + and - terminals at the output. After powering on, the indicator LED lights up, confirming that the power supply is delivering current.
Installation is exclusively in dry indoor spaces, away from heat and humidity sources. Ensure that the ventilation slots remain uncovered for natural cooling. For connection to the mains, you need a standard power cord, which is not included in the package. If you do not have experience with electrical installations, contact a certified electrician.
Frequently Asked Questions
How many meters of LED strip can I power with this 240W power supply?
It depends on the LED strip's consumption per meter. A standard 14.4W per meter strip allows connecting approximately 16 meters, and a 12W per meter strip allows up to 20 meters.
Can I install the power supply in a bathroom or outdoors?
No, the power supply has an IP20 protection rating and operates exclusively in dry indoor spaces, protected from moisture, rain, and dew.
Is forced cooling necessary, or can I install the power supply in an enclosed space?
The aluminum casing with ventilation slots ensures efficient passive cooling, but the slots must not be covered. Ensure natural ventilation around the power supply.
Technical Specifications
| Input voltage | 110-220V AC ±15%, 50/60Hz |
| Output voltage | 12V DC |
| Output current | 20A |
| Maximum power | 240W |
| Number of outputs | 2 positive, 2 negative, 2 grounding |
| Dimensions | 310 x 53.5 x 21.5 mm |
| Casing material | Aluminum with ventilation slots |
| Protection rating | IP20 |
| Mounting type | Indoor |
| LED indicator | Yes |
| EAN | 0781499726496 |
Warranty and Support
The product benefits from a 24-month warranty in accordance with Romanian law. Right of return within 30 days of purchase if the product does not meet expectations
