Slim Power Supply 24V - 16.7A 400W ElectroAZ
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 89,99 lei | — |
| 3–4 pcs | 85,49 lei | 5% (−4,50 lei/unit) |
| 5–10 pcs | 80,99 lei | 10% (−9,00 lei/unit) |
| 11+ pcs | 76,49 lei | 15% (−13,50 lei/unit) |

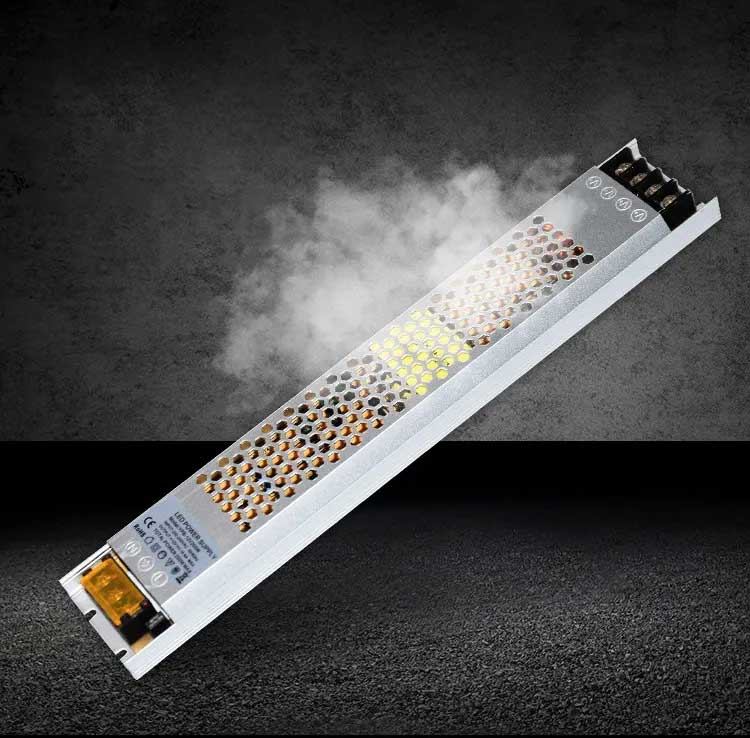

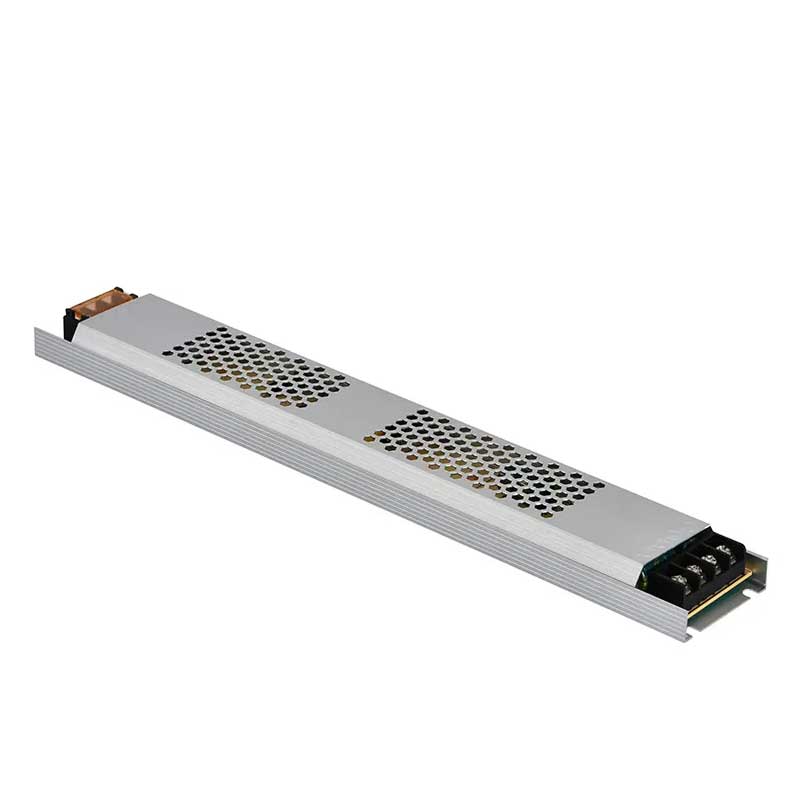

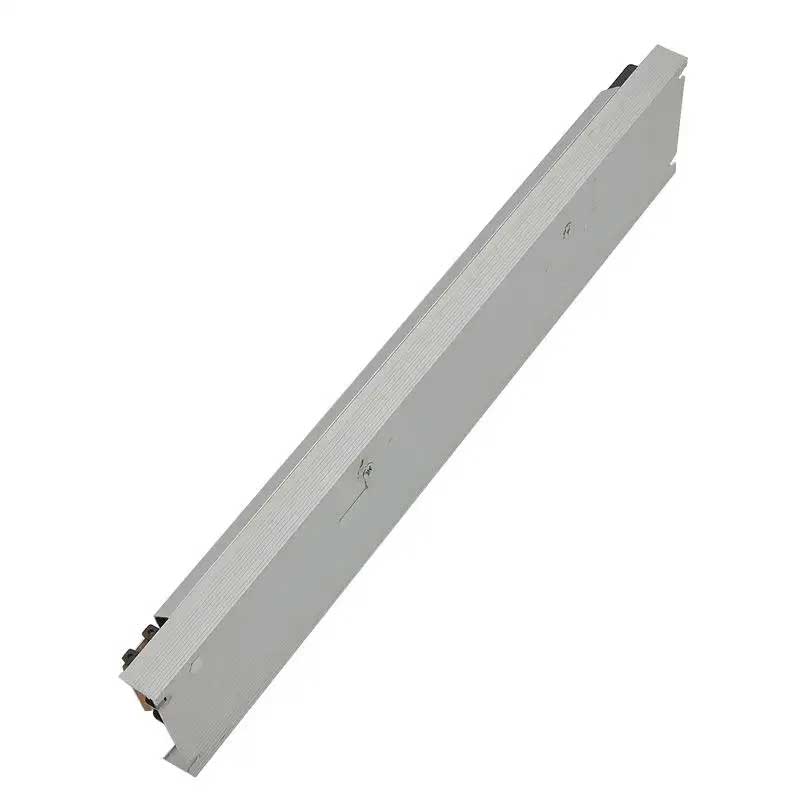

24V 400W Power Supply for Professional LED Lighting
The slim 24V 16.7A 400W power supply ensures stable conversion from 220V AC to 24V DC for LED strips, spotlights, and electronic equipment. Compact aluminum design, ideal for confined spaces and professional installations requiring reliable power without overheating.
What you get with this product
- Constant power of 400W at 24V DC for simultaneous powering of multiple LED strips or light modules without voltage drops
- Slim aluminum casing, only 23mm thick, with active ventilation — mounts in electrical panels, shelves, or narrow spaces
- Dual output terminals (+) and (-) for quick connection of multiple loads without the need for additional parallel connections
- Overload and short-circuit protection — the power supply automatically disconnects and resumes normal operation after the problem is resolved
- Visible LED indicator confirming correct operation and stabilized output voltage
- Efficient conversion with high efficiency that reduces electricity consumption and produces minimal heat during continuous operation
How it works and how to install it
The power supply converts 220V AC mains voltage to 24V DC through switching conversion with electronic stabilization. Connect the power cable to the L-N-E terminals (live, neutral, earth), then connect the loads to the output terminals (+24V and GND). Installation is done on a DIN rail or by direct wall mounting using the screws included in the package. Ensure a ventilation space of at least 5cm around the casing and do not cover the ventilation holes. Installation requires electrical knowledge and adherence to safety regulations — execution by a certified electrician is recommended.
Frequently asked questions
Can I connect 12V LED strips to this 24V power supply?
No, this power supply is only for equipment with a nominal voltage of 24V DC. Connecting 12V strips will result in burning out the LEDs.
How many meters of LED strip can I power with 400W at 24V?
It depends on the power of the strip per meter. Example: for 14W/m strips, you can power approximately 28 meters. Check the specific consumption on your strip's packaging.
Can the power supply operate outdoors under an eave?
No, the product has an IP20 protection rating and is intended exclusively for indoor use in dry areas, protected from moisture and weather.
Technical specifications
| Input voltage | 185-240V AC, 50/60Hz |
| Output voltage | 24V DC |
| Maximum current | 16.7A |
| Rated power | 400W |
| Protection rating | IP20 |
| Number of outputs | 2x (+) / 2x (-) |
| Casing | Aluminum |
| Dimensions | 370 x 54 x 23 mm |
| Operation indicator | Green LED |
| Mounting type | Indoor |
| EAN | 0704384673170 |
Warranty and support
The product benefits from a 2-year conformity warranty in accordance with current Romanian legislation. You have the right to return within 30 days of receipt. Fast delivery via courier services throughout Romania.
