Power Supply, Outdoor, 5V, 400W, 80A, IP52
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 186,99 lei | — |
| 3–4 pcs | 177,64 lei | 5% (−9,35 lei/unit) |
| 5–10 pcs | 168,29 lei | 10% (−18,70 lei/unit) |
| 11+ pcs | 158,94 lei | 15% (−28,05 lei/unit) |
400W Outdoor Power Supply for LED Strips and 5V Systems

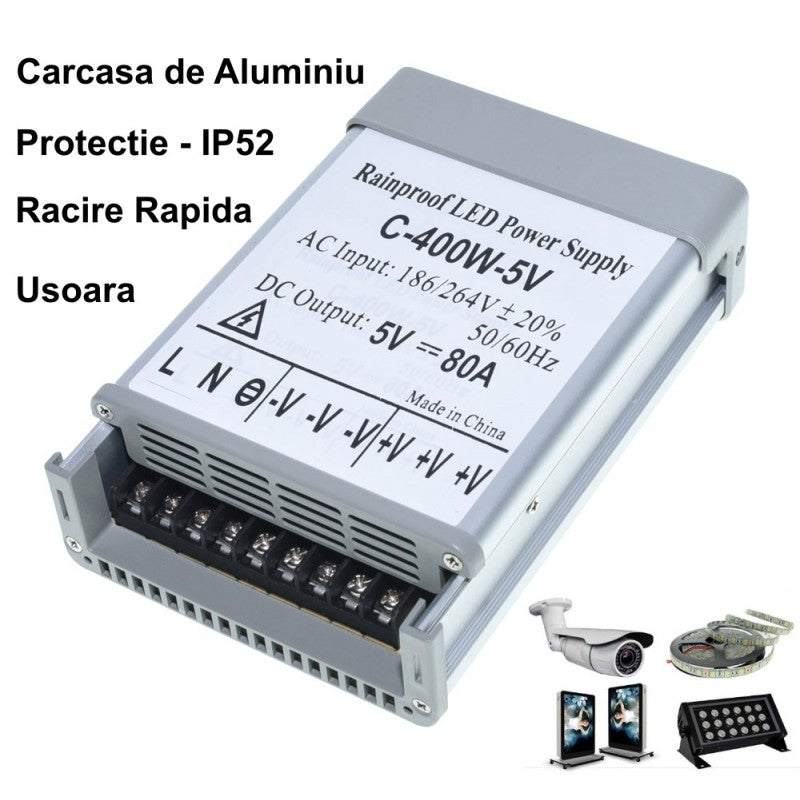

The 400W LED transformer with 5V and 80A output is designed for professional lighting installations with LED strips, advertising panels, or surveillance systems. The aluminum housing with IP52 protection rating allows outdoor mounting with resistance to frost and humidity, and the multiple terminals ensure simultaneous connection of multiple consumers without additional distribution.
What you get with this product
- Real power of 400W with 80A current — sufficient for 80 meters of 5W/meter LED strip or complex installations
- Quick outdoor mounting thanks to IP52 rating and integrated mounting system, without the need for additional protective enclosures

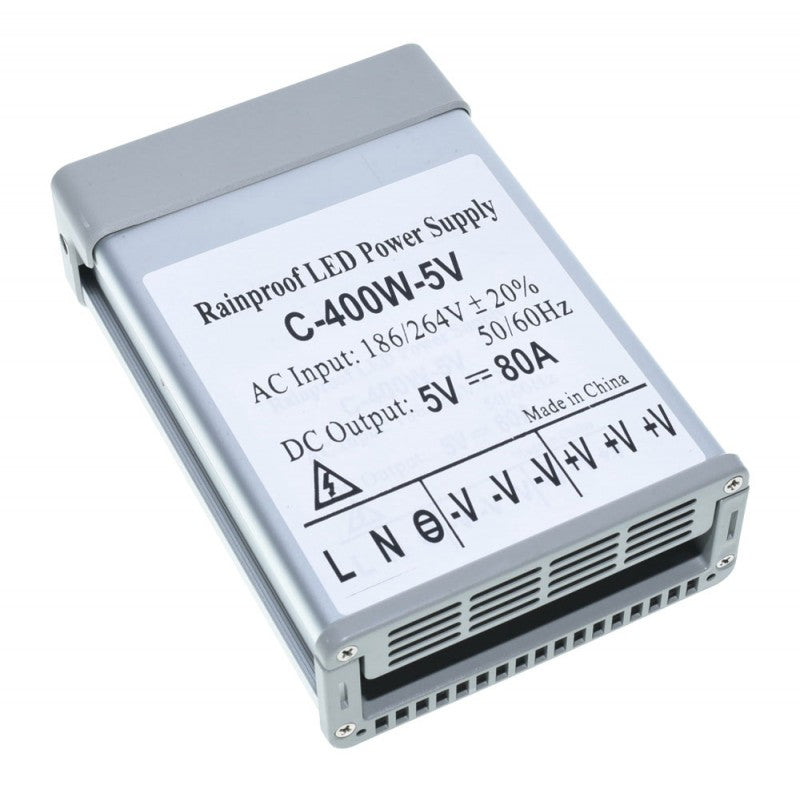

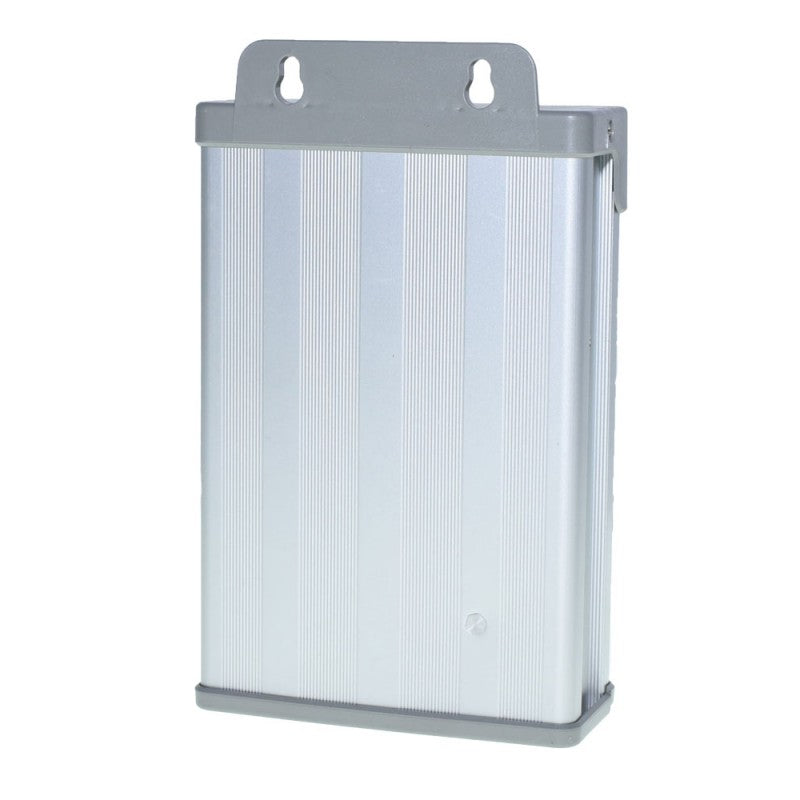

- Aluminum casing with efficient passive cooling — operates silently and dissipates heat without fans that can break down
- Multiple output connection terminals — directly connect multiple LED strip segments without separate distributors
- Built-in overload and short-circuit protection — your installation remains safe even in case of malfunction
- Universal input 186-264V AC with ±20% tolerance — operates stably even in areas with unstable voltage
How it works and how to install it

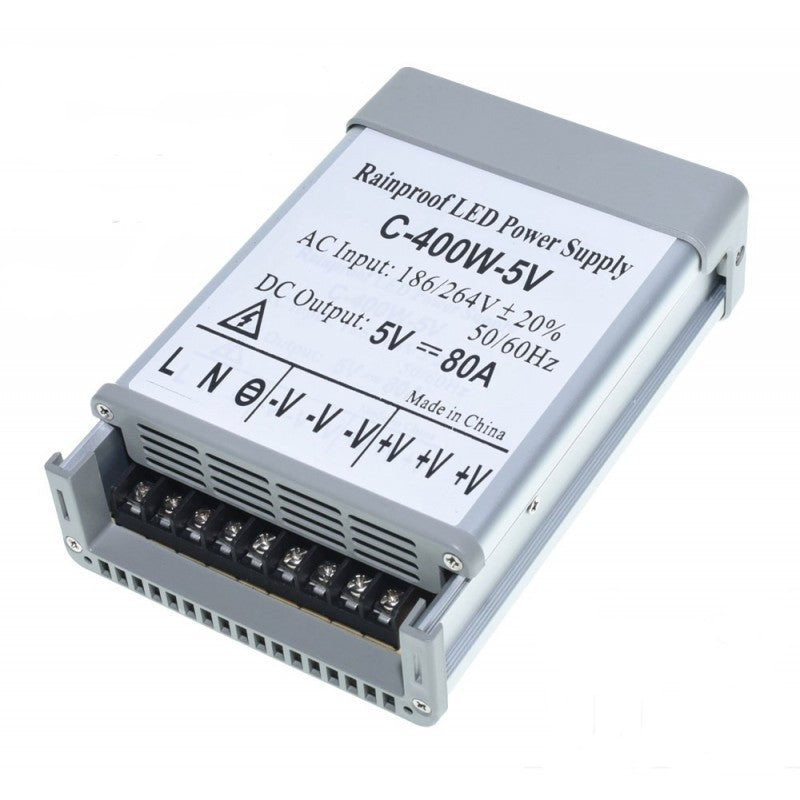

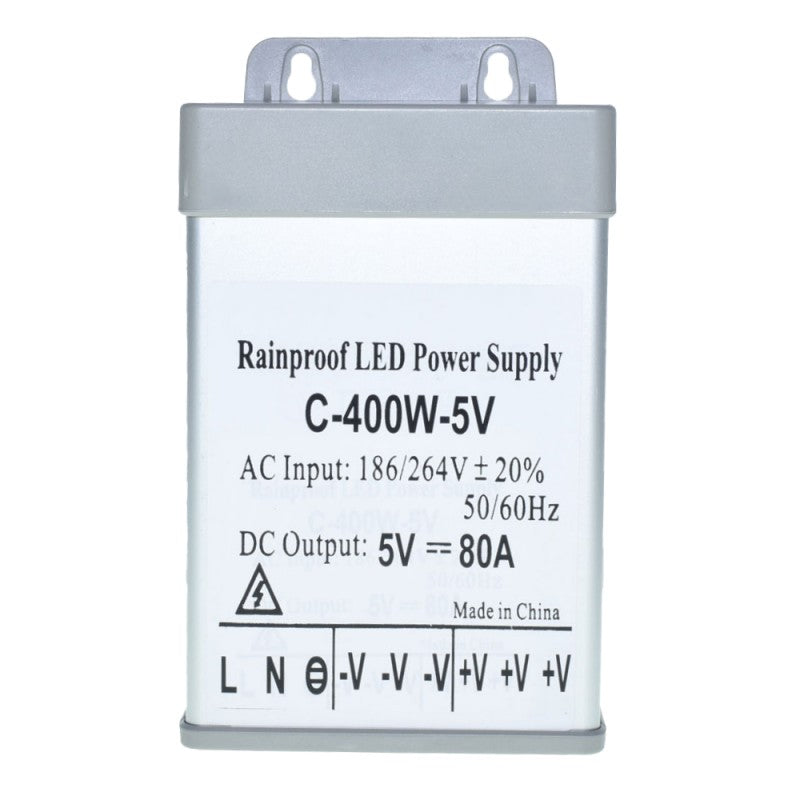

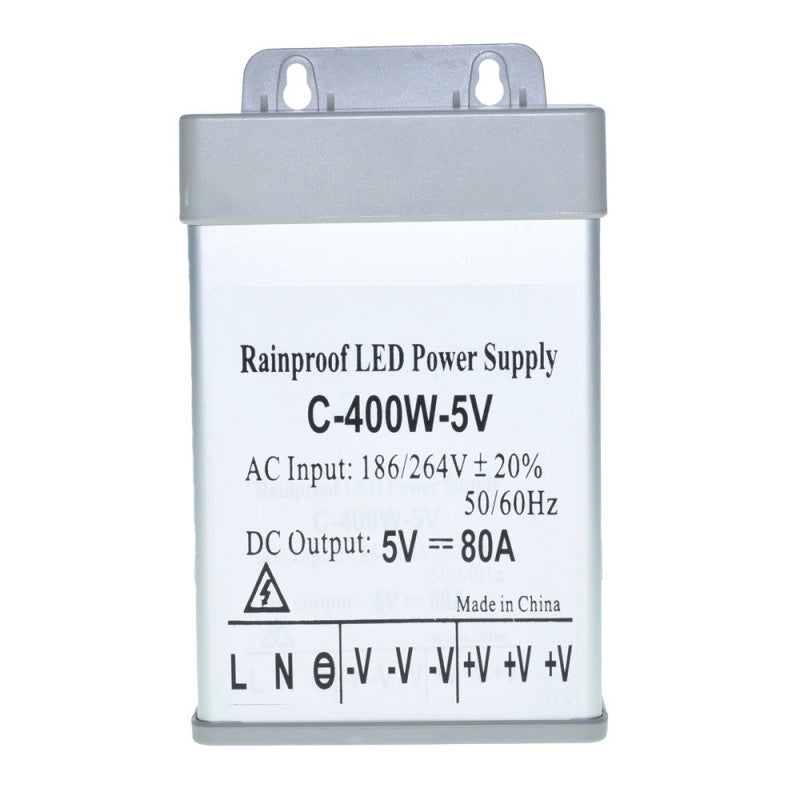

The power supply converts the 220V AC mains voltage into a stable 5V DC continuous voltage, necessary for the operation of LED strips and other low-voltage electronic equipment. Installation is done by wall mounting with the included screws, connecting the 220V power cable to the L and N terminals marked on the casing, then connecting the consumers to any of the 6 output terminals marked with -V and +V. The complete connection diagram is printed on the casing.
The upper casing is movable and slides for access to the terminals, then slides back after connection. It does not require advanced technical knowledge, but the 220V connection must be made carefully according to the markings.
Frequently asked questions
Can it stay outside in the rain or does it need to be placed in a box?
The power supply has an IP52 protection rating, it resists frost and humidity, but should not be directly exposed to heavy rain or water jets. It should be mounted under eaves, under advertising panels, or in places protected from direct leaks.
How many meters of LED strip can I power with this power supply?
For a 5V LED strip with a consumption of 5W per meter, you can power approximately 80 meters. For more powerful strips, calculate the total wattage: 400W divided by the consumption per meter of your strip.
Does it make noise during operation or does it have a fan?
It does not have a fan and operates completely silently. The aluminum casing with fins dissipates heat through passive cooling, making it suitable for residential areas or offices.
Technical Specifications
| Model | C-400W-5V |
| Input Voltage | 186-264V AC ±20%, 50/60Hz |
| Output Voltage | 5V DC |
| Maximum Output Current | 80A |
| Maximum Power | 400W |
| Protection Rating | IP52 |
| Housing Material | Aluminum |
| Input Terminals | L / N / Ground |
| Output Terminals | 3x (-V) and 3x (+V) |
| Cooling | Passive, fanless |
| Mounting Type | Outdoor with fixing clamps |
Warranty and Support
The product benefits from a 24-month warranty according to Romanian legislation, covering manufacturing defects. The return policy allows returns within 30 days of receipt if the product
