Power Supply, Outdoor, 12V, 500W, 41.7A, IP52
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 246,99 lei | — |
| 3–4 pcs | 234,64 lei | 5% (−12,35 lei/unit) |
| 5–10 pcs | 222,29 lei | 10% (−24,70 lei/unit) |
| 11+ pcs | 209,94 lei | 15% (−37,05 lei/unit) |

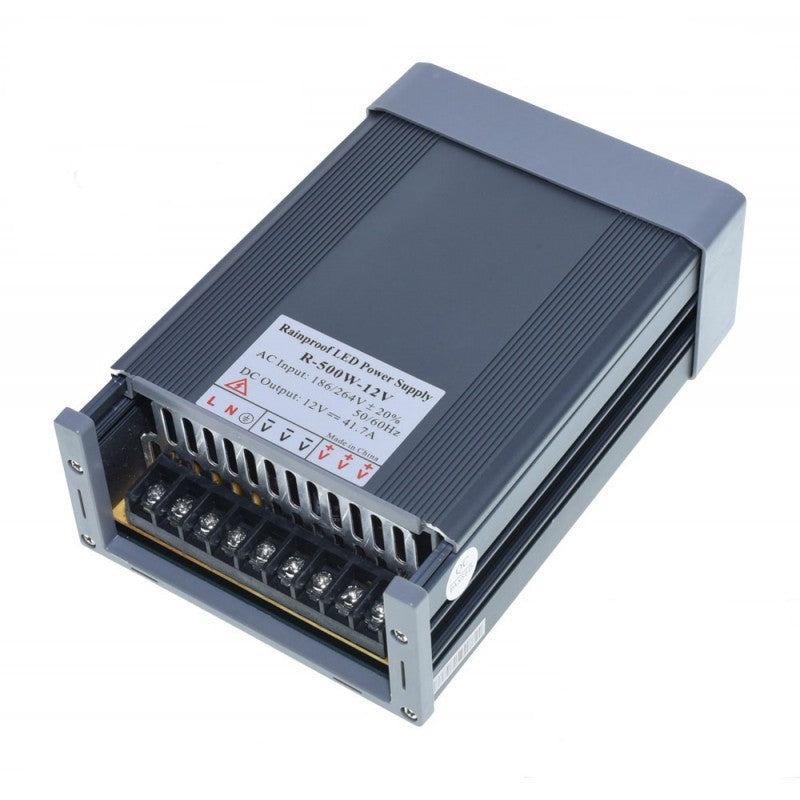

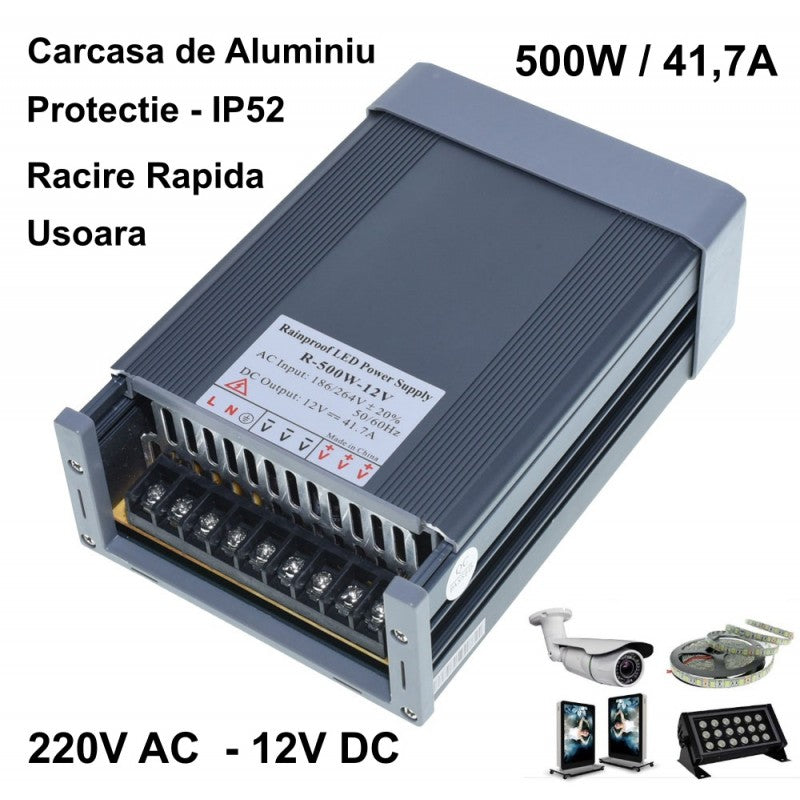

500W 12V IP52 protected outdoor power supply
Powers LED strips, surveillance cameras, or lighting systems with 41.7A stable current, even in humid environments. The aluminum casing ensures rapid cooling and a long lifespan, while installation is simple using the dedicated clamps.
What you get with this product
- IP52 protection for outdoor use in moderately humid areas, resistant to frost and dust

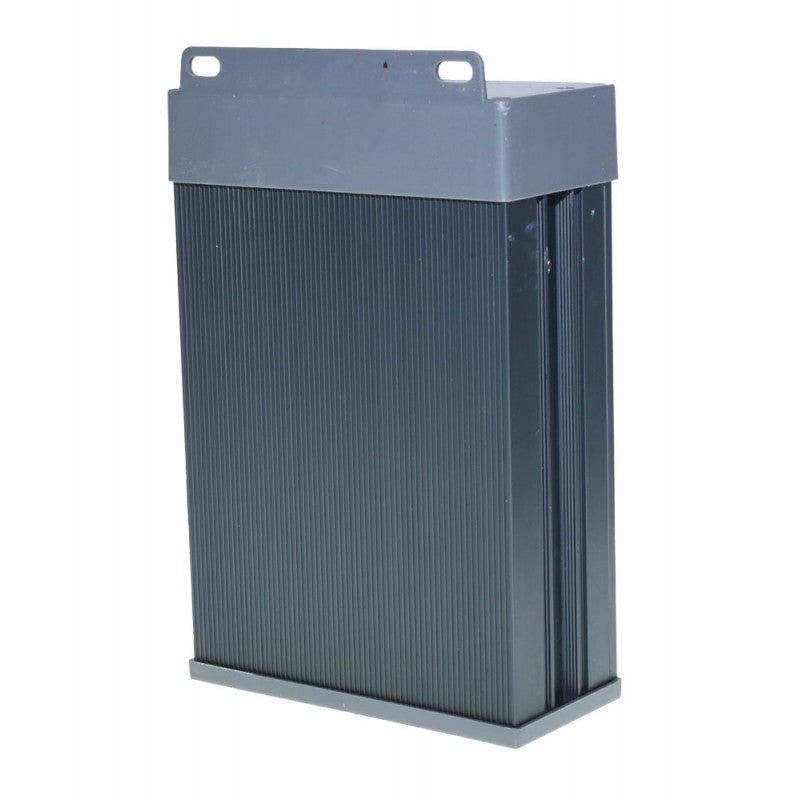

- Rapid cooling through the ribbed aluminum casing prevents overheating even at maximum load
- Constant 12V DC stabilized voltage, without fluctuations that can affect the lifespan of connected equipment
- 41.7A current sufficient to simultaneously power tens of meters of LED strip or multiple surveillance cameras

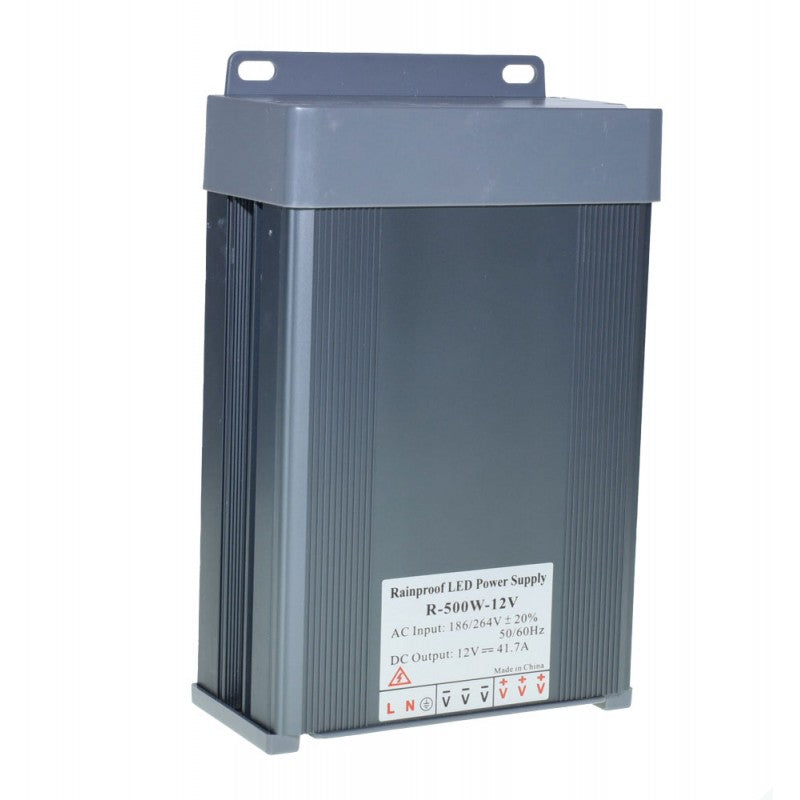

- Simple wall or stand mounting with included mounting clamps and easy access to connection terminals
- Wide compatibility with input voltage between 186V and 264V AC, operates stably even with mains fluctuations
How it works and how to install it

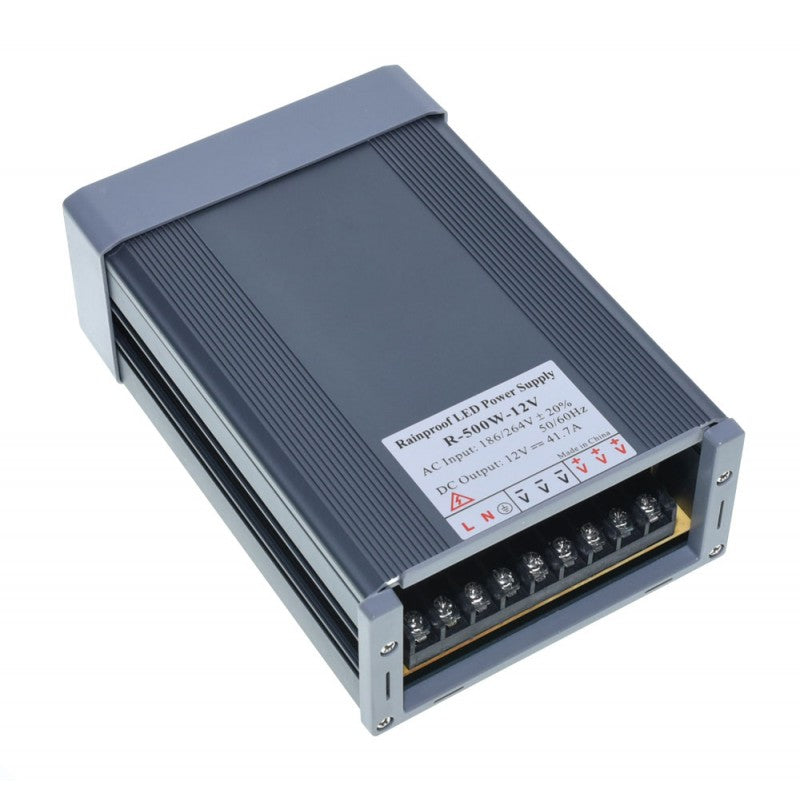

The power supply converts 220V AC mains voltage into stabilized 12V DC using a transformer and filtering system. You connect the power wires to the L/N terminals and the ground to the terminal marked with I, and you connect your equipment to the -V and +V output terminals. The casing has a sliding cover for quick access to all connections.
The connection diagram is clearly marked on the casing — just follow the markings, tighten the terminals with a screwdriver, and replace the cover. The mounting clamps allow for attachment to any stable surface in under 10 minutes.
Frequently asked questions
Can it stay outside all winter or does it need to be sheltered?
IP52 protects it from frost, dust, and moderate humidity, but not direct rain or snow. Mount it under an eave or in a protective enclosure for full exposure to the elements.
How many meters of LED strip can I power with 41.7A?
It depends on the consumption of your strip. For example, a 12V LED strip with 14W/meter consumes about 1.2A/meter, so you can power over 30 meters from a single 500W power supply.
Does the casing get very hot during continuous operation?
The aluminum casing with cooling fins rapidly dissipates heat. At normal load, it remains warm to the touch, not hot. Ensure free ventilation around the power supply for optimal performance.
Technical specifications
| Input voltage | 186-264V AC, 50/60Hz |
| Output voltage | 12V DC |
| Maximum current | 41.7A |
| Power | 500W |
| Protection rating | IP52 |
| Casing materials | Aluminum |
| Input terminal block | L / N / I (ground) |
| Output terminal block | 3x -V / 3x +V |
| Cooling type | Passive through aluminum fins |
| Applications | LED strips, surveillance cameras, advertising panels, 12V lighting systems |
Warranty and support
The product benefits from a 24-month warranty according to current Romanian legislation. You have the right to return it within 30 days of receipt, without justification. Delivery is made by express courier throughout the country, with tracking available immediately after dispatch.
