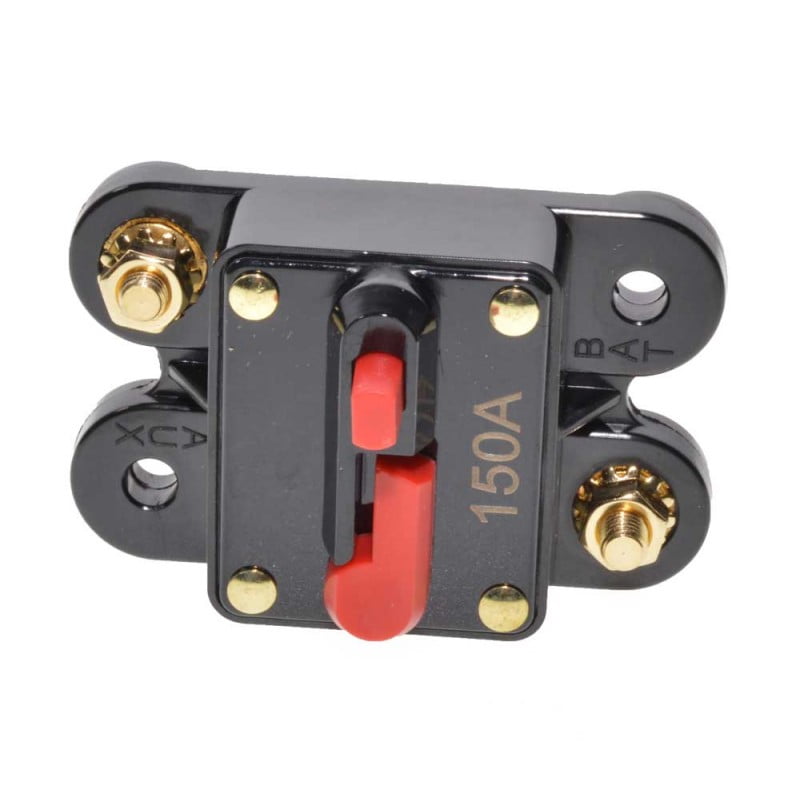

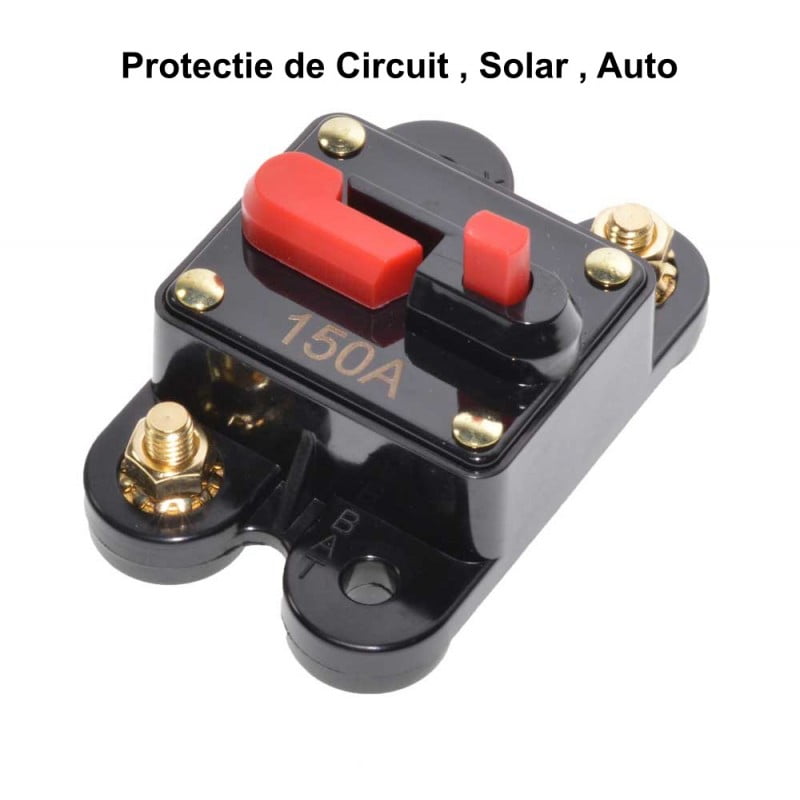

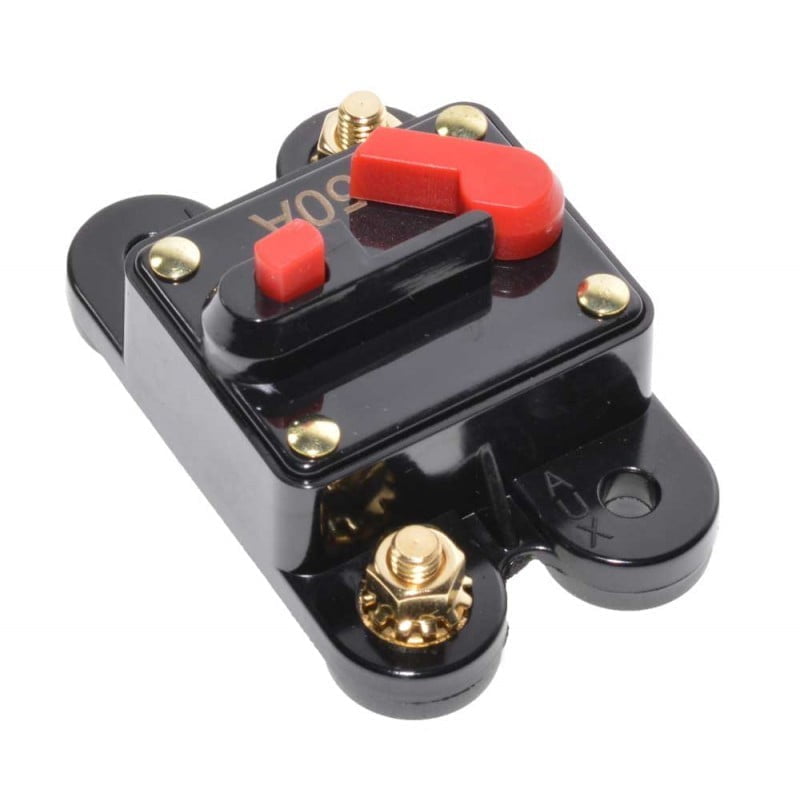

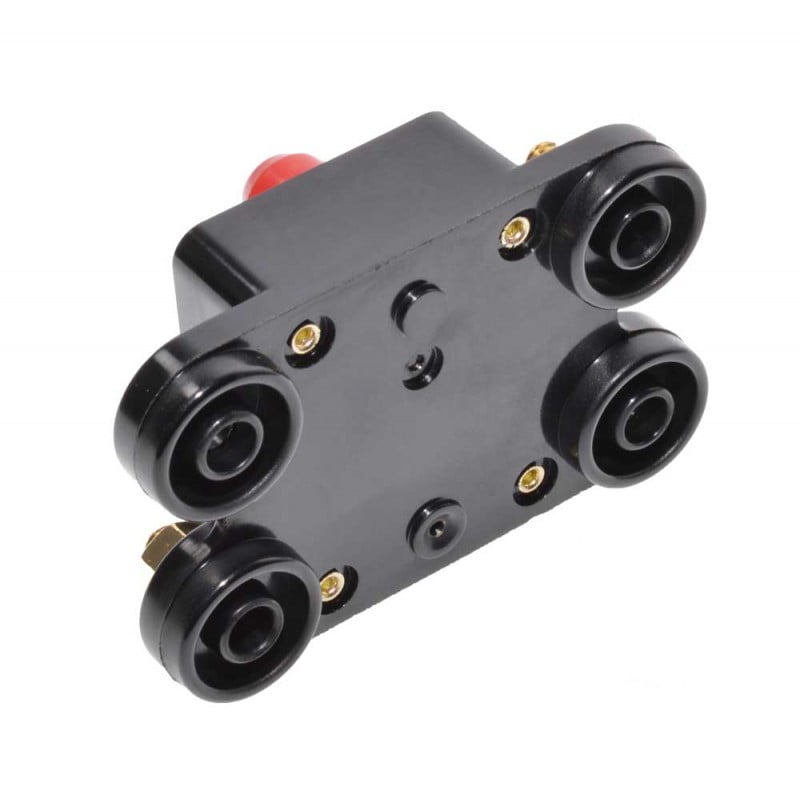

Circuit Breaker with Manual Reset 150A
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 83,99 lei | — |
| 3–4 pcs | 79,79 lei | 5% (−4,20 lei/unit) |
| 5–10 pcs | 75,59 lei | 10% (−8,40 lei/unit) |
| 11+ pcs | 71,39 lei | 15% (−12,60 lei/unit) |
150A resettable car fuse for electrical circuit protection
Protect your car, solar, or marine electrical system without changing classic fuses every time there's an overload. This 150A manual reset circuit breaker automatically interrupts excessive current and restarts with a simple button press. The professional solution for vehicles, solar panels, and 12V-24V DC electrical systems.
What you get with this product
- Instant overload reset — press the red button and restart the circuit in seconds, without replacing components
- Long-term savings — replaces hundreds of consumable classic fuses with a single reusable unit
- IP67 water and dust resistant protection — operates in extreme conditions, from -30°C to +82°C
- Quick installation on any 12V-24V DC system — compatible with car, caravan, boat, and solar panel installations
- Maximum safety with flame-retardant encapsulation — fire-resistant ABS material, rapid interruption at 150A
- Clear status visibility — immediately see if the circuit is protected or interrupted
How it works and how to install it
The fuse is installed in series on the electrical circuit, between the power source and the consumers, using the 2 screw terminals. When the current exceeds 150A, the internal mechanism automatically interrupts the circuit and the red button pops out to the OFF position. To restart, push the button back to the ON position. Installation only requires a screwdriver and connecting the cables to the provided terminals — no special tools or advanced electrical knowledge.
Frequently Asked Questions
Can I use the fuse on a 12V solar installation?
Yes, it works perfectly on 12V-24V DC systems, including photovoltaic panel circuits, batteries, and inverters.
How often can I reset the fuse without damaging it?
The mechanism is designed for hundreds of reset cycles — much more economical than classic fusible fuses.
Will it withstand if I mount it under the hood or outdoors?
Yes, the IP67 protection ensures resistance to dust, water splashes, and humidity, and the operating temperature of -30°C to +82°C covers extreme conditions.
Technical Specifications
| Rated current | 150A |
| Rated voltage | 12V - 24V DC |
| Protection class | IP67 |
| Operating temperature | -30°C ~ +82°C |
| Housing material | Flame-retardant ABS + Metal |
| Dimensions | 80 x 50 x 45 mm |
| Number of terminals | 2 |
| Reset type | Manual, button |
Warranty and support
The product benefits from a 24-month warranty according to Romanian legislation. 30-day return policy. Fast courier delivery throughout Romania.
