Set of 10 Transparent Terminal Blocks 250V-100A
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 132,99 lei | — |
| 3–4 pcs | 126,34 lei | 5% (−6,65 lei/unit) |
| 5–10 pcs | 119,69 lei | 10% (−13,30 lei/unit) |
| 11+ pcs | 113,04 lei | 15% (−19,95 lei/unit) |
Securely connect electrical cables without special tools

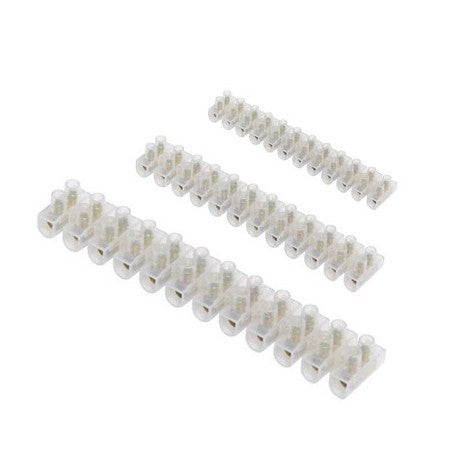

This set contains 10 high-quality transparent terminal blocks, designed for fast and secure electrical connections between wires. They support voltages up to 250V and currents of 100A, making them ideal for residential installations, workshops, or light industrial applications. The transparent material allows for visual verification of the connection, eliminating guesswork during troubleshooting.
What you get with this product
- Secure electrical connections without soldering — screw-tightening, create stable junctions in seconds
- Visually check the quality of the connection — the transparent body shows you if the wire is correctly clamped, without disassembling the connection
- Complete set of 10 pieces — enough for a medium project or spare stock in the workshop
- Compatible with standard wires — accepts conductors up to 35mm, suitable for most household installations
- Thermal and mechanical resistance — supports loads up to 100A without overheating or deformation
- Save time on troubleshooting — quickly identify faulty connections through the transparent casing
How it works and how to install
The terminal block works by mechanical tightening: unscrew, insert the stripped end of the wire into the compartment, then tighten the screw until the wire is secure. The transparent body allows you to see if the conductor is correctly clamped before closing the electrical panel. Installation does not require special tools — just a flat-head screwdriver. You can connect wires of different cross-sections in the same terminal block, and the modular construction allows for quick separation of segments.
Frequently Asked Questions
Can I use the terminal block for outdoor cables?
It is not recommended for unprotected outdoor use. The terminal block does not have an IP rating and must be installed in dry environments, in junction boxes or electrical panels.
What is the maximum cable cross-section I can connect?
Each segment accepts conductors up to 35mm in diameter, compatible with 2.5-6mm² wires used in standard installations.
Can the terminal blocks be separated into smaller segments?
Yes, the body can be easily cut with a utility knife to obtain the desired length, depending on the number of connections required.
Technical specifications
| Maximum voltage | 250V |
| Maximum current | 100A |
| Connector type | Screw terminal strip |
| Terminal size | 35mm |
| Material | Transparent polycarbonate |
| Set quantity | 10 pieces |
| Mounting type | Direct wire-to-wire connection |
| EAN Code | 0781499707174 |
Warranty and support
The product benefits from a 24-month warranty in accordance with Romanian legislation. You have the right to return the product within 30 days of purchase. Delivery is fast via national courier, with the option of cash on delivery.
