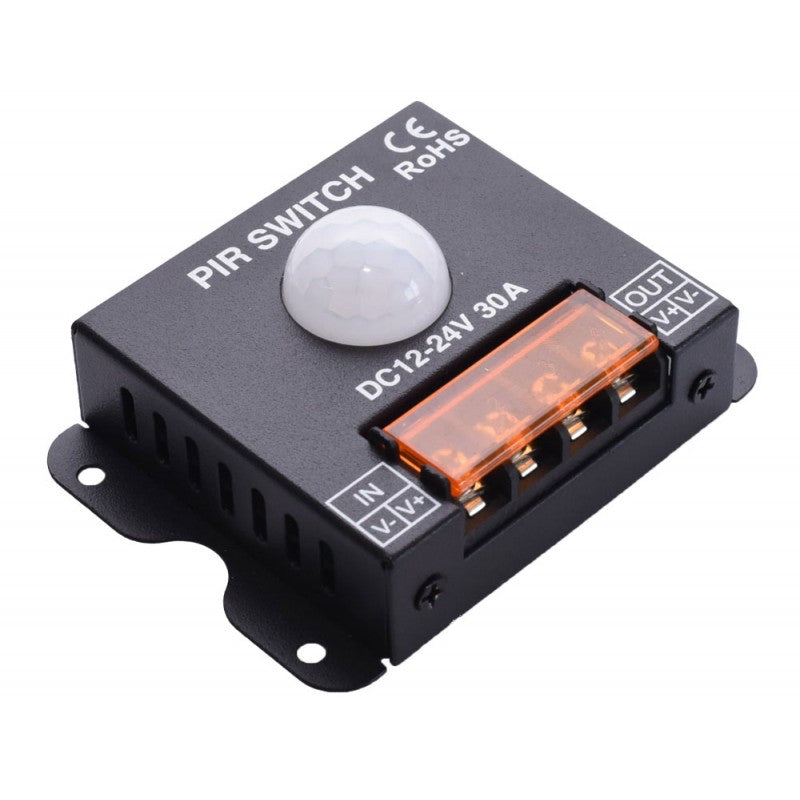

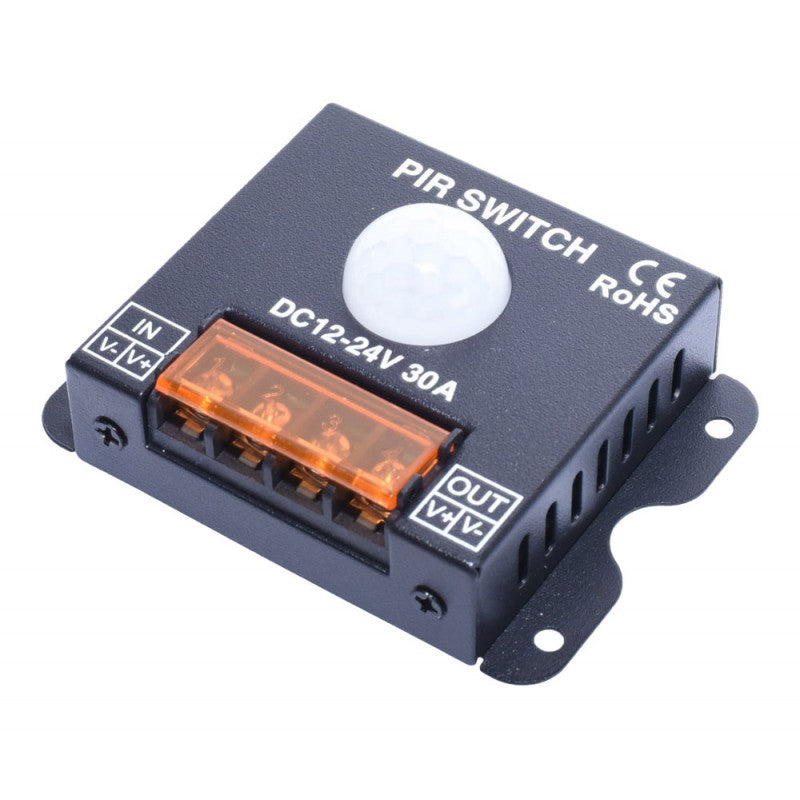

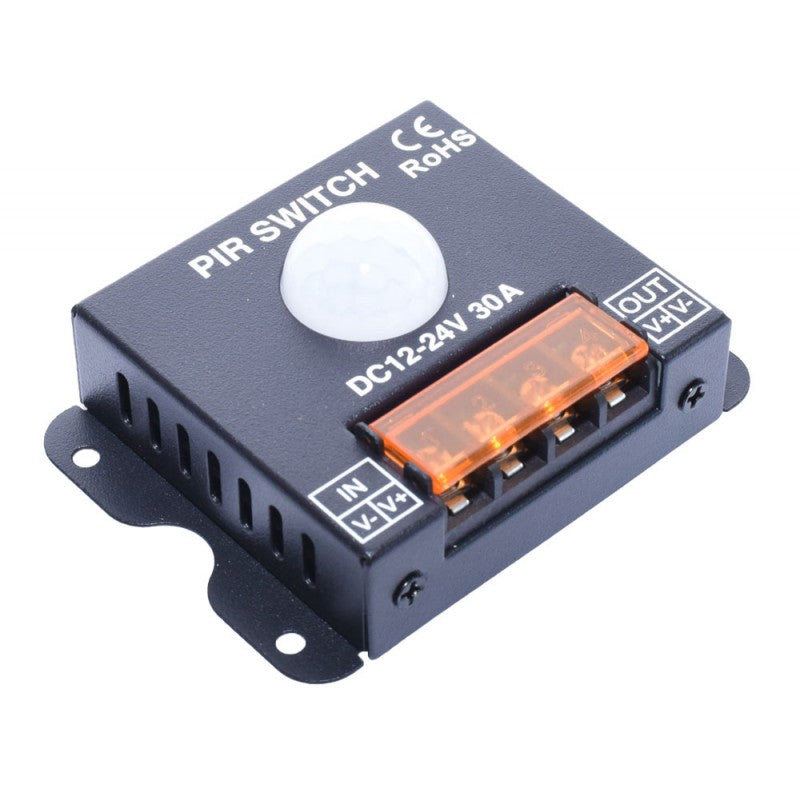

PIR-30 Sensor Motion Switch 24V/30A
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 98,99 lei | — |
| 3–4 pcs | 94,04 lei | 5% (−4,95 lei/unit) |
| 5–10 pcs | 89,09 lei | 10% (−9,90 lei/unit) |
| 11+ pcs | 84,14 lei | 15% (−14,85 lei/unit) |

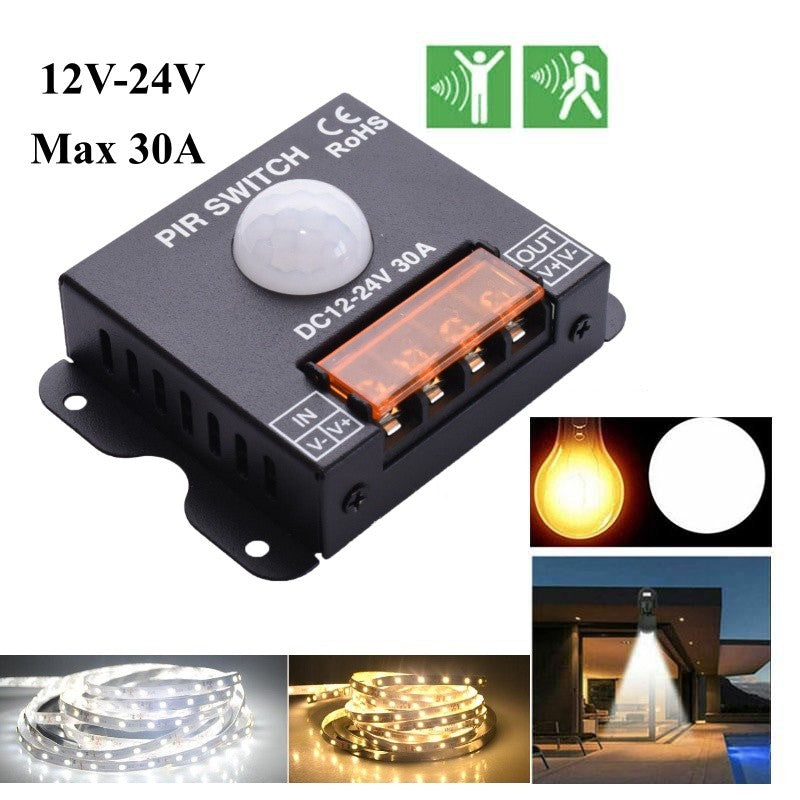

Smart PIR Sensor for Automatic LED Lighting
This PIR-30 motion sensor switch automatically turns LED lighting on and off when presence is detected, saving energy and extending the lifespan of your installation. Compatible with 12V-24V systems, it supports loads up to 30A and installs without complex modifications to your existing electrical setup.
What you get with this product
- Real savings on your electricity bill by automatically turning on only when needed, without wasted energy at night
- Simple installation via direct connection between the power supply and 12-24V LED strips or light fixtures, no advanced electrical knowledge required
- Reliable motion detection up to 5 meters away, ideal for stairs, hallways, garages, or storage rooms
- High capacity of 30A frees you from limitations — you can connect multiple LED strips or light fixtures simultaneously
- Adjustable delay time between 20 seconds and 10 minutes, tailored exactly to your usage needs
- Compact housing with mounting holes and CE/RoHS certifications guarantees long-term safety and durability
How it works and how to install

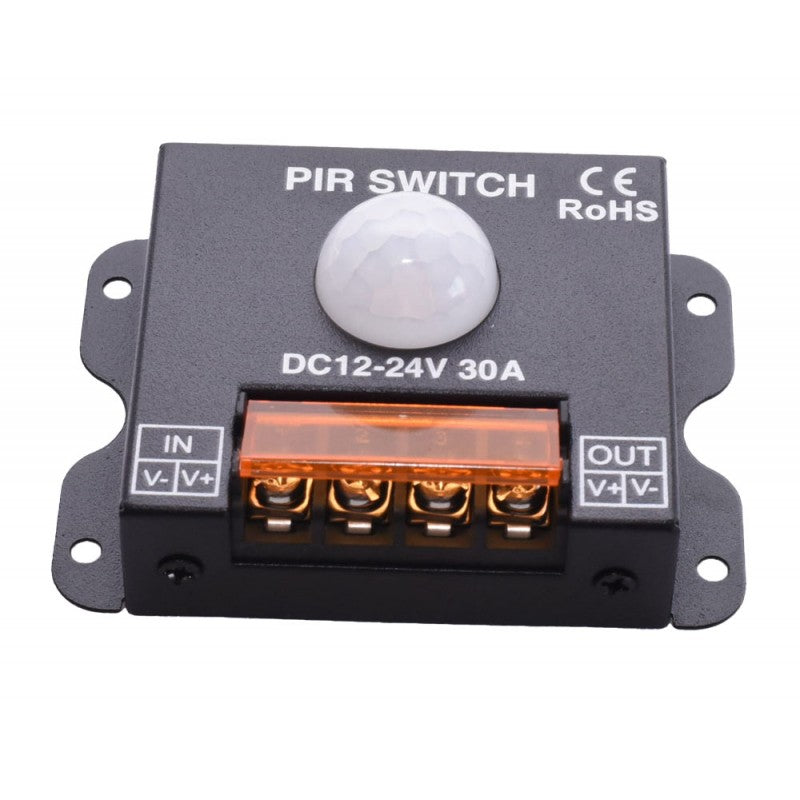

The PIR-30 sensor is mounted between the DC power source and the LED lighting loads. You connect the input cables to the 12-24V source, and the output goes directly to LED strips or spotlights. Fix the module to a stable surface using the four holes in the corners. When it detects motion, it automatically switches the closed circuit and turns on the light for the time interval set by the adjustment button.
Frequently Asked Questions
Does it work with both 12V and 24V LED strips?
Yes, the sensor accepts voltages between 12V and 24V, making it compatible with most DC LED systems.
What is the detection range?
The sensor detects motion up to 5 meters away, effectively covering spaces such as hallways, stairs, or garage entrances.
Can I adjust how long the light stays on?

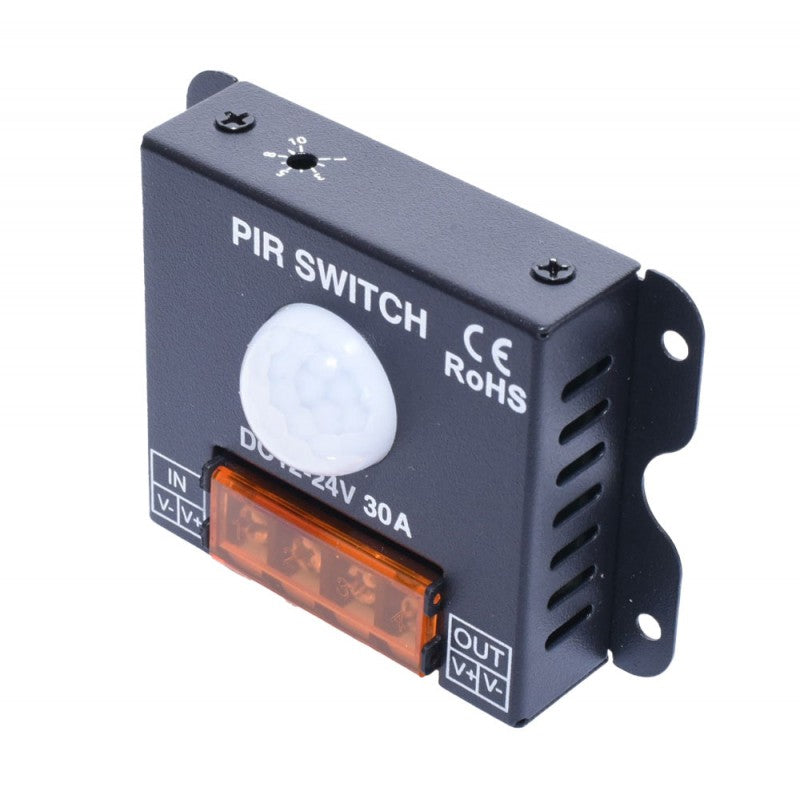

Yes, the delay time is continuously adjustable between 20 seconds and 10 minutes using the integrated button on the module.
Technical Specifications
| Model | PIR-30 |
| Supply voltage | DC 12-24V |
| Maximum current | 30A |
| Detection distance | ≥ 5m |
| Adjustable delay time | 20s - 10min |
| Contact | 2 inputs / 2 outputs |
| Operating temperature | -20°C / +70°C |
| Dimensions | 85 x 62 x 35mm |
| Housing material | Plastic and metal |
| Certifications | CE, RoHS |
Warranty and Support
The product comes with a 24-month warranty in accordance with current Romanian legislation. You can return the product within 30 days if it does not meet your expectations. Fast delivery nationwide via partner courier.
