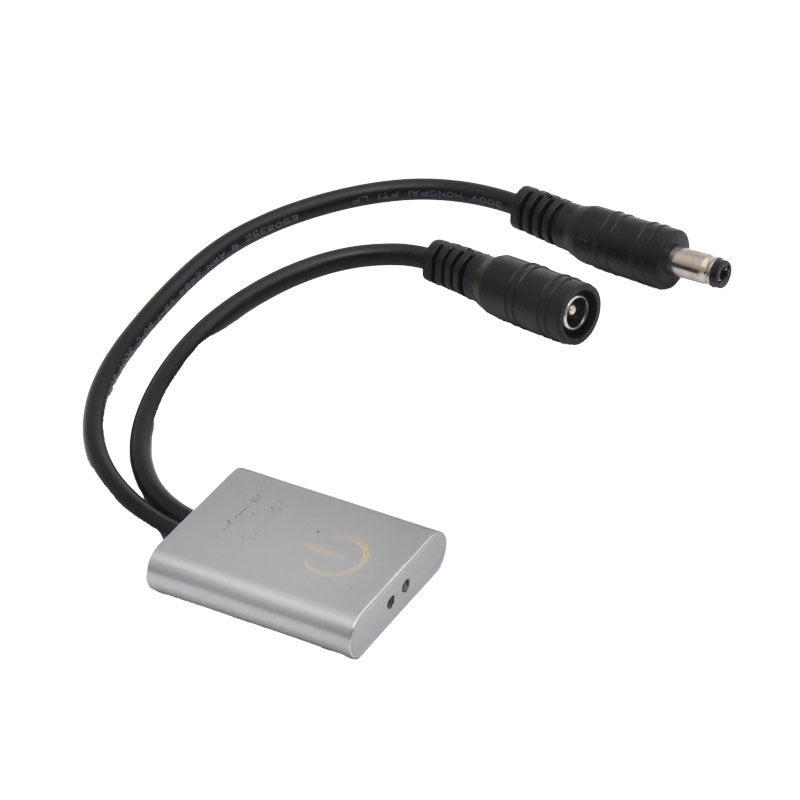

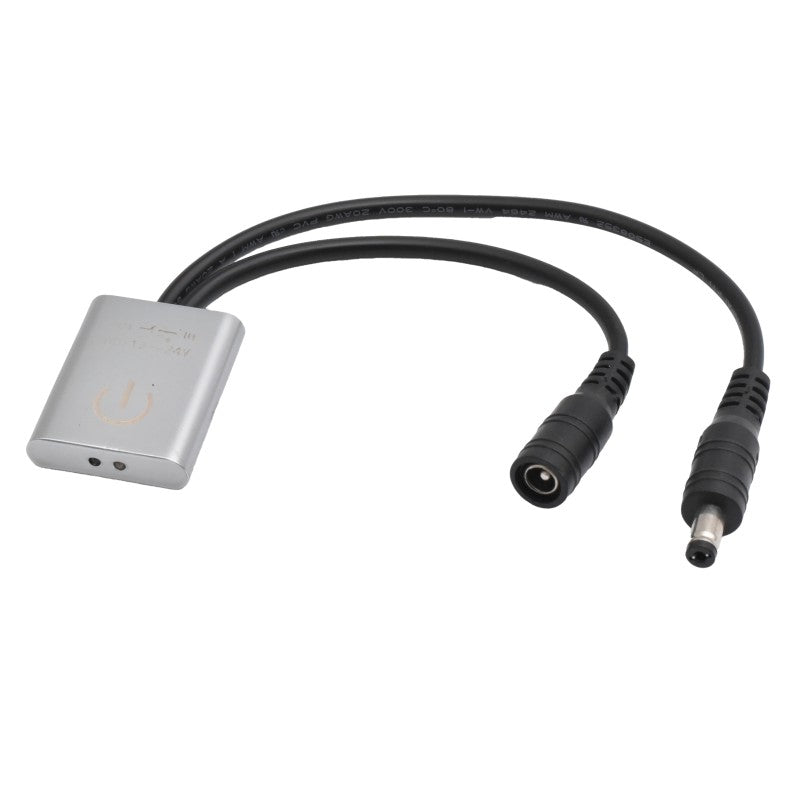

Motion Sensor for LED Strip, IR Switch, 3A, 12V/24V
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 57,99 lei | — |
| 3–4 pcs | 55,09 lei | 5% (−2,90 lei/unit) |
| 5–10 pcs | 52,19 lei | 10% (−5,80 lei/unit) |
| 11+ pcs | 49,29 lei | 15% (−8,70 lei/unit) |
IR switch for 12V/24V furniture LED strips

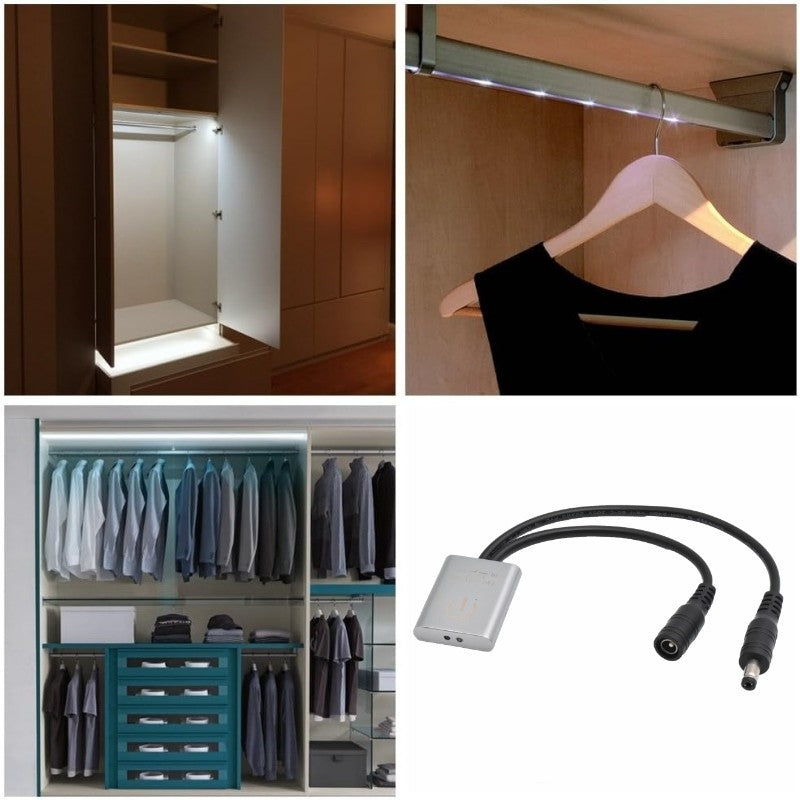

The infrared furniture sensor transforms any cabinet, drawer, or shelf into an automatically lit space, without buttons and without complicated wiring. Compatible with 12V and 24V LED strips, it detects presence at a distance of 3 to 15 cm and instantly switches on the light. The ideal solution for interior furniture lighting, where classic switches are out of place and impractical.
What you get with this product
- Light turns on automatically when the cabinet door opens, without fumbling for a switch in the dark
- Compatible with both 12V and 24V DC, it connects directly to the existing LED strip power supply
- Tool-free installation in less than 5 minutes — 3M double-sided adhesive tape included in the package
- Compact aluminum design, only 8 mm thick, discreetly hidden on the furniture frame without affecting its appearance
- Supports a current of up to 3A, sufficient to control LED strips of usual lengths in wardrobes and cabinets
- Adjusted IR detection at 3-15 cm, the optimal distance for cabinet doors, eliminating false triggers from outside
How it works and how to install it

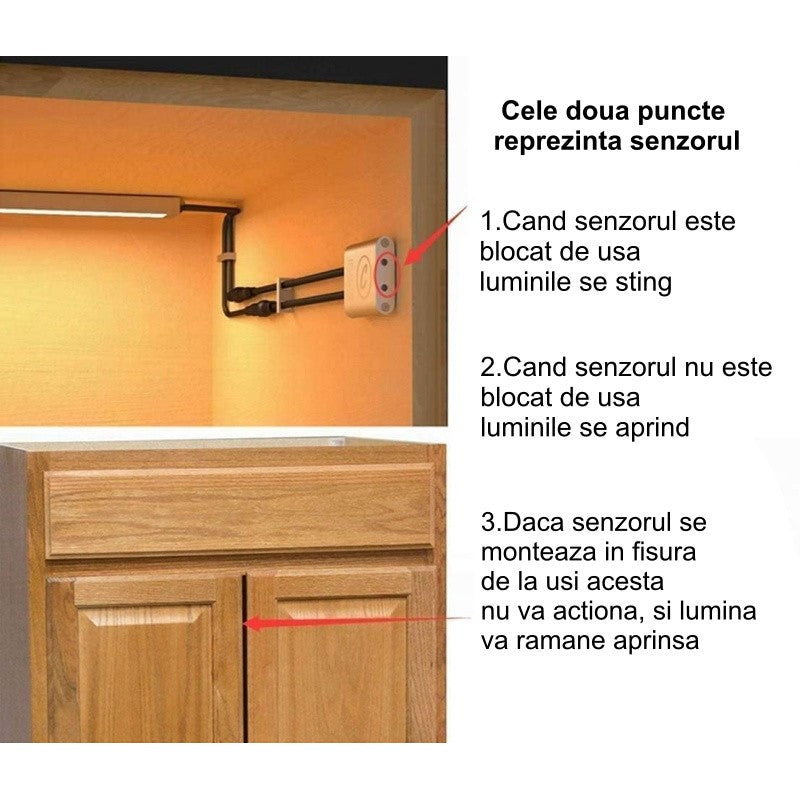

The sensor connects in series between the DC power source and the LED strip, via standard DC barrel connectors included on both cable ends. When an object or hand approaches less than 15 cm from the IR sensor, the circuit closes and the light turns on instantly; upon removal, it turns off automatically. Installation consists of attaching the sensor to the inner frame of the door or to the cabinet wall using the 3M tape from the package, followed by connecting the cables — no drilling, no tools required.
Frequently asked questions
Does this sensor work with any 12V LED strip?
Yes, it is compatible with any 12V or 24V DC powered LED strip, provided that the current intensity does not exceed 3A — equivalent to approximately 36W at 12V or 72W at 24V.
Does the light turn on by itself if I walk past the cabinet without opening the door?
No, the detection range is 3-15 cm, so the sensor only reacts to direct and close presence, not to movement in the room.
Do I need an electrician for installation?
It is not necessary. The sensor connects plug-and-play to the existing DC source, and attachment to the furniture is done with the 3M adhesive tape included in the package.
Technical specifications
| SKU | Q-14L025 |
| Input voltage | DC 12V / 24V |
| Maximum current | 3A |
| Sensor type | IR (infrared) |
| Detection distance | 3 - 15 cm |
| Input cable length | 148 mm |
| Output cable length | 208 mm |
| Module dimensions | 40 x 30 x 8 mm |
| Connector type | DC barrel (female/male) |
| Attachment | 3M double-sided adhesive tape (included) |

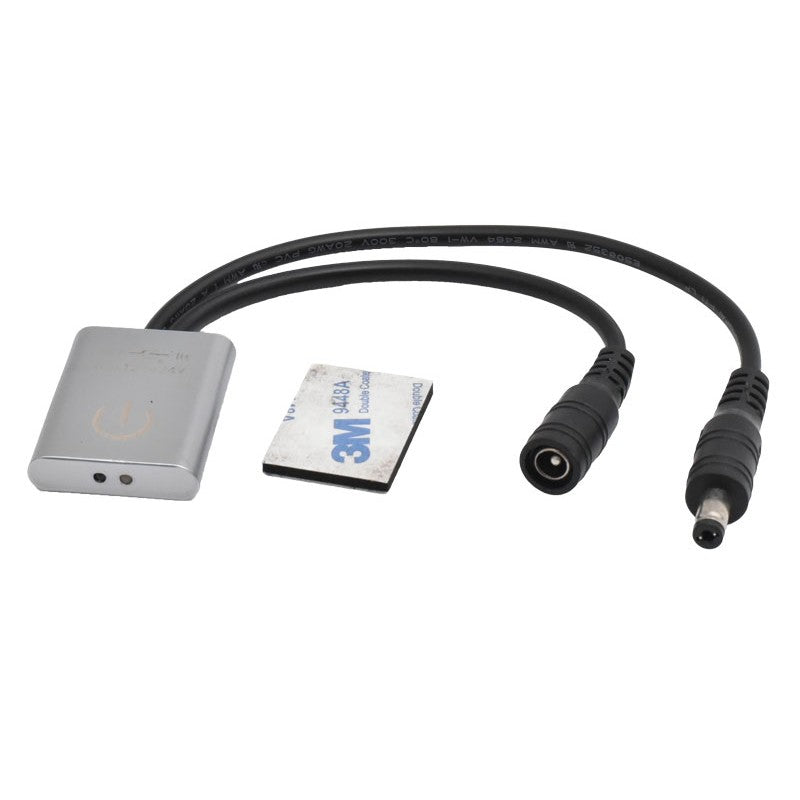

| Package contents | 1 x IR sensor with cables, 1 x 3M adhesive tape |
Warranty and support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. You can return the product within 30 days of delivery, without needing a justification. Delivery is carried out quickly by courier throughout Romania.
