Industrial Relay 48V-DC, 11P, With Socket, 11 Pins
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 30,99 lei | — |
| 3–4 pcs | 29,44 lei | 5% (−1,55 lei/unit) |
| 5–10 pcs | 27,89 lei | 10% (−3,10 lei/unit) |
| 11+ pcs | 26,34 lei | 15% (−4,65 lei/unit) |

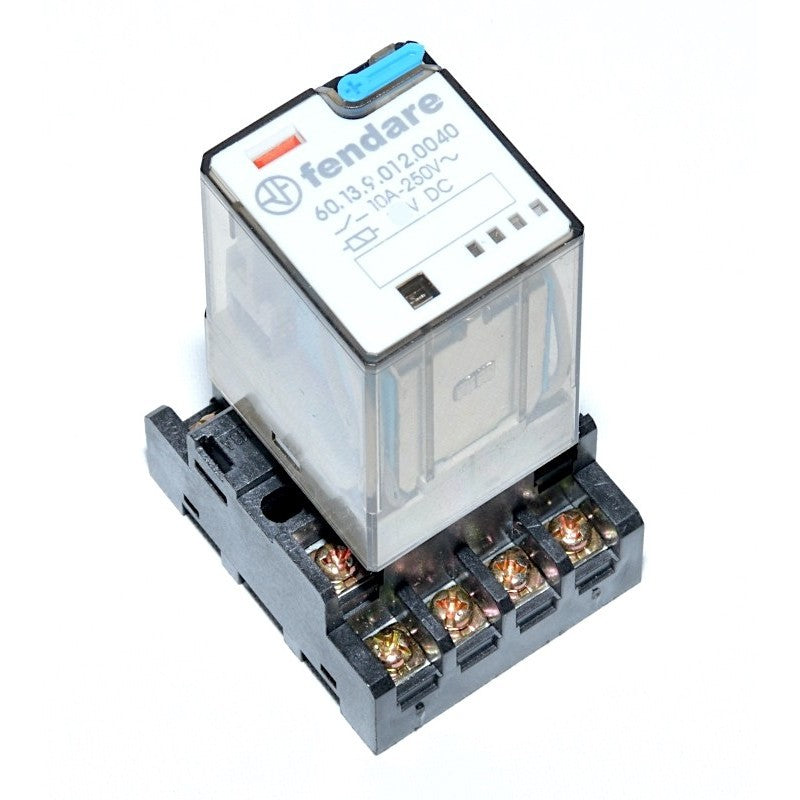

48V DC Industrial Relay with Socket Included
This industrial electromagnetic relay ensures reliable switching of electrical circuits in automated systems, control panels, and industrial equipment. Supplied complete with a mounting socket, it allows for quick replacement without rewiring and offers a professional solution for controlling power circuits up to 10A.
What you get with this product

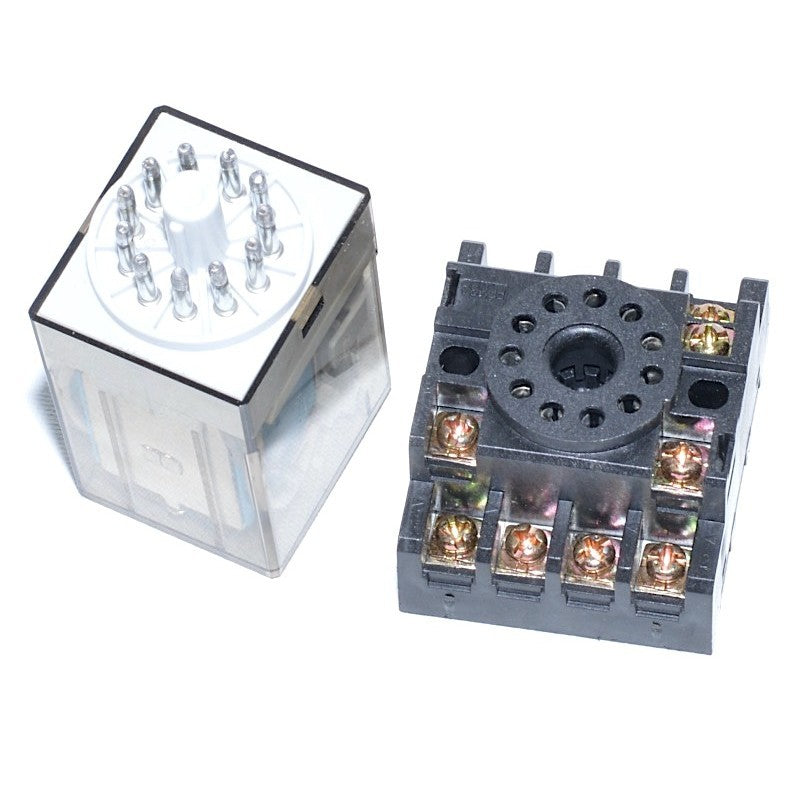

- Quick installation with included socket — change the relay without undoing electrical connections
- Industrial durability — transparent housing allows visual inspection of contacts, detecting wear before failure
- Universal compatibility with 48V DC systems — integrates directly into existing automation panels
- 10A at 250V switching capacity — suitable for controlling small motors, contactors, and industrial lamps

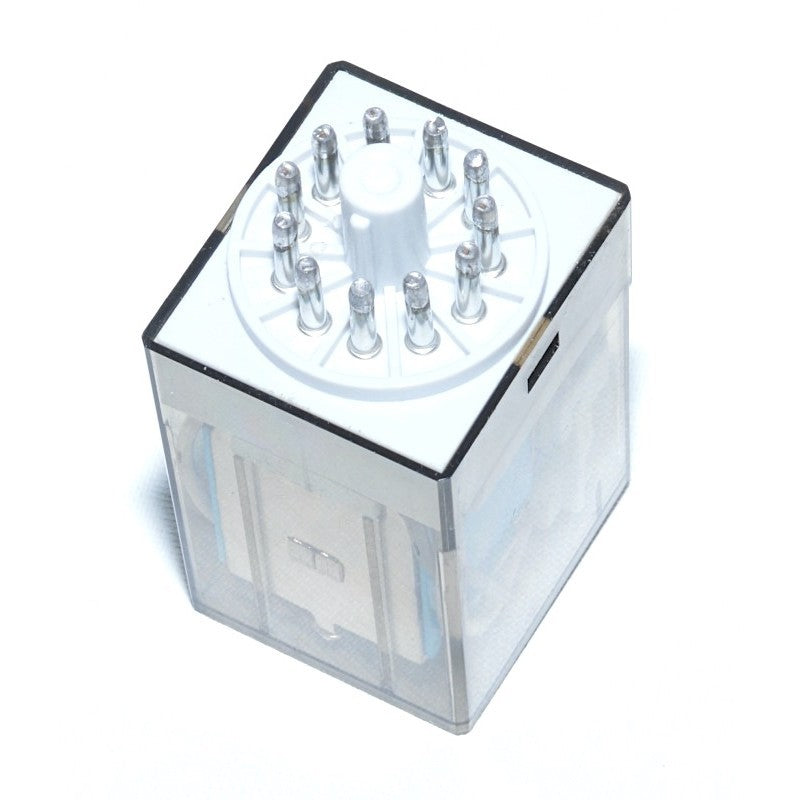

- 11-pin configuration — multiple contacts for complex logic and redundant connections
- Professional modular design — compact dimensions 36.4 x 32.5 x 54.2 mm, space-efficient in electrical cabinet
How it works and how to install it

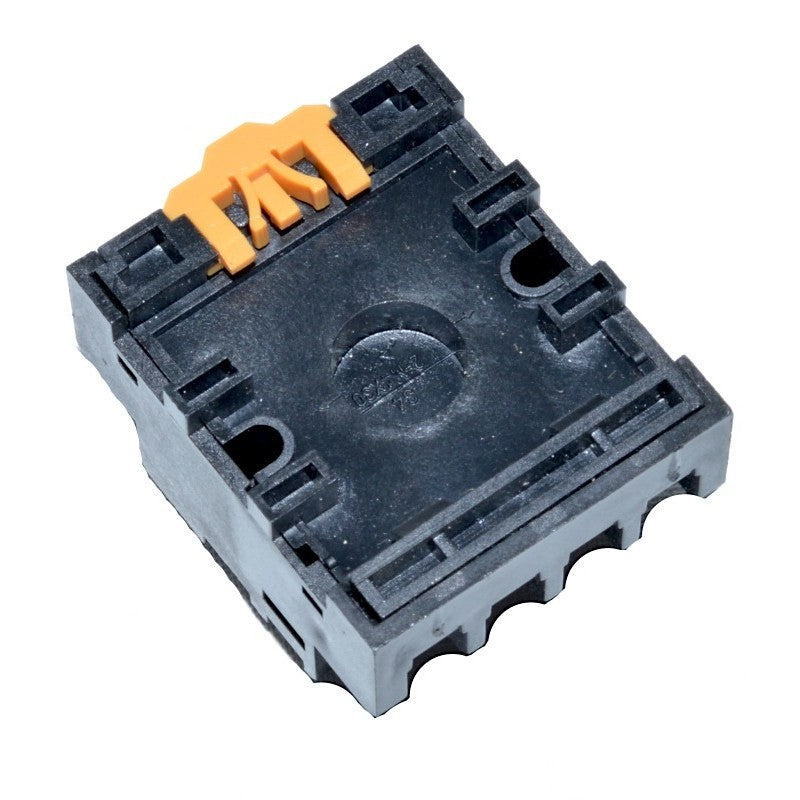

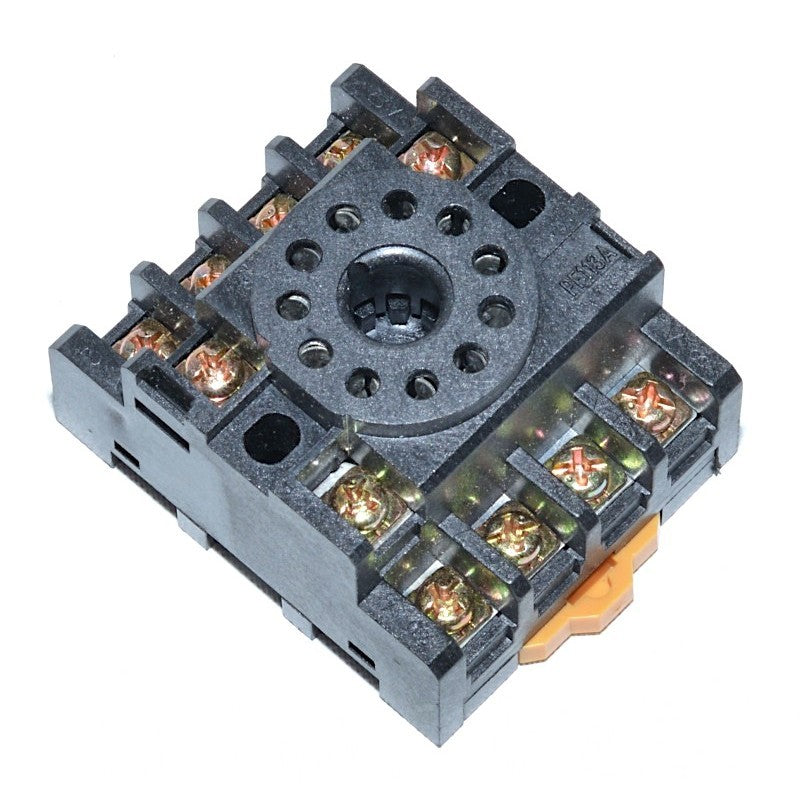

The relay is mounted by fixing the socket on a DIN rail or with screws in the electrical panel. Powering the coil with 48V DC activates the internal contacts, switching the controlled circuit. Connections are made via the socket terminals, without direct intervention on the relay — when worn, simply remove the relay from the socket and install a new one in seconds, without disconnecting cables.
Frequently asked questions
Can I use this relay with AC power instead of DC?
No, this model is designed exclusively for 48V DC. Using it with AC voltage can damage the coil and void the protection.
Is the socket included in the package or does it need to be ordered separately?
The mounting socket is included in the package — you receive the complete set, ready for installation.
What is the maximum current I can switch through the contacts?
The contacts can handle up to 10A at 250V AC. For inductive loads, the use of an arc suppressor is recommended.
Technical Specifications
| Relay type | Industrial electromagnetic |
| Coil voltage | 48V DC |
| Number of pins | 11 pins |
| Maximum contact current | 10A at 250V AC |
| Dimensions | 36.4 x 32.5 x 54.2 mm |
| Housing material | Transparent ABS |
| Mounting type | Socket included, screw or DIN rail mounting |
| EAN | 0781499722443 |
Warranty and Support
The product benefits from a 24-month warranty in accordance with Romanian legislation. 30-day return policy. Fast delivery via national courier. For technical assistance and installation recommendations, contact the CLASSLIGHTS team.
