Industrial Relay 24V-DC / 8P, With Socket, 8 Pin
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 30,99 lei | — |
| 3–4 pcs | 29,44 lei | 5% (−1,55 lei/unit) |
| 5–10 pcs | 27,89 lei | 10% (−3,10 lei/unit) |
| 11+ pcs | 26,34 lei | 15% (−4,65 lei/unit) |

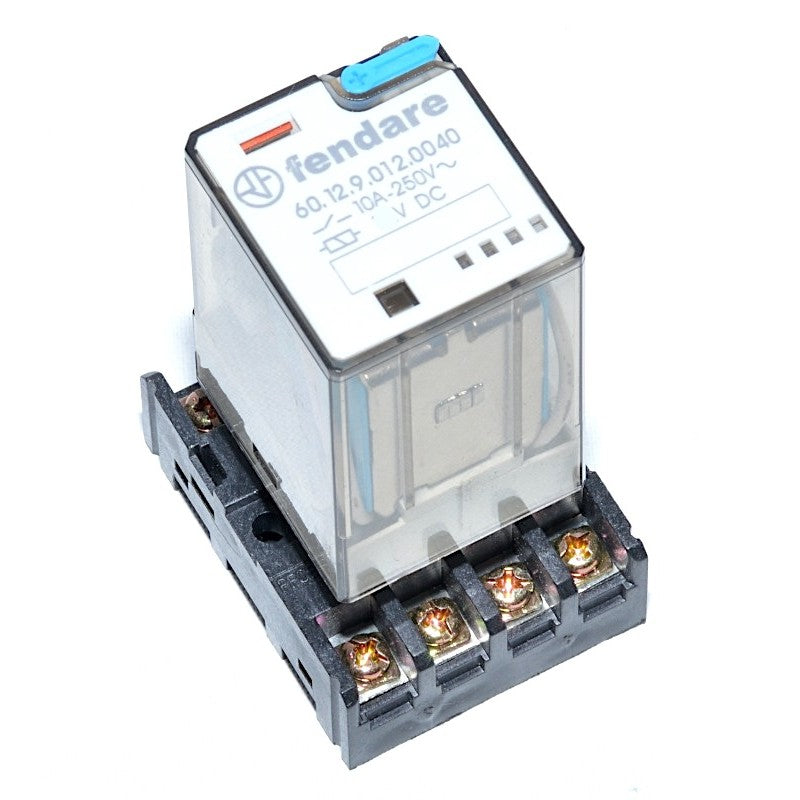

24V DC Industrial Relay with Socket, Safe Switching for Automation
This 8-pin industrial electromagnetic relay ensures reliable switching of electrical circuits in automation systems, control panels, and industrial control systems. Supplied complete with a mounting socket, it allows for quick connection and easy replacement without complex interventions in the installation.
What you get with this product
- Mounting socket included in the package — you can mount and replace the relay without redoing electrical connections

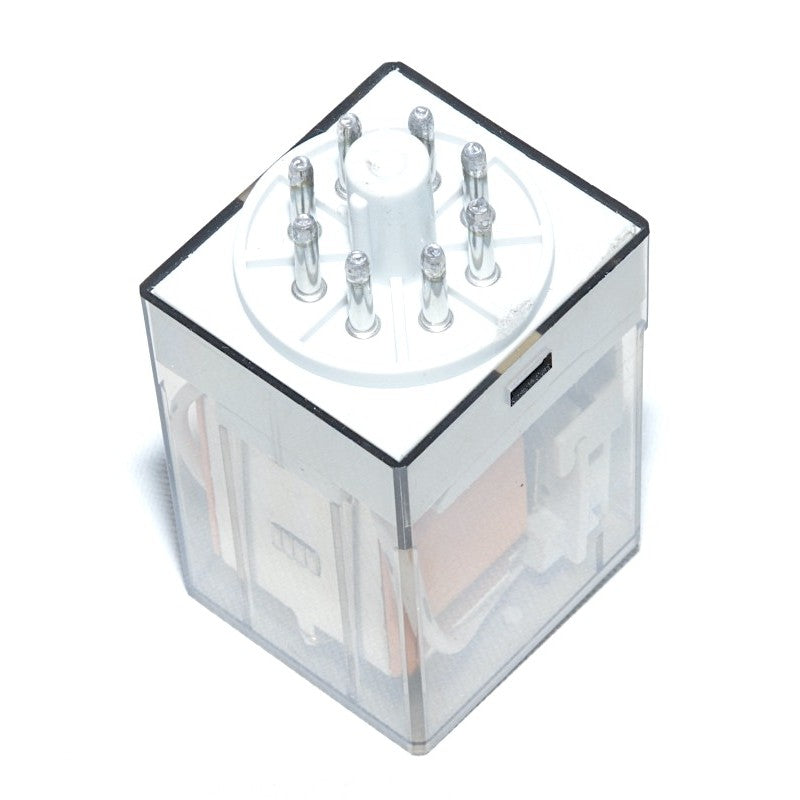

- Transparent casing allowing visual inspection of contact status and switching mechanism
- Switching capacity of 10A at 250V — sufficient for most common industrial applications
- Compact dimensions 36x32x54mm — easily integrated into electrical cabinets and distribution panels
- Industrial reliability with resistance to vibrations and high operating temperatures
- Integrated LED indicator signaling coil status for quick diagnostics
How it works and how to install it

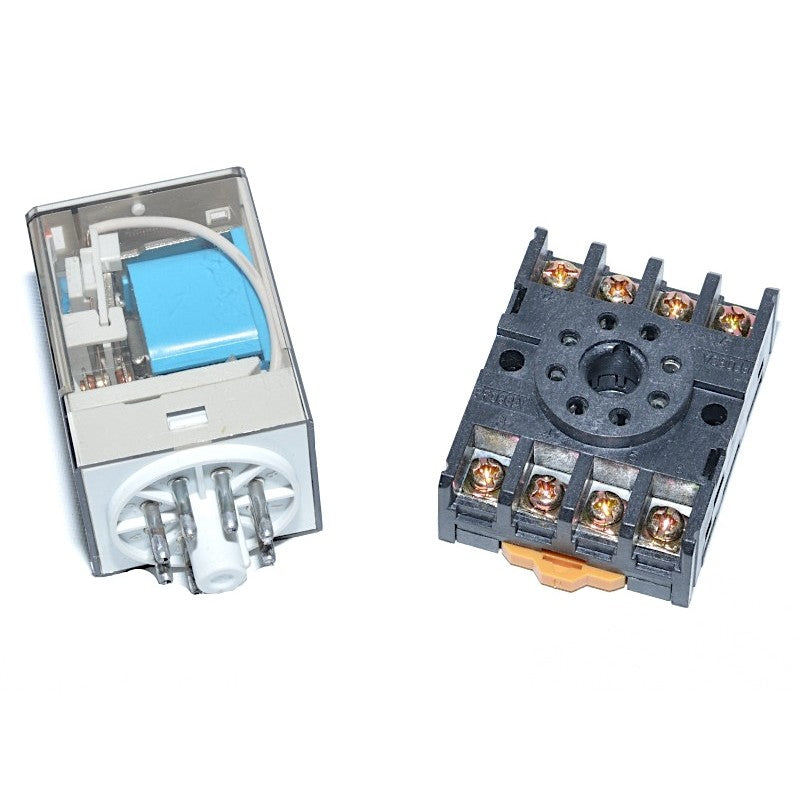

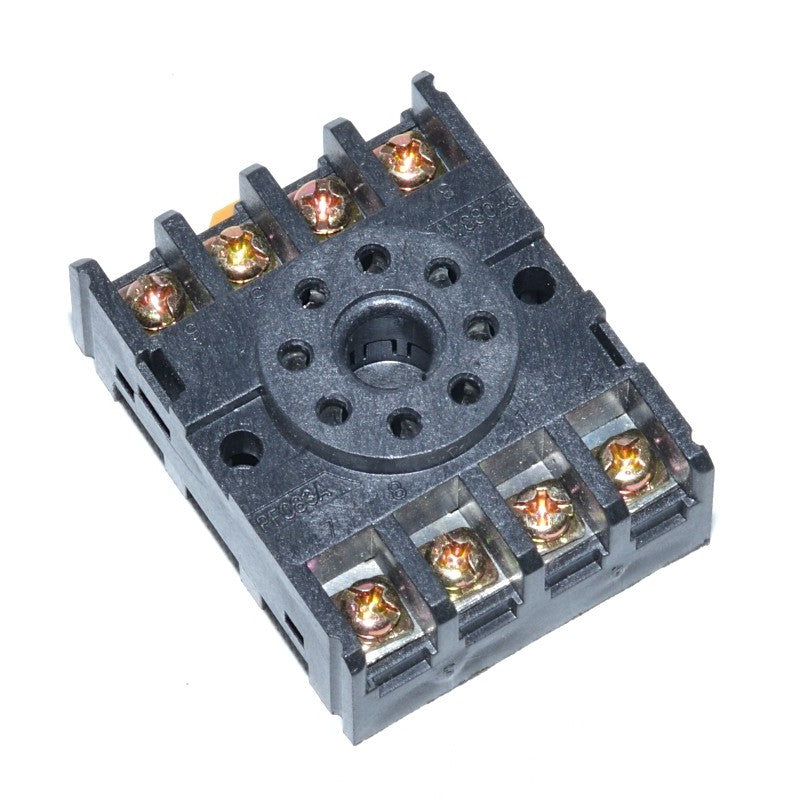

The relay is fixed by direct insertion into the provided socket, which mounts on a DIN rail or with screws in the panel. When 24V DC voltage is applied to the coil, the contacts switch, allowing current to pass through the controlled circuit. Connections are made to the socket terminals, which means you can replace the relay without disconnecting wires — ideal for quick maintenance.
Frequently Asked Questions
Can I use this relay for 230V AC controls?
Yes, the contacts support 10A at 250V AC. Only the coil needs to be powered with 24V DC.
Is the socket included in the price or does it need to be ordered separately?
The socket is included in the package, so you can install the relay immediately.
What type of contact configuration does it have?
The relay has a 2CO (2 changeover contacts) configuration, offering 8 pins for flexible connections.
Technical Specifications
| Coil voltage | 24V DC |
| Maximum contact current | 10A at 250V AC |
| Number of pins | 8 |
| Relay type | Electromagnetic industrial |
| Dimensions | 36.4 x 32.5 x 54.2 mm |
| Casing material | Transparent ABS |

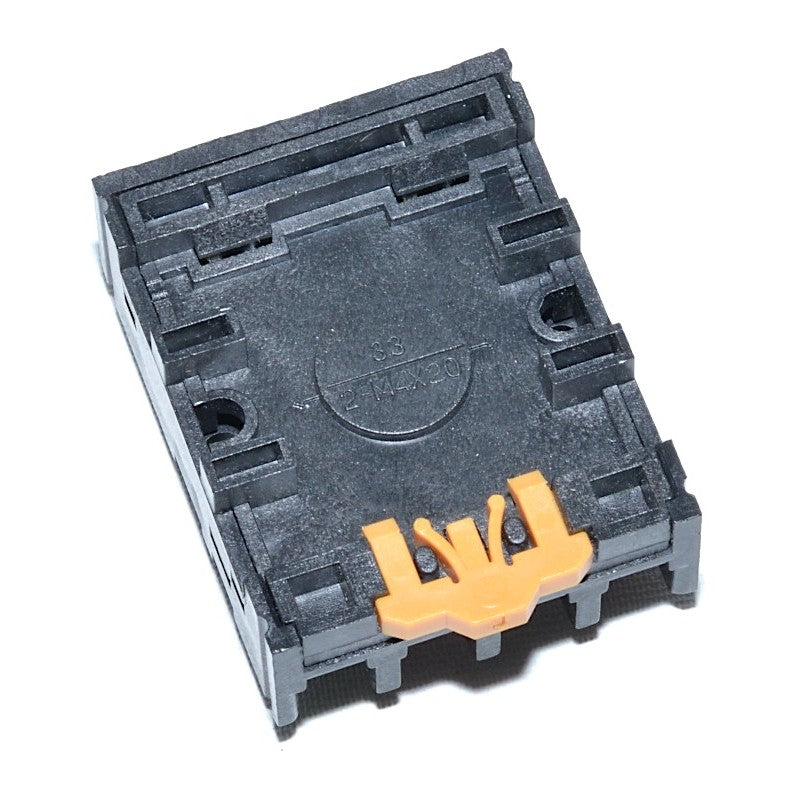

| Mounting type | Socket included, DIN rail mounting or with screws |
| Visual indication | Coil status LED |
| EAN code | 0781499722252 |
Warranty and Support
The product benefits from a 24-month warranty in accordance with Romanian law. 30-day return policy and fast delivery via national courier. For technical assistance regarding compatibility or installation, please contact the CLASSLIGHTS team.
