Timer (Mechanical Timer) 10S/100S/10M/60M
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 50,99 lei | — |
| 3–4 pcs | 48,44 lei | 5% (−2,55 lei/unit) |
| 5–10 pcs | 45,89 lei | 10% (−5,10 lei/unit) |
| 11+ pcs | 43,34 lei | 15% (−7,65 lei/unit) |
Adjustable Mechanical Timer with 4 Time Ranges
Automatically control electrical appliances with precision, without complicated programming. This mechanical time relay offers four timing ranges: 10 seconds, 100 seconds, 10 minutes, or 60 minutes. The ideal solution for automating fans, pumps, irrigation systems, or industrial lighting, directly from the electrical panel.
What you get with this product
- Precise timing with 4 adjustable intervals: quickly choose between seconds or minutes, without complicated electronics
- Standard DIN rail installation: mounts in the electrical panel alongside other components, socket included in the package
- Safe 3A switching: automatically manages small motors, fans, lights, or pumps without risk of overload
- Reliable mechanical operation: no dependence on batteries or electronic memory, setting remains visible on the dial
- Versatility with 8 ST3P type contacts: configure NO or NC connections for various automation scenarios

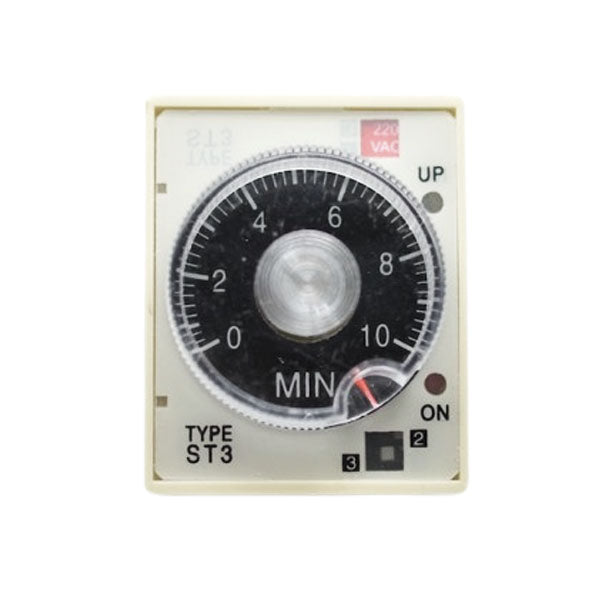

- Intuitive adjustment with a rotary knob: set the desired time and start the cycle with a simple turn, no menu or hidden buttons
How it works and how to install it

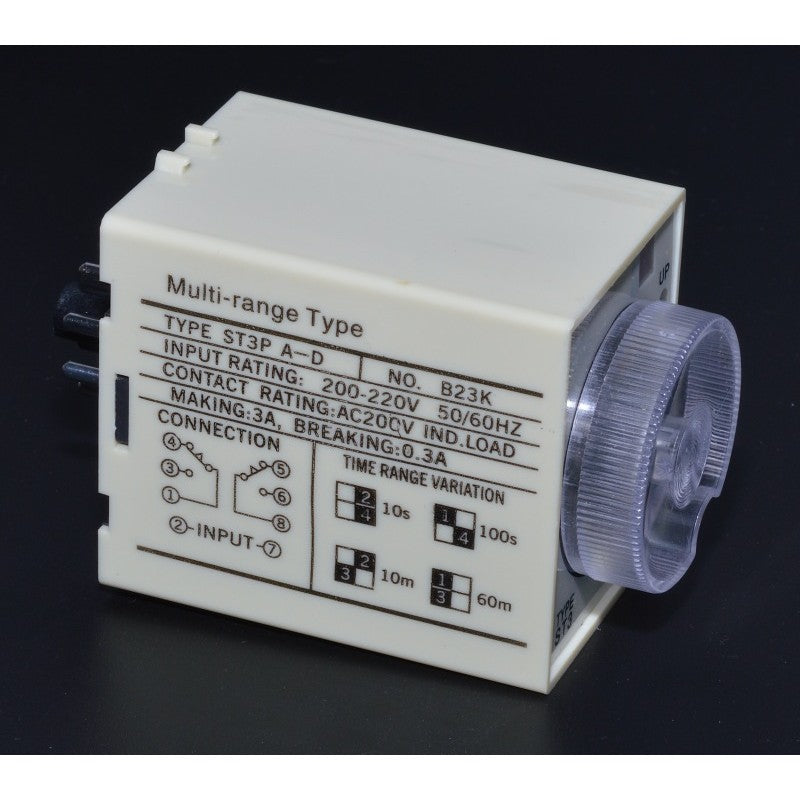

The timer is mounted on the DIN rail in the electrical panel using the included socket, then connected according to the diagram on the casing. You choose the desired time range using the side switch, turn the knob to set the duration, then operate the ON switch to start the cycle. When the set time expires, the relay automatically interrupts the circuit. The mechanical system ensures precision without requiring calibration or maintenance.
Frequently Asked Questions
Can I use the timer for a bathroom fan that needs to stay on for 10 minutes after I leave?
Yes, you set the range to 10 minutes, adjust the dial, and activate ON when you leave. The fan will automatically turn off after the set duration.
Does it need to be reset manually after each cycle?
Yes, the mechanical timer requires manual resetting by rotating the knob and operating the ON switch for each new operating cycle.
Is the socket for DIN rail mounting included?
Yes, the package contains both the time relay and the compatible MF 6950 socket, ready for immediate installation in the electrical panel.
Technical Specifications
| Model | ST3P A-D |
| Supply voltage | 200-220V AC 50/60Hz |
| Switching capacity | 3A |
| Timing ranges | 10s / 100s / 10m / 60m |
| Number of contacts | 8 contacts (NO/NC configurable) |
| Dimensions | 40 x 50 x 80 mm |
| Mounting | DIN rail (MF 6950 socket included) |
| Package contents | 1x Time relay + 1x Mounting socket |
Warranty and support
The product benefits from a 2-year warranty in accordance with Romanian law. 30-day return policy. Fast delivery by national courier. Installation must be carried out by authorized personnel, in accordance with the technical instructions provided.
