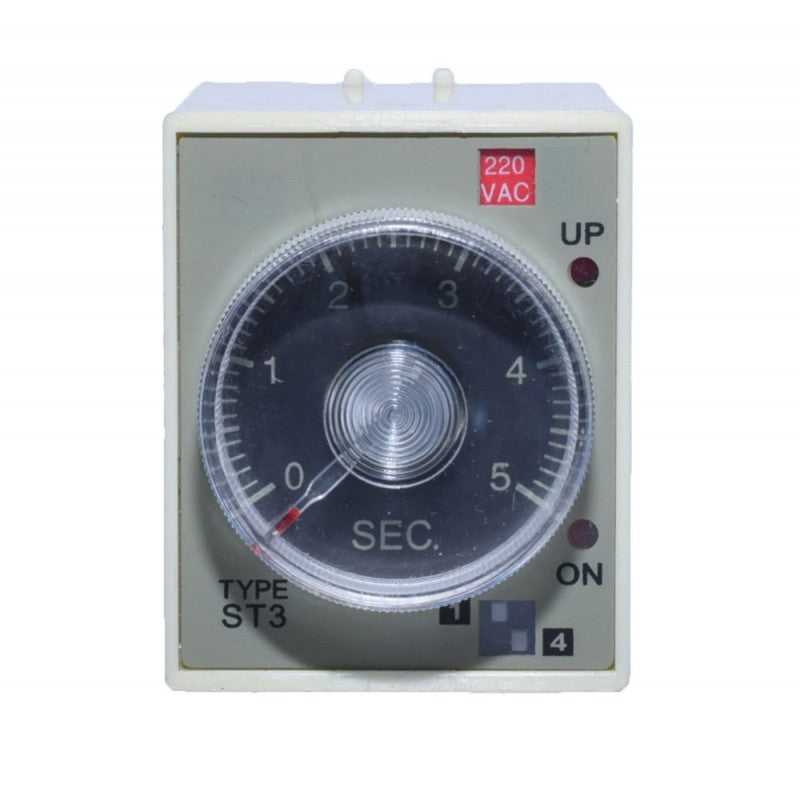

220V Timer Relay with 4 Adjustable Ranges
The ST3P mechanical timer allows automatic control of electrical equipment at precise intervals from 0.5 seconds to 3 minutes. Ideal for automating industrial processes, lighting control, or managing household equipment, it offers reliability and precision without complicated electronic components.
What you get with this product
- Four preset timing ranges - 0.5s, 5s, 30s, and 3 minutes for quick adaptation to various applications
- 8-pin socket included in the package - complete installation without additional purchases
- Robust analog mechanism - reliable operation independent of sensitive electronics
- Clear rotary knob switching - simple visual adjustment of the desired interval
- Universal compatibility with standard electrical panels - direct mounting on DIN rail or socket
- LED indicator for monitoring - instantaneous visibility of operating status
How it works and how to install it
The relay is fixed into the included 8-pin socket, which connects to the electrical circuit according to the diagram on the housing. Select the desired range using the side switch, then turn the central knob to set the exact interval. When voltage is applied, the timer activates the contact for the set duration, then automatically returns to its initial position.

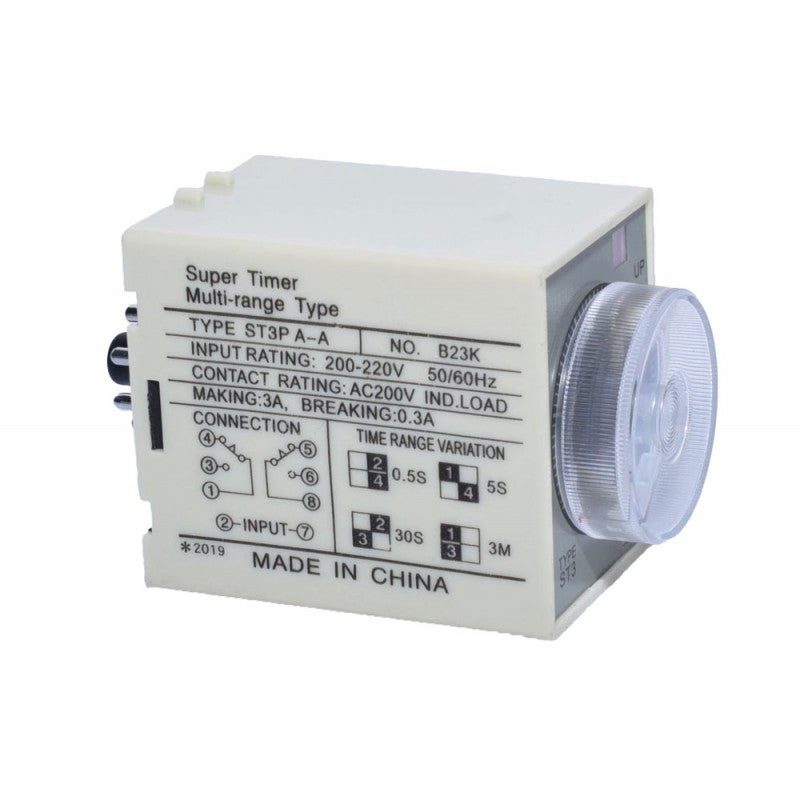

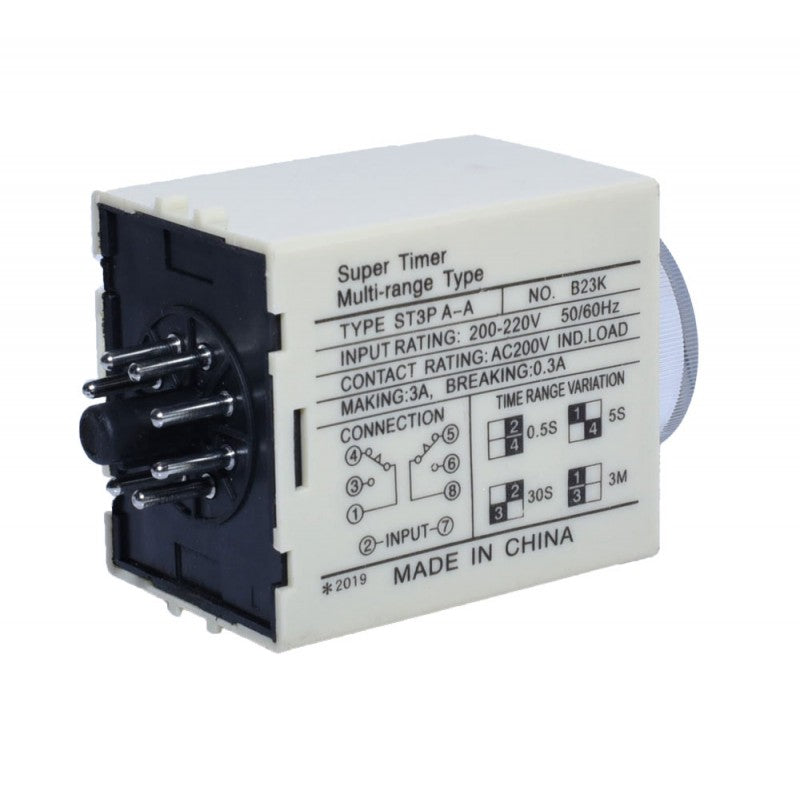

Installation requires electrical knowledge and adherence to safety regulations. Connections are clearly marked on the socket, and the wiring diagram is printed on the side of the relay for quick reference.
Frequently asked questions
Do I need to buy the socket separately or is it included?

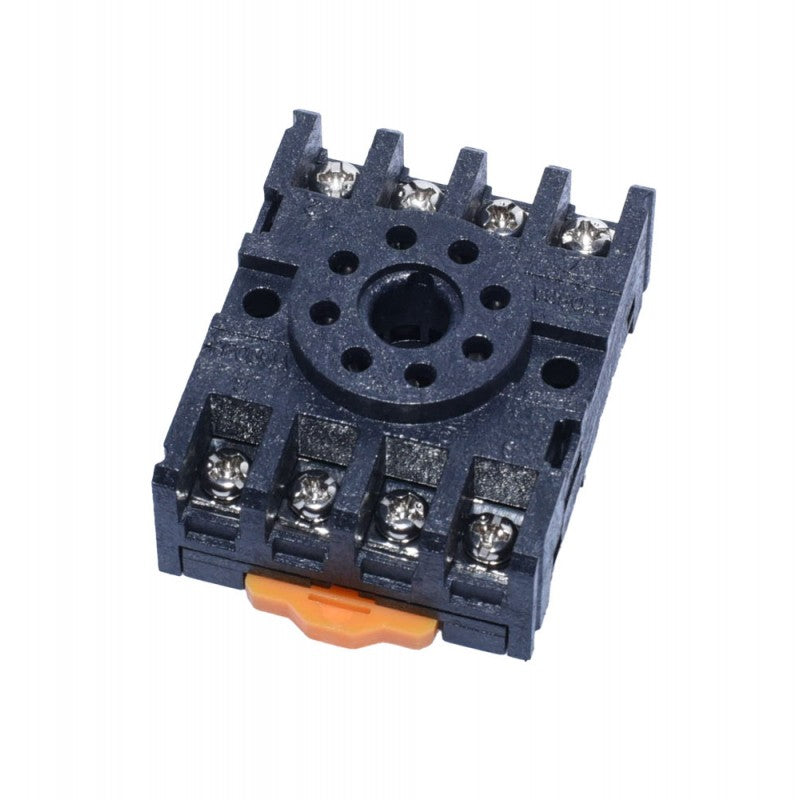

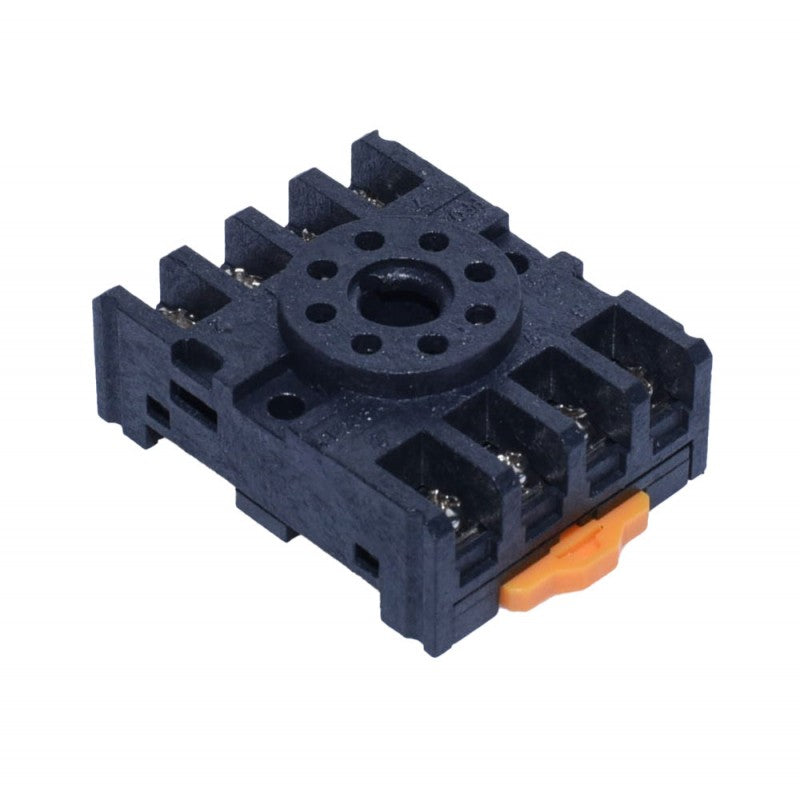

The compatible MF 6950 8-pin socket is included in the package; you receive everything you need for installation.
Can I use the relay to control pumps or fans?
Yes, with a switching capacity of 3A at 200V AC, it can control most light household and industrial equipment, including small pumps and fans.
How do I switch between the 4 timing ranges?
Using the side switch marked 0.5S/5S/30S/3M - selection is mechanical, without electronic programming.
Technical specifications
| Model | ST3P A-A |
| Power supply voltage | 200-220V AC, 50/60Hz |
| Contact rating | 3A |
| Timing ranges | 0.5s / 5s / 30s / 3 minutes |
| Number of contacts | 8 contacts on socket |
| Mechanism type | Analog mechanical with rotary knob |
| Dimensions | 40 x 50 x 80 mm |
| Socket included | Yes, compatible MF 6950 |
| Package contents | 1x timer relay + 1x socket |
