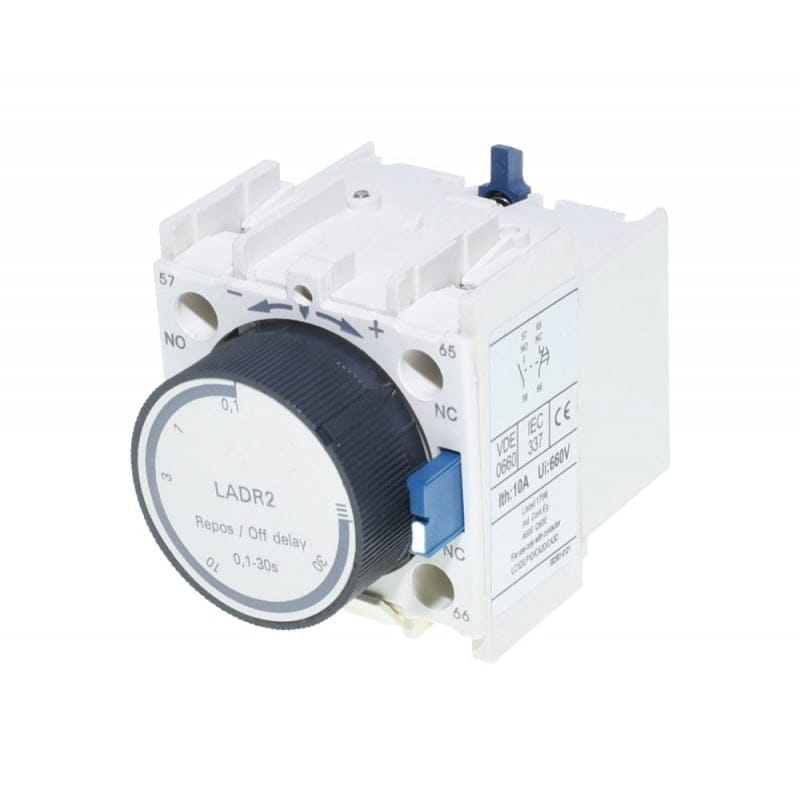

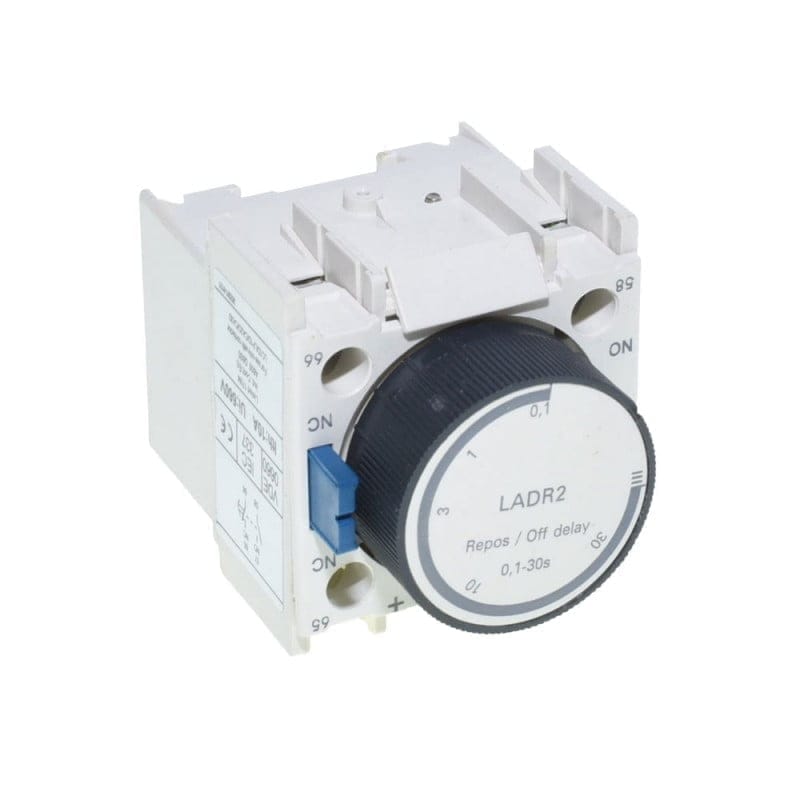

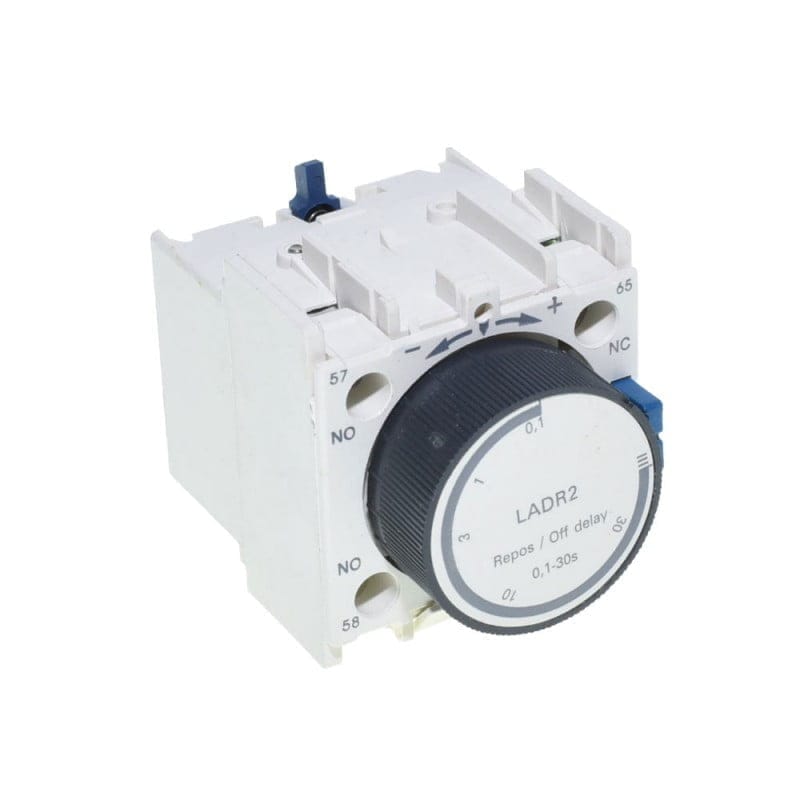

Auxiliary Relay (Contactor Timer) LADR2 / 0.1-30 Sec
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 37,99 lei | — |
| 3–4 pcs | 36,09 lei | 5% (−1,90 lei/unit) |
| 5–10 pcs | 34,19 lei | 10% (−3,80 lei/unit) |
| 11+ pcs | 32,29 lei | 15% (−5,70 lei/unit) |
Adjustable Timer Relay for Industrial Electrical Automation
The LADR2 auxiliary relay is a contactor timer with an adjustable delay between 0.1 and 30 seconds, designed for automated control of industrial electrical equipment. Direct DIN rail installation, NO and NC contacts for flexible connections, precise adjustment via a rotary knob. The compact solution for professional automation in electrical panels.
What you get with this product
- Precise delay time control — adjustable via rotary knob between 0.1 and 30 seconds for exact adaptation to your processes
- Quick DIN rail installation — standard mounting in the electrical panel, no modifications or adaptations needed
- Maximum wiring flexibility — 1NO and 1NC contacts included for any automation configuration
- Guaranteed safety through certifications — VDE and IEC compliant, 660V insulation voltage, 10A rated current
- Compact dimensions — only 4.5 x 5 x 6 cm, saving valuable space in the electrical panel
- Reliability for industrial use — robust construction from thermosetting plastic and quality electrical components
How it works and how to install it
The relay is mounted on the DIN rail in the electrical panel, just like a classic automatic circuit breaker. You connect the wires to the clearly marked terminals on the casing, set the desired time by rotating the graduated knob, and the system is ready to operate. Upon voltage application, the relay activates the contacts after the set interval, allowing for delayed starts or automated sequences of electrical equipment.
The product is intended for installation by authorized electricians, in accordance with installation standards for industrial electrical equipment. It does not require special maintenance after installation.
Frequently Asked Questions
Can it be used in the electrical panel for home automation?
Yes, it can be used in both industrial environments and residential installations, provided it is installed by an authorized electrician and the nominal voltage of 660V AC is observed.
How precise is the delay time adjustment?
The rotary knob allows progressive adjustment between 0.1 and 30 seconds, with clear markings on the scale. The precision is sufficient for most industrial and residential automation applications.
What do 1NO and 1NC contacts mean?
1NO means a normally open contact that closes upon activation, and 1NC means a normally closed contact that opens upon activation. This configuration allows for series or parallel connection of circuits.
Technical Specifications
| Model | LADR2 |
| Electrical Power Type | AC (alternating current) |
| Main Circuit Rated Voltage | 660V |
| Conventional Thermal Current (Ith) | 10A |
| Adjustable Delay Range | 0.1 - 30 seconds |
| Contacts | 1NO + 1NC |

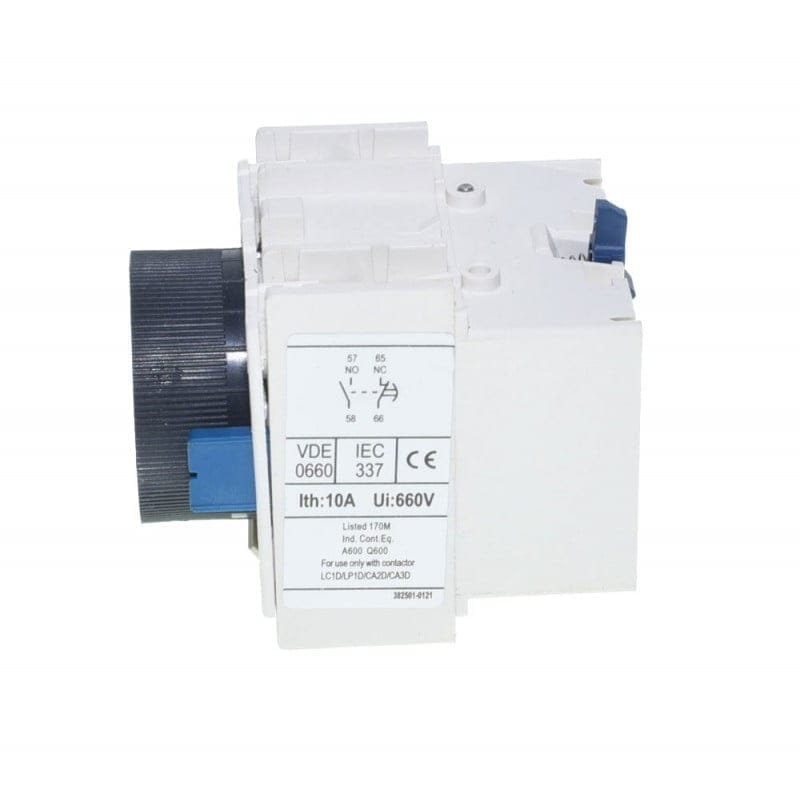

| Certifications | VDE 0660, IEC 337, CE |
| Housing Material | Thermosetting plastic and electrical components |
| Dimensions (L x W x H) | 4.5 x 5 x 6 cm |
| Mounting | Standard DIN rail |
| EAN | 0781499722191 |
Warranty and Support
The product benefits from a 24-month warranty according to current Romanian legislation, covering manufacturing defects. 30-day return policy from receipt. Fast delivery via national courier throughout Romania.
