Auxiliary Relay (Contactor Timer) LA2 DT2 0.1-30Sec
Low stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 37,99 lei | — |
| 3–4 pcs | 36,09 lei | 5% (−1,90 lei/unit) |
| 5–10 pcs | 34,19 lei | 10% (−3,80 lei/unit) |
| 11+ pcs | 32,29 lei | 15% (−5,70 lei/unit) |
Auxiliary relay with adjustable timer for industrial automation
This LA2 DT2 auxiliary relay provides precise control of delays in electrical circuits, being ideal for industrial automation, motor control, and equipment requiring programmable start or stop times. With an adjustment range between 0.1 and 30 seconds and a switching capacity of 10A at 660V, it represents a professional solution for industrial and commercial applications.
What you get with this product

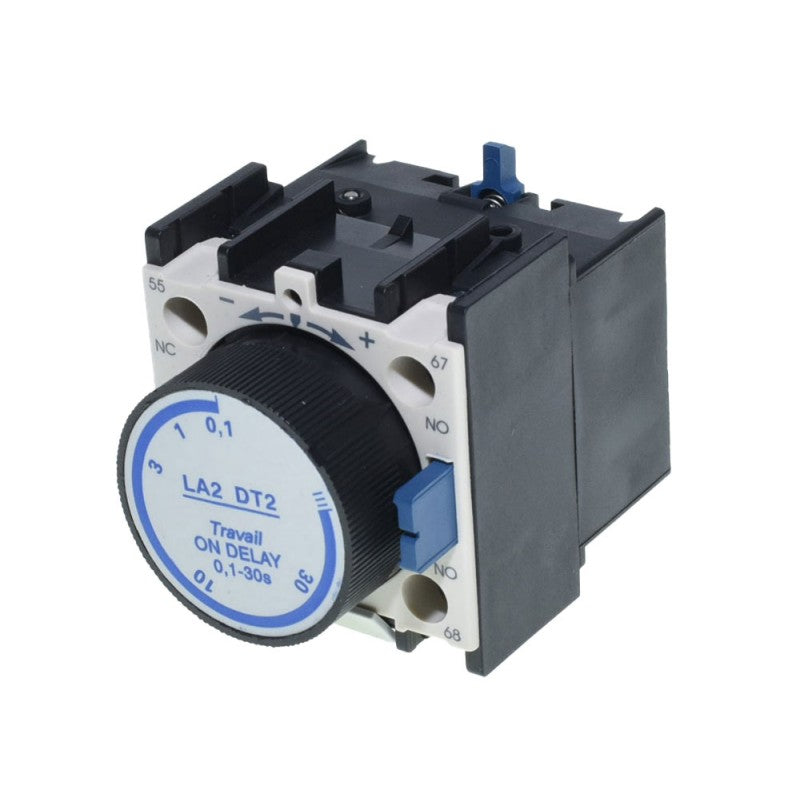

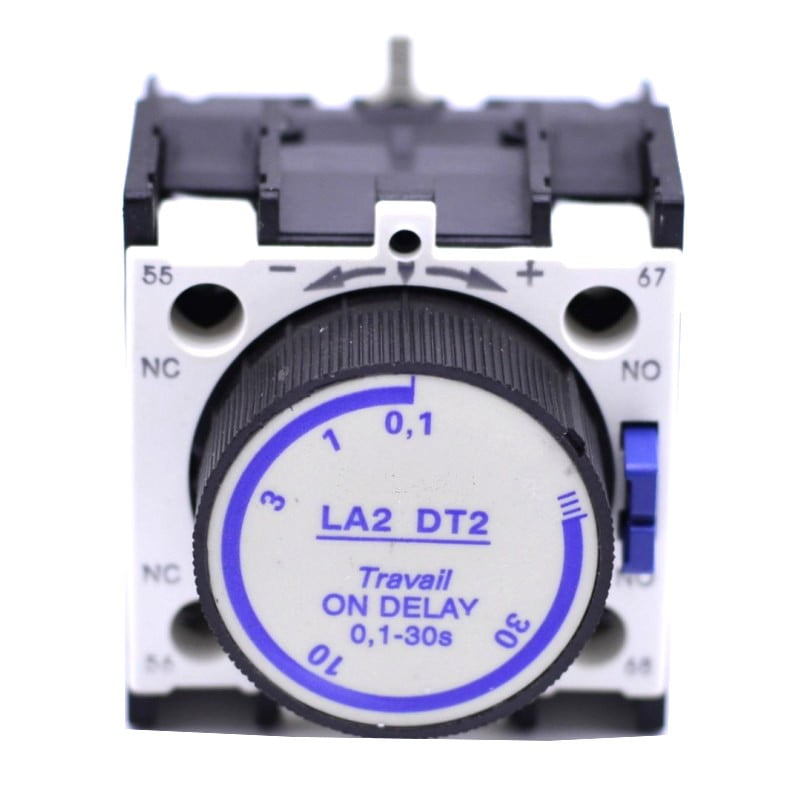

- Precise delay control between 0.1 and 30 seconds via a rotary knob with a graduated scale, without the need for complex settings
- Flexible configuration with one normally open and one normally closed contact, compatible with most industrial installations
- Robust construction with insulation up to 660V and CE certification according to European safety standards
- Quick mounting on DIN rail or directly via integrated terminals, no special tools required
- 10A switching capacity, sufficient for controlling contactors, solenoid valves, and similar equipment
- Compact dimensions of 4.5 x 5 x 6 cm, easily integrated into standard electrical panels
How it works and how to install it
The relay connects in series with the contactor or equipment that requires actuation delay. When the control circuit is powered, the timer begins counting down according to the value set by the rotary knob, after which it activates the contacts. It operates in ON DELAY mode, meaning it delays contact closure after voltage application.

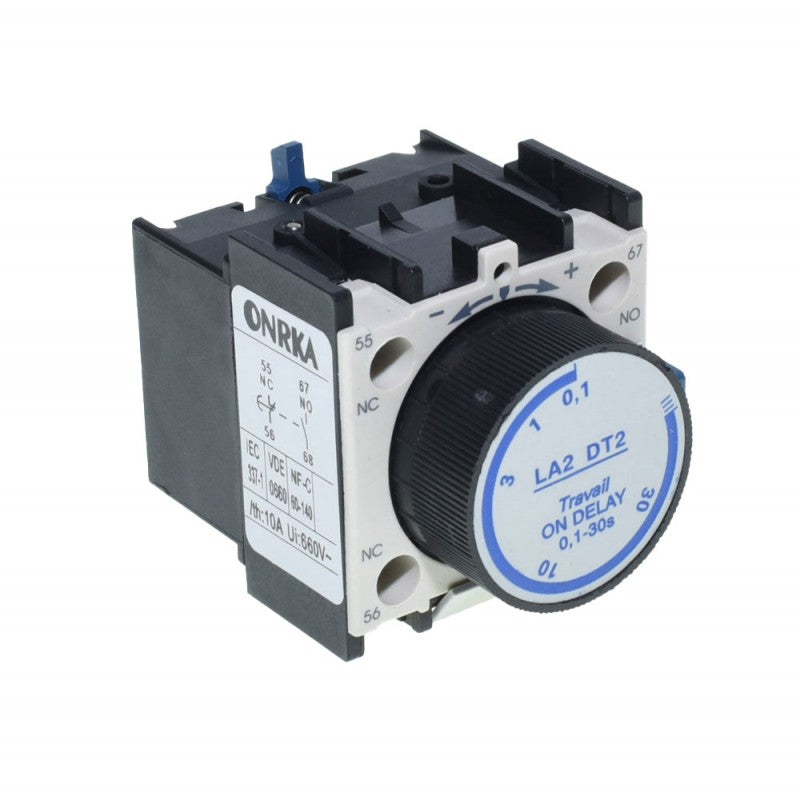

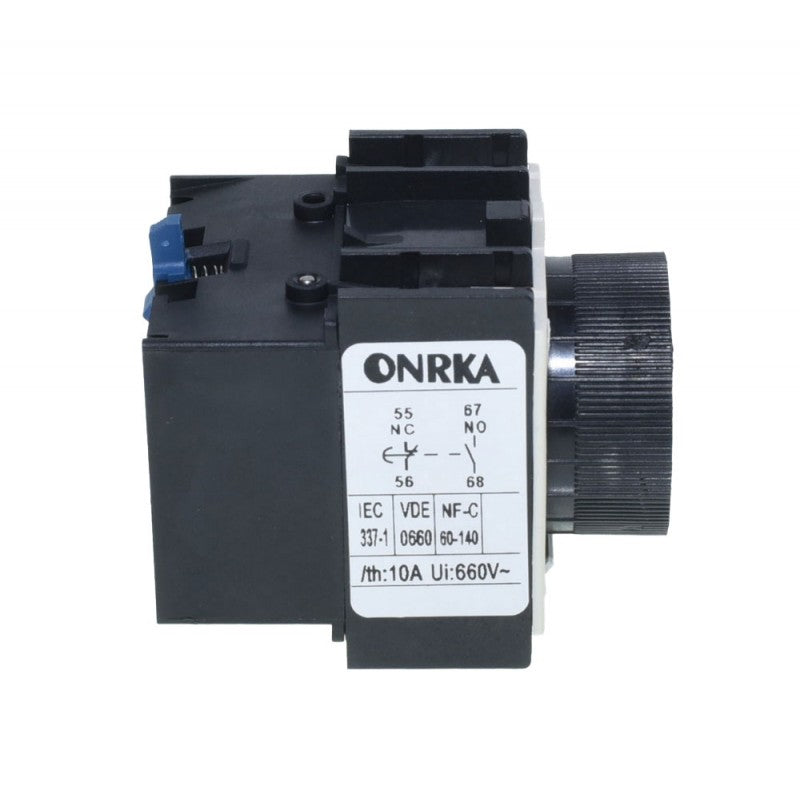

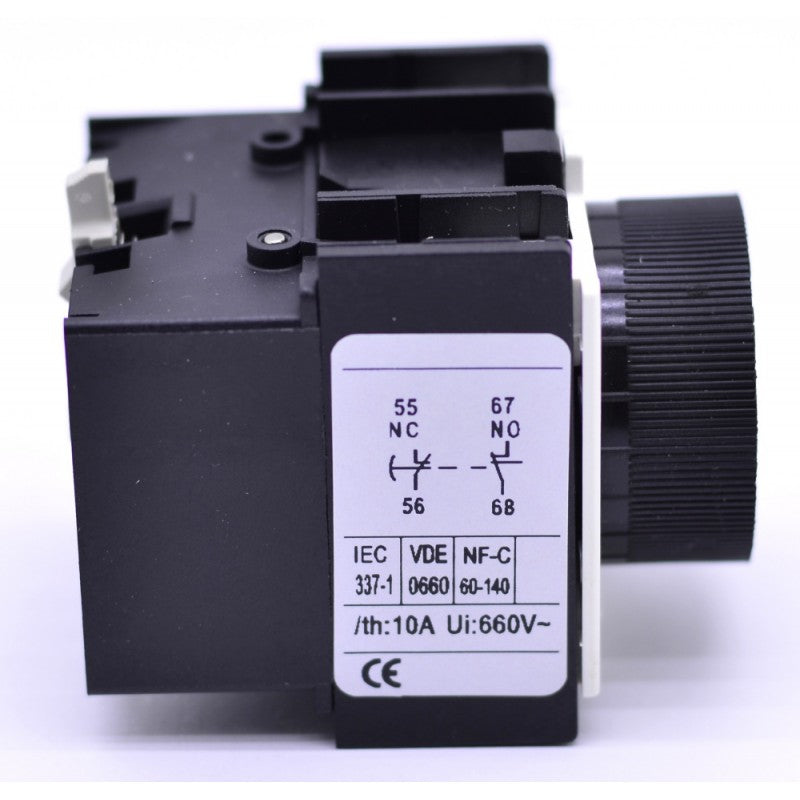

Installation is performed by connecting the cables to the clearly marked terminals on the casing (55, 56 for NC and 67, 68 for NO), following the provided electrical diagram. It is recommended to check the supply voltage before commissioning and install it in an environment protected from excessive humidity.
Frequently asked questions
Can I use this relay for three-phase motors?
Yes, the relay can control contactors for three-phase motors, with a switching capacity of 10A and insulation up to 660V, sufficient for most industrial applications.
Can the delay be adjusted while the equipment is running?
Adjustment during operation is not recommended. For safety, turn off the power, set the desired interval on the graduated scale, then restart the equipment.
Is it compatible with 220V and 380V systems?
Yes, the nominal insulation voltage of 660V covers both single-phase 220V and three-phase 380V installations, being universal for most industrial applications.
Technical specifications
| Model | LA2 DT2 |
| Delay type | ON DELAY (delay on make) |
| Adjustable range | 0.1 - 30 seconds |
| Contact configuration | 1 NO + 1 NC |
| Rated insulation voltage | 660V AC |
| Rated switching current | 10A |
| Dimensions | 45 x 50 x 60 mm |
| Housing material | Flame-retardant plastic with electrical components |
| Certifications | CE, IEC 337-1, VDE 0660, NF-C 60-140 |
| Color | Black with white inserts |
Warranty and support
The product benefits from a 24-month warranty according to Romanian legislation for manufacturing defects. Right of return within 30 days of delivery if the product does not meet expectations. Fast delivery by national courier throughout Romania.
