Relay 24V-DC, Electromagnetic, 11 Pin, With socket
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 27,99 lei | — |
| 3–4 pcs | 26,59 lei | 5% (−1,40 lei/unit) |
| 5–10 pcs | 25,19 lei | 10% (−2,80 lei/unit) |
| 11+ pcs | 23,79 lei | 15% (−4,20 lei/unit) |

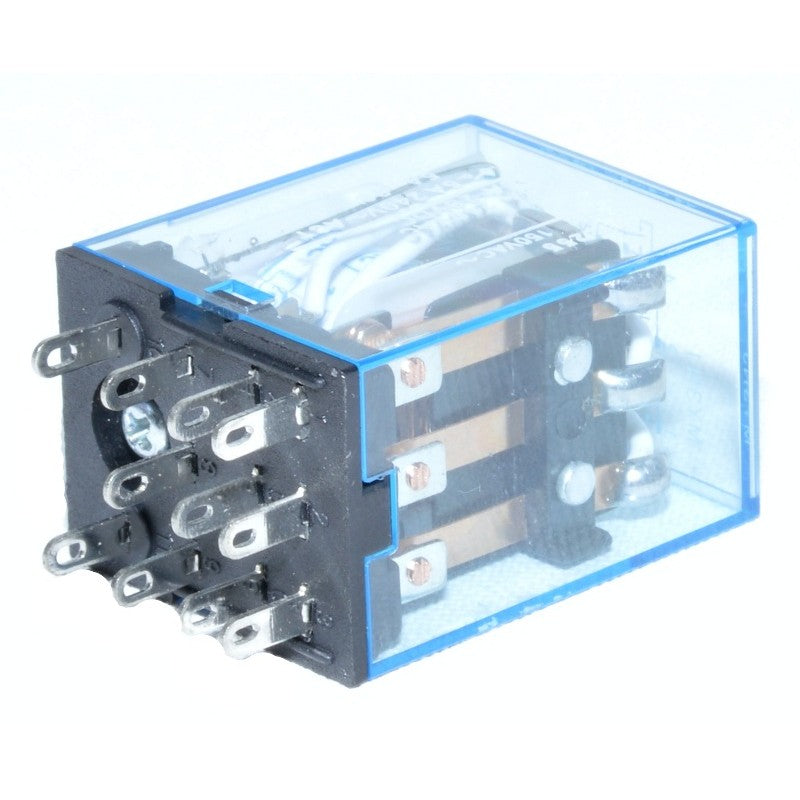

24V DC Electromagnetic Relay with 11 Pins and Socket Included
This 24V DC electromagnetic relay with 11 contacts is the professional solution for controlling and protecting electrical circuits in industrial and domestic installations. It includes a PYF11A mounting socket, providing quick and safe installation for automation applications, equipment control, or overvoltage protection.
What you get with this product
- Mounting socket included in the price — save time and money, receive a complete kit ready for installation
- 11 configurable contacts — maximum flexibility for complex circuits and multiple simultaneous commands
- Robust ABS construction — shock and vibration resistant, ideal for demanding industrial environments
- Ultra-fast response time of 0.3 ms — instant equipment protection and precise switching
- Rated current 5A — sufficient for most industrial automation and control applications
- Transparent casing — visually inspect contact and mechanism status without disassembly
How it works and how to install it

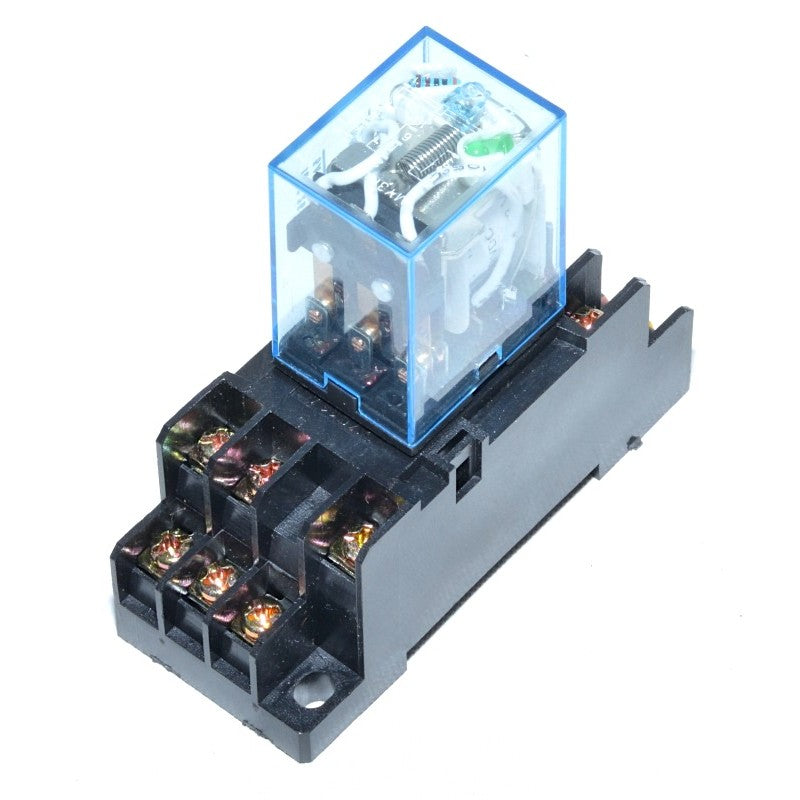

The relay operates electromagnetically: upon applying 24V DC voltage to the coil, the contacts instantly close or open, allowing control of secondary circuits up to 5A. It mounts quickly by inserting it into the included PYF11A socket, which can be fixed on a DIN rail or with screws.
Installation requires a certified electrician: identify the pins according to the diagram, connect the control circuit to the coil, and the controlled circuits to the corresponding contacts. Socket mounting ensures quick replacement without disconnecting the wiring.
Frequently Asked Questions
Can I install the relay myself or do I need an electrician?
Installation requires electrical knowledge and authorization, as you are working with electrical circuits that can pose a risk of electric shock or equipment damage.
Is the socket included in the price or must it be purchased separately?
The PYF11A mounting socket is included in the price; you receive a complete kit ready for installation.
What does a 0.3 ms response time mean and why does it matter?
It is the speed at which the relay switches the circuit after voltage application. A short time means instant protection and precise equipment control.
Technical Specifications
| Nominal Coil Voltage | 24V DC |
| Number of Contacts | 11 pins |
| Rated Current | 5A |
| Operating Frequency | 50Hz |
| Response Time | 0.3 ms |
| Relay Dimensions | 20 x 26 x 35 mm |
| Socket Dimensions | 22 x 59 x 30 mm |
| Housing Material | ABS |

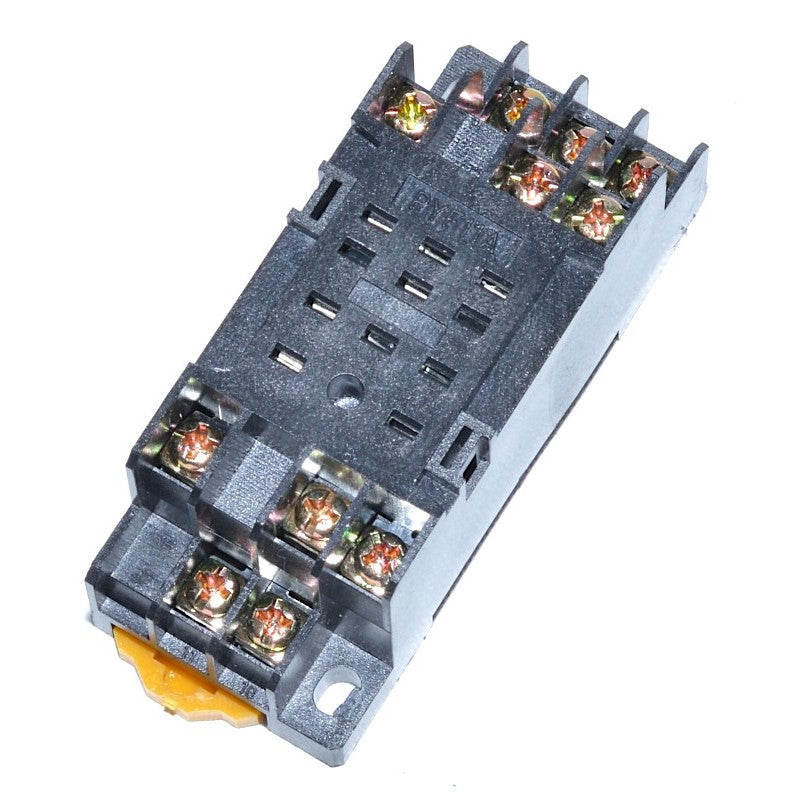

| Socket Type | PYF11A (included) |

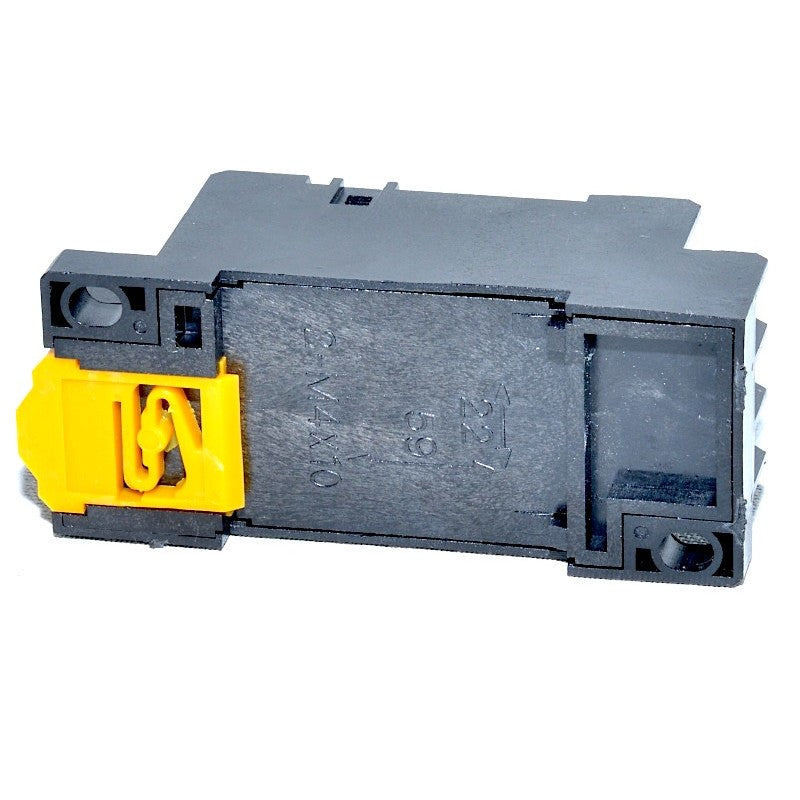

| Mounting Type | Screw / DIN rail |

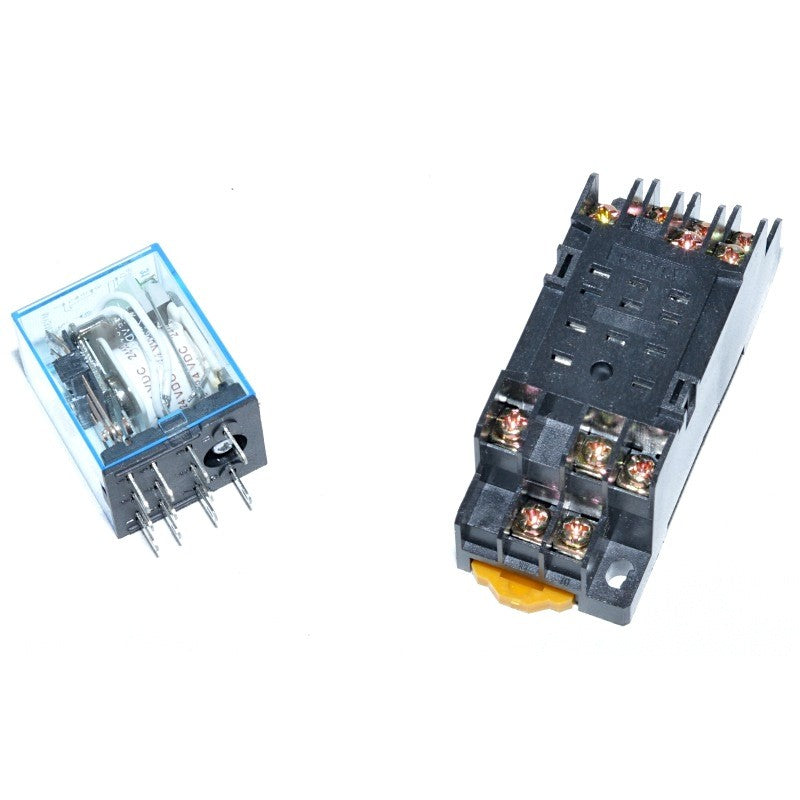

| Package Contents | 1x Relay + 1x Socket |
Warranty and Support
The product benefits from a 24-month warranty according to Romanian legislation, a 30-day return right, and fast delivery via courier. For correct and safe installation, consult an ANRE certified electrician.
