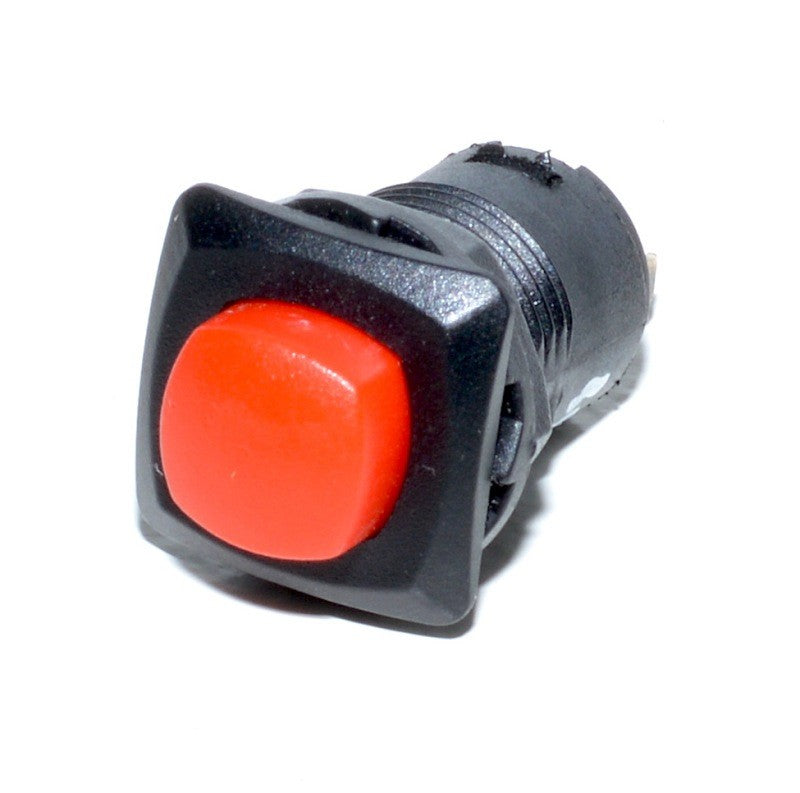

Latching Square Push Button 15x15x30mm Red
Available in stock
Minimum order quantity: 6 pcs
| Quantity | Price per unit | You save |
|---|---|---|
| 1–9 pcs | 1,99 lei | — |
| 10–15 pcs | 1,89 lei | 5% (−0,10 lei/unit) |
| 16–20 pcs | 1,79 lei | 10% (−0,20 lei/unit) |
| 21+ pcs | 1,69 lei | 15% (−0,30 lei/unit) |
Square Latching Push Button for Industrial Applications
The 15x15x30mm red square latching push button is a reliable component for control panels, automatic machines, and automation systems. With an IP65 protection rating, it resists dust and water jets, making it suitable for both industrial environments and various technical applications. The normally closed contact and spade terminals on the back allow for quick integration into any electrical circuit.
What you get with this product
- IP65 Protection — operates flawlessly in dusty or high-humidity environments, without risk of premature damage
- Mechanical Latching — the button remains pressed after actuation, eliminating the need for manual position holding
- Normally Closed Contact — the circuit is closed in the resting state, useful in safety and emergency stop applications
- Compatible with 125V AC and 250V AC — integrates directly into standard industrial or automation electrical installations
- Compact Dimensions 15x15x30mm — mounts in small spaces, on panels or enclosures with small cutouts
- Visible and Accessible Spade Terminals — wires can be connected quickly, without special tools or soldering
How it works and how to install it

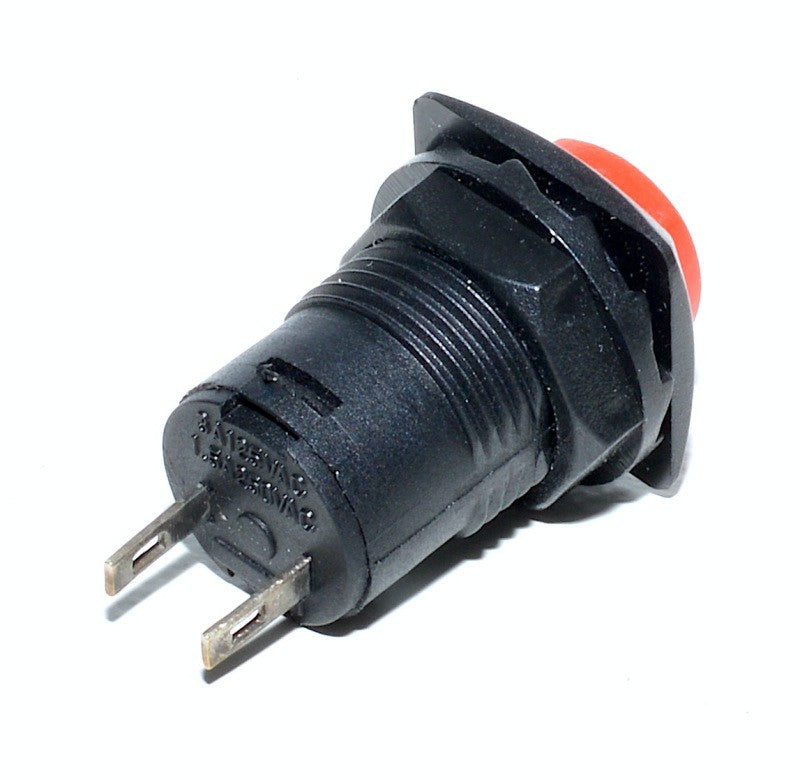

The button is mounted by cutting a square hole in the desired panel or enclosure, then secured with the threaded nut included on the button body. The spade terminals on the back allow for wire connection with simple clamps or solder. Upon the first press, the button retains the activated position; a second press releases the mechanism and returns it to the initial position.
Frequently Asked Questions
What does normally closed contact mean for this button?
In the resting state, the circuit between the two terminals is closed (conductive). When the button is pressed, the circuit opens and interrupts the current.
Does the button stay pressed or return on its own after actuation?
This button has a latching function — it remains locked in the pressed position until a new press releases the mechanism.
What cutout size is required for mounting?
The button requires a square cutout of approximately 15x15mm in the mounting panel, with the threaded body passing through the panel thickness and securing with the nut from the back.
Technical Specifications
| SKU | Q-6D035 |
| Type | Square Latching Push Button |
| Button Color | Red |
| Dimensions | 15 x 15 x 30 mm |
| Voltage / Current | 125V AC / 3A; 250V AC / 1.5A |
| Contact Type | Normally Closed (NC) |
| Number of Contacts | 2 |
| Terminal Type | Spade (faston) |
| Protection Class | IP65 |
| LED Illumination | No |
| Action | Latching Push Button |
| Brand | OEM |
| Package Contents | 1 x Red Square Latching Push Button |
Warranty and Support
The product benefits from a 2-year warranty in accordance with current Romanian legislation. We accept returns within 30 days from the delivery date, without the need for justification. Delivery is carried out quickly by courier, with shipping confirmation and tracking.
