Push Button 22mm/24V White LED
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 40,99 lei | — |
| 3–4 pcs | 38,94 lei | 5% (−2,05 lei/unit) |
| 5–10 pcs | 36,89 lei | 10% (−4,10 lei/unit) |
| 11+ pcs | 34,84 lei | 15% (−6,15 lei/unit) |

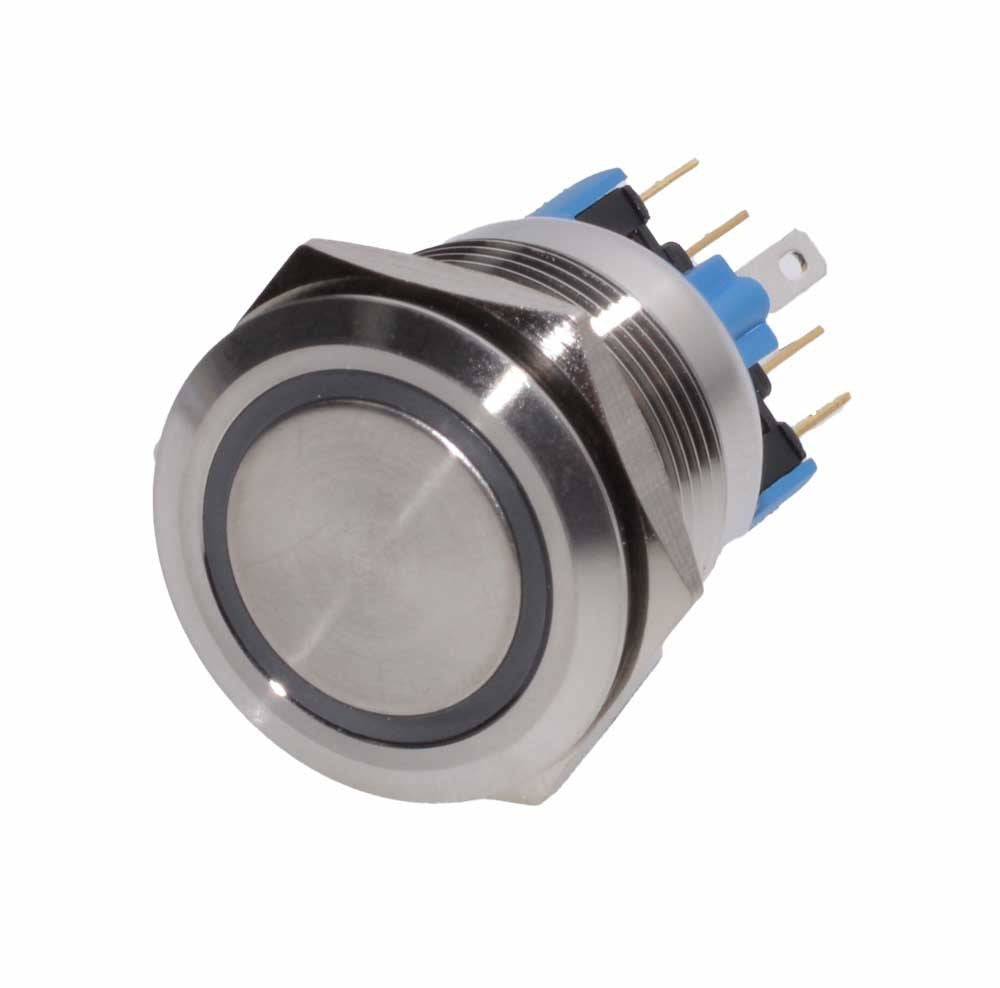

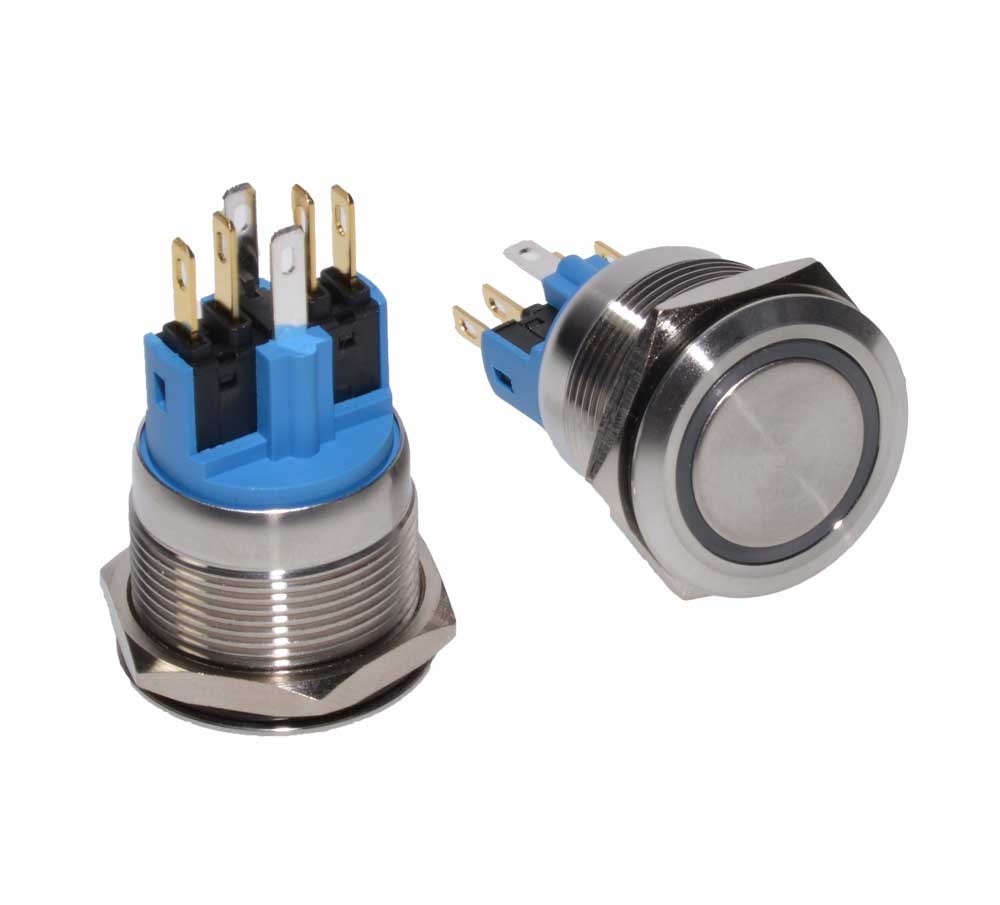

22mm Metal Push Button with White LED and IP67 Protection
The 22mm metal push button with 24V white LED is designed for industrial applications where reliability and resistance to harsh environments are essential. Suitable for control panels, elevators, car washes, pumps, and industrial machinery, this button combines an anti-vandal stainless steel body with clear ring illumination. With a guaranteed 500,000 mechanical cycles, it offers a significantly longer lifespan than conventional plastic buttons.
What you get with this product
- Vandal and water resistance — the stainless steel housing with IP67 and IK09 protection works flawlessly in humid environments or those exposed to mechanical stress

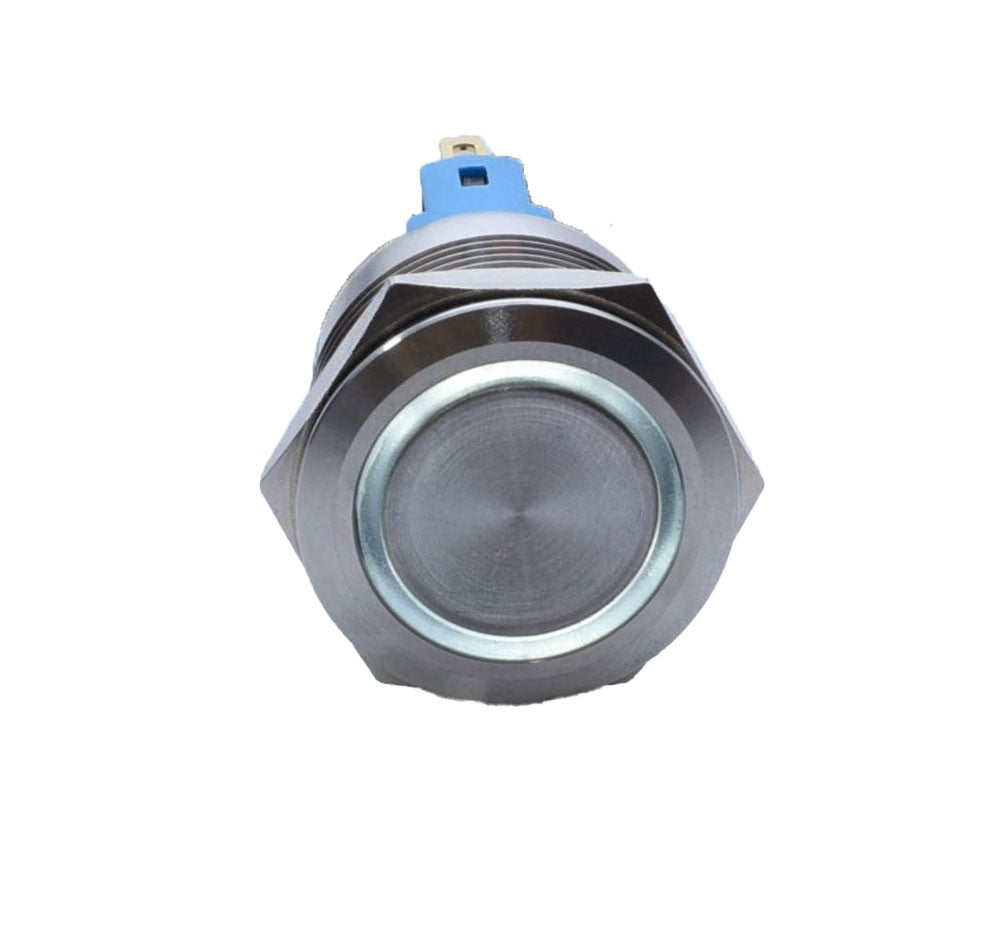

- Quick status identification — the 24V white LED ring visibly indicates activation, useful in low-light conditions or crowded panels
- High lifespan without interventions — 500,000 mechanical cycles and an LED lifespan of over 50,000 hours reduce replacement costs

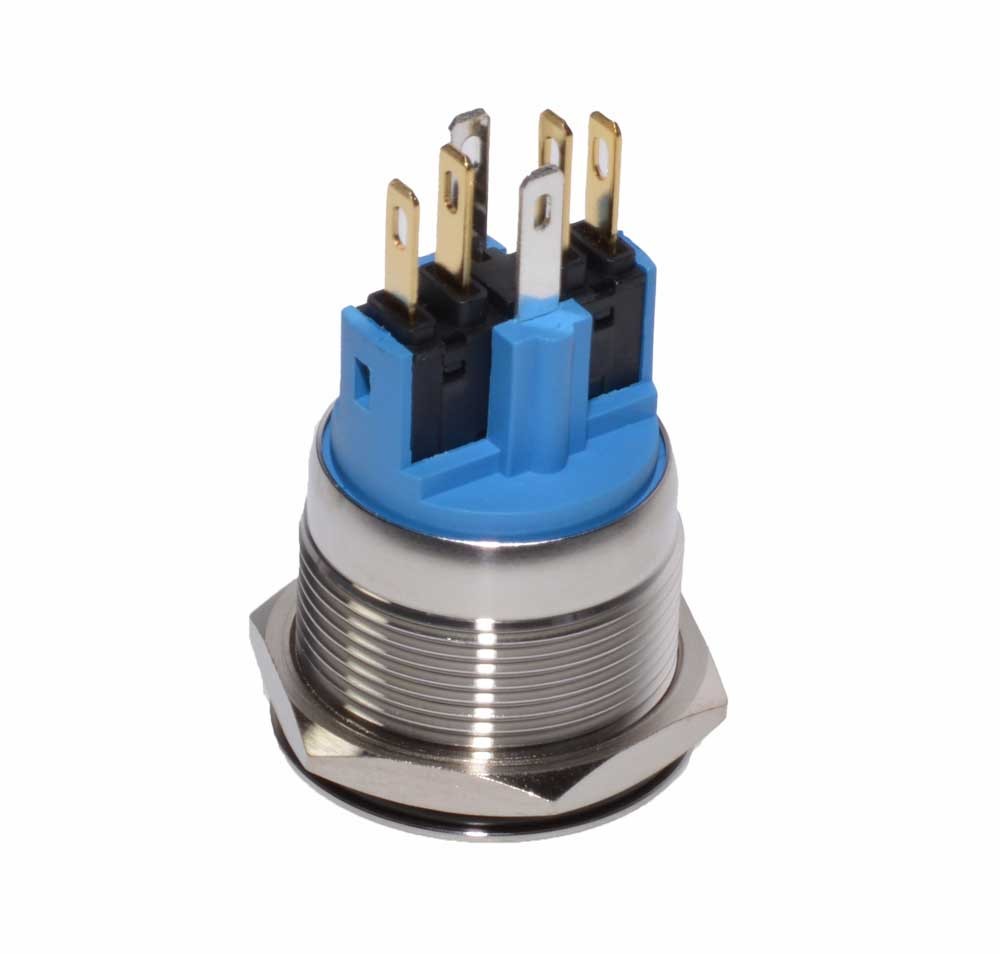

- Simple and flexible connection — the 6 pins with 1NO+1NC configuration allow integration into normally open or normally closed circuits, without additional adapters
- Quick installation in standard panels — the 22mm diameter fits standard industrial mounting holes, with included nut and rubber gasket
- Silver alloy contacts — ensure stable electrical contact resistance (max. 50 mOhm) and maintain performance throughout the lifespan
How it works and how to install it
The button operates momentarily — it activates the circuit when pressed and automatically returns to its initial position when released (operating travel 2.0 mm, operating force 500 gf). Installation is done by inserting the button into a 22mm hole in the control panel, securing it with the detachable nut, and connecting the 6 pins according to the NO/NC scheme. The LED is powered separately at 24V DC/AC. No special tools are required, and the rubber gasket ensures automatic sealing to IP67 level.
Frequently asked questions
Does this button work outdoors, in the rain?
Yes, IP67 protection guarantees complete watertightness for temporary immersion in water, and IK09 certifies resistance to mechanical impact — it can be used in outdoor panels or car washes.
Does the 24V voltage refer to the LED or the switching contacts?
The 24V voltage refers to the LED power supply. The switching contacts (1NO+1NC) support separate electrical loads, according to the specifications of the circuit in which the button is integrated.
Can this button be used in an elevator or industrial electrical panel?
Yes, it is compatible with control panels for elevators, machinery, and industrial automation that use standard 22mm mounting holes and 24V signaling voltage.
Technical specifications

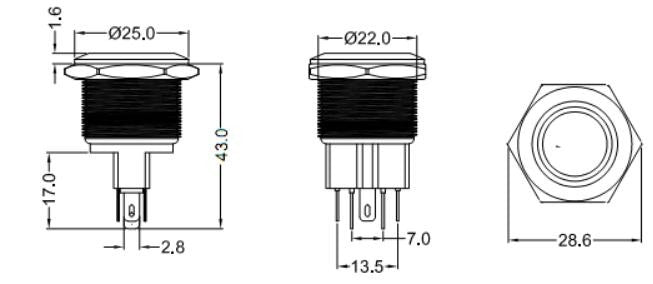

| Mounting diameter | 22 mm |
| LED voltage | 24V DC/AC |
| Light color | White |
| Function | Momentary (automatic return) |
| Connection terminals | 6 pins — 1NO + 1NC |
| Protection level | IP67 / IK09 |
| LED lifespan | ≥ 50,000 hours |
| Mechanical lifespan | 500,000 cycles |
| Dielectric lifespan | 200,000 cycles |
| Operating force | 500 gf |
| Operating travel | 2.0 mm |
| Contact resistance | max. 50 mOhm |
| Operating temperature | -20°C ... +85°C |
| Nut tightening torque | 5 - 14 Nm |
| Body material | Stainless steel |
| Contact material | Silver alloy |
| SKU | Q-6D063 |
Warranty and support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. You can return the product within 30 days of receipt if it does not meet expectations. Delivery is carried out quickly by courier throughout Romania.
