Thermal Protection Reset 220V - 3A
Available in stock
Minimum order quantity: 2 pcs
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 5,99 lei | — |
| 3–4 pcs | 5,69 lei | 5% (−0,30 lei/unit) |
| 5–10 pcs | 5,39 lei | 10% (−0,60 lei/unit) |
| 11+ pcs | 5,09 lei | 15% (−0,90 lei/unit) |

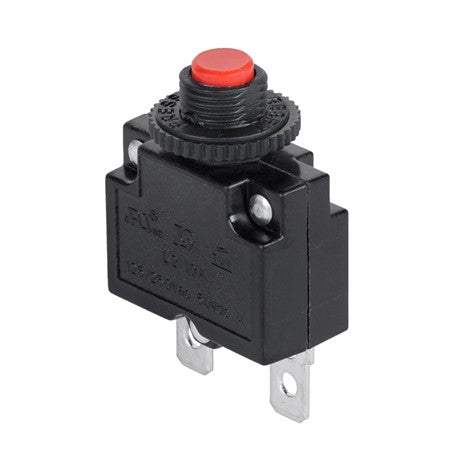

220V Manual Reset Thermal Protector for Motors and Pumps
Ensures the safety of the pump motor or electrical equipment by automatically disconnecting in case of overload. It is manually reset with a simple push, eliminating the need to replace fuses. Ideal for water pumps, compressors, and electric motors with a consumption of up to 3A.
What you get with this product
- Automatic protection against overheating and short circuits — your motor is stopped before damage occurs
- Manual reset with a button — no more buying new fuses, just press the button after cooling
- Quick installation on any electric motor — only two terminals to connect, works instantly
- Contact resistance below 40m Ohm — minimal energy loss, stable long-term operation
- Robust construction from heat-resistant plastic and metal — withstands vibrations and high temperatures in the motor area
- Compatible with 125V and 250V voltages — adapts to various industrial and domestic applications
How it works and how to install it
The thermal protector detects temperature increase caused by overload or short circuit and automatically interrupts the electrical circuit. After cooling, press the red button to reset the connection. Installation is done by connecting the two metal terminals in series with the protected motor — no special tools required, just a screwdriver. The device is fixed on the motor casing or in a junction box.
Frequently asked questions
How long should I wait before resetting the protection?
Allow the device and motor to cool down completely, typically 5-10 minutes, then press the red button to reset.
Can I use this protector with a 220V pump?
Yes, it is designed specifically for motors and pumps powered at 220V, with a maximum consumption of 3A.
Does it reset automatically or only manually?
This protection is manual reset type — after tripping, the red button must be pressed to restart the circuit.
Technical specifications

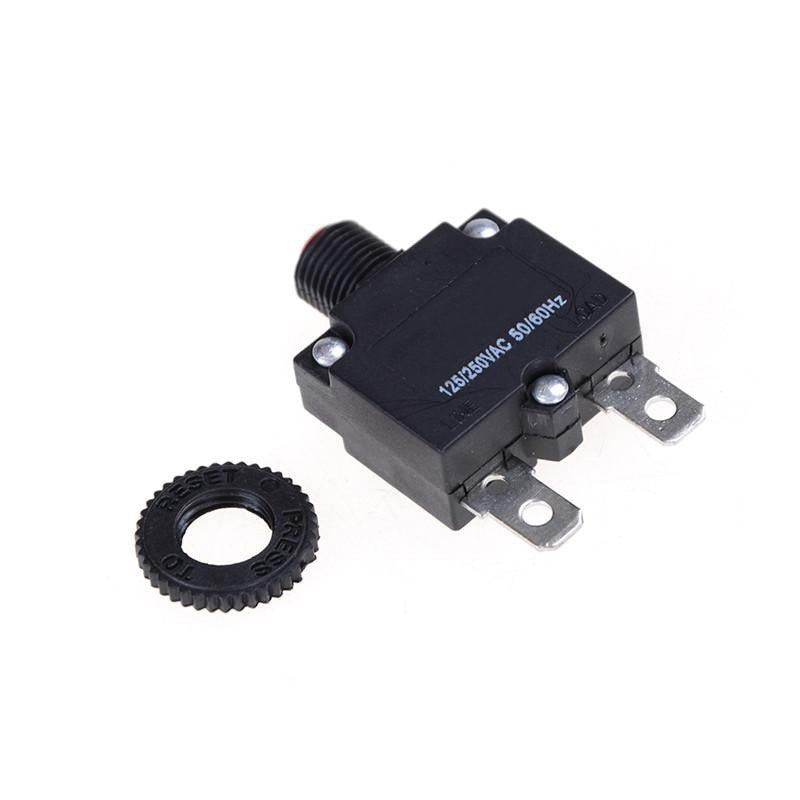

| Rated Voltage | 125/250V AC |
| Maximum Amperage | 3A |
| Frequency | 50/60Hz |
| Contact Resistance | ≤ 40m Ohm |
| Reset Type | Manual |
| Material | Heat-resistant Plastic / Metal |
| Dimensions | 28.5 x 46.5 x 13.5 mm |
| Package Contents | 1 x Thermal Protector with Reset Button |
Warranty and support
The product benefits from a 24-month warranty in accordance with Romanian legislation. 30-day return policy without justification. Fast national courier delivery with telephone confirmation.
