LED Board Type SMD 64 X 64 X 48 Pcs 12V / Power 20W
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 10,99 lei | — |
| 3–4 pcs | 10,44 lei | 5% (−0,55 lei/unit) |
| 5–10 pcs | 9,89 lei | 10% (−1,10 lei/unit) |
| 11+ pcs | 9,34 lei | 15% (−1,65 lei/unit) |

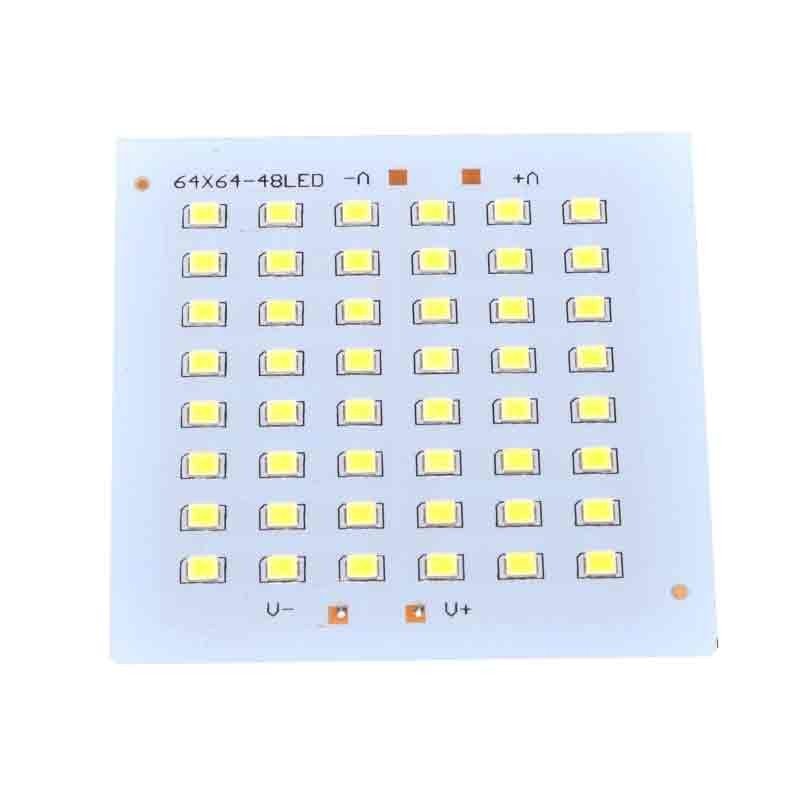

20W SMD 2835 LED Board for 12V Lighting
The 20W SMD 2835 LED board is a compact and efficient solution for DIY lighting projects, light source replacements, or the construction of custom spotlights and floodlights. With 48 LEDs uniformly arranged on a 64 x 64 mm surface and 12V power supply, this board offers a generous luminous flux with low energy consumption. Suitable for both light industrial applications and hobby electronic projects.
What you get with this product
- Uniform and powerful light — the 48 SMD 2835 LEDs cover the board surface without dark spots or hot spots
- Compatible with standard 12V sources — connects directly to common drivers and power supplies without additional components
- Compact 64 x 64 mm format — easily integrates into existing enclosures or projects with limited space
- Neutral color temperature of 6500K — cool white light, suitable for functional lighting, workshops, or display cases
- 120-degree beam angle — wide light distribution, without the need for additional optics in most applications
- Metal core PCB substrate — heat dissipation is more efficient than on classic FR4, extending the lifespan of the LEDs
How it works and how to install it
The board operates at a 12V DC voltage and consumes 20W, so it requires a driver or power supply of at least 1.7A at 12V. Connection is made via the two pads marked V+ and V- visible on the board, using soldered wires or contact clips. For optimal lifespan, it is recommended to mount the board on a metal heatsink or a surface with good thermal conductivity, as at 20W, heat generation must be managed appropriately.
Frequently Asked Questions
Do I need a special driver or does it work directly with 12V?
It works directly with 12V DC — a stabilized 12V power supply with a minimum of 2A is sufficient for proper power supply to the board.
Is mounting on a heatsink necessary?
Yes, mounting on a metal surface or heatsink is recommended, especially for continuous use, to prevent overheating and premature degradation of the LEDs.
Can I use this board as a replacement for an existing bulb or spot?
The board is a bare module, without casing or optics, so it is intended for integration into DIY projects or for replacing the light module in a defective appliance, not for direct replacement of a standard socket bulb.
Technical Specifications
| SKU | Q-20C009 |
| LED Type | SMD 2835 |
| Number of LEDs | 48 pieces |
| Supply Voltage | 12V DC |
| Power | 20W |
| Color Temperature | 6500K (Cool White) |
| Beam Angle | 120 degrees |
| LED Size | 2.8 x 3.5 mm |
| Board Size | 64 x 64 x 1.3 mm |
| Brand | OEM |
| Package Contents | 1 x 20W SMD LED Board |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. Returns are accepted within 30 days of receipt, without the need for justification. Delivery is carried out quickly by courier, with dispatch confirmation and parcel tracking capability.
