50W COB LED Chip, Yellow Light, 220V AC / XSY-5454
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 23,99 lei | — |
| 3–4 pcs | 22,79 lei | 5% (−1,20 lei/unit) |
| 5–10 pcs | 21,59 lei | 10% (−2,40 lei/unit) |
| 11+ pcs | 20,39 lei | 15% (−3,60 lei/unit) |

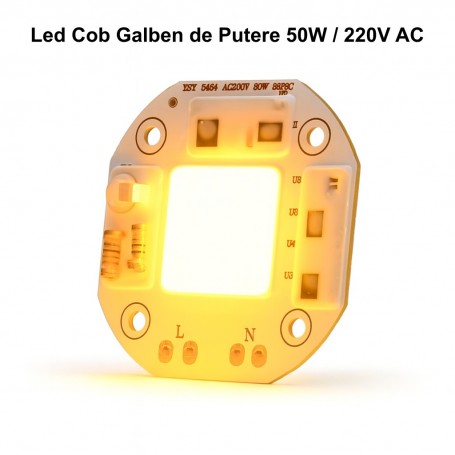

50W COB LED Chip, Yellow Light, Direct 220V Power Supply
The 50W COB LED chip with yellow light is a compact, high-power lighting source designed for direct connection to a 220V AC mains supply, without the need for an external driver. It emits a uniform spectral yellow light, predominantly around 590 nm, suitable for decorative lighting, ambient lighting, signaling, or specialized DIY lighting projects. Chip-on-Board technology ensures high luminous density in an extremely compact format.
What you get with this product
- Direct 220V AC power supply — no separate driver or power supply needed, reducing costs and assembly complexity
- Pure yellow light with ~590 nm dominance — ideal for applications where white light would attract insects or disturb nocturnal visibility
- Luminous flux of 3000-3500 lm at 50W — high power in a small module, suitable for spotlights and DIY light fixtures
- 120-degree emission angle — wide light distribution without dead spots, good uniformity on the illuminated surface
- Robust COB construction on a ceramic substrate — efficient heat dissipation, extended lifespan under normal operating conditions with an adequate heatsink
- Compatible with a wide range of standard light fixtures — can be mounted in spotlights, floodlights, or custom fixtures by simply soldering and connecting to L and N
How it works and how to install

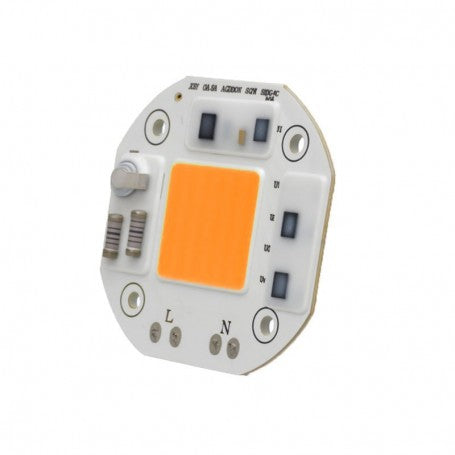

The XSY-5454 COB LED chip connects directly to the 220V AC mains via the L (phase) and N (neutral) terminals marked on the PCB, visible on the module. It does not require a separate LED driver, as the control circuit is integrated on the board. For correct operation and optimal lifespan, the module must be mounted on a heatsink appropriate for 50W power, using thermal paste for efficient heat transfer. Mechanical mounting is done through the four mounting holes in the corners of the plate.
Frequently asked questions
Do I need a separate LED driver for this chip?
No. The XSY-5454 module is designed for direct 220V AC power supply, with the driver integrated on the COB board, so it connects directly to the outlet or electrical grid.
Is a heatsink mandatory for this 50W chip?
Yes, mounting on a heatsink with thermal paste is mandatory. At 50W, without adequate heat dissipation, the module will overheat quickly and its lifespan will be significantly reduced.
Why would I choose yellow light instead of warm white light?
Spectral yellow light (~590 nm) does not attract nocturnal insects and is frequently used in outdoor garden lighting, on terraces, or in agricultural areas. It is also preferred in decorative or signaling applications where a pure yellow tone is important.
Technical specifications
| SKU | Q-20C067 |
| Model | XSY-5454 |
| Power | 50W |
| Supply voltage | 220V AC, 50/60 Hz |
| Light color | Spectral yellow (~590 nm) |
| Equivalent color temperature | ~2000-2500K |
| Luminous flux | 3000-3500 lm |
| Beam angle | 120 degrees |
| Construction type | COB (Chip-on-Board) |
| Driver | Integrated on module |
| Cooling required | External heatsink + thermal paste (not included) |
| Brand | ClassLights |
Warranty and support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days from the delivery date, without the need for justification. Delivery is carried out quickly by courier throughout Romania.
