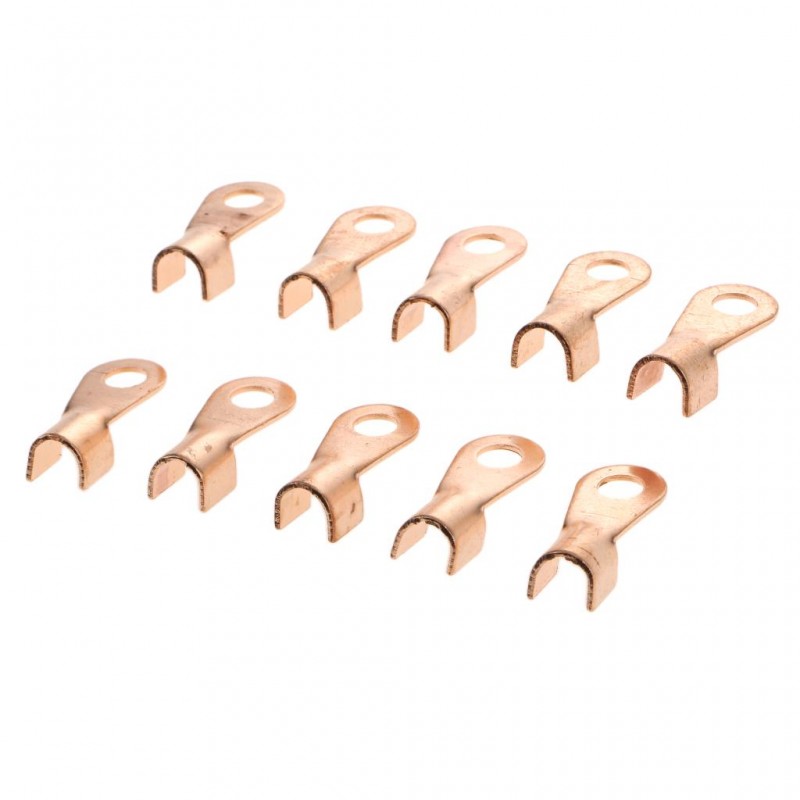

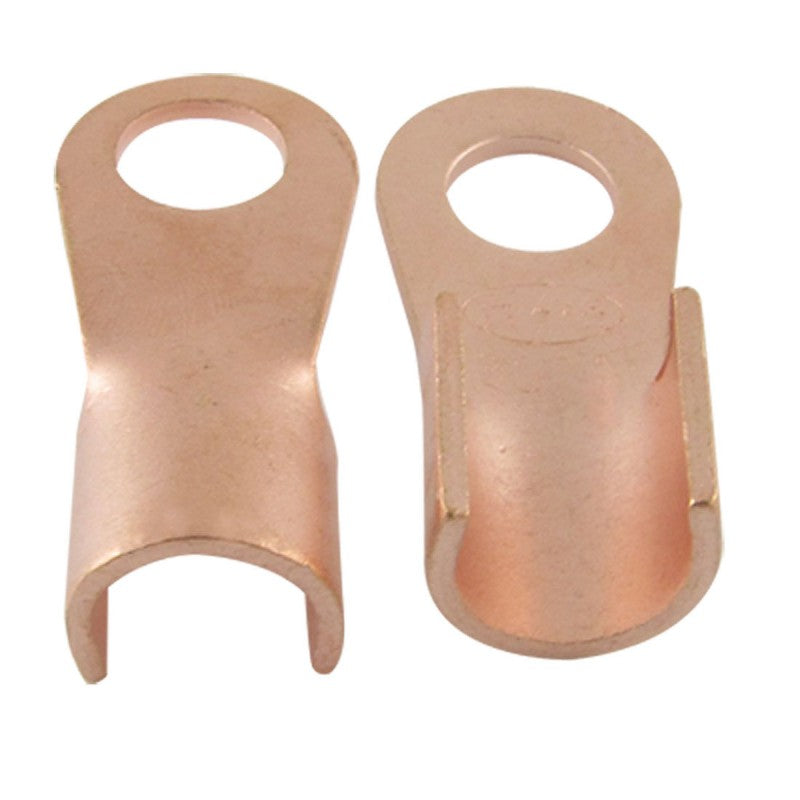

Copper Electrical Lug, 200A, Diameter 10.2mm
Available in stock
Minimum order quantity: 3 pcs
| Quantity | Price per unit | You save |
|---|---|---|
| 1–9 pcs | 3,99 lei | — |
| 10–15 pcs | 3,79 lei | 5% (−0,20 lei/unit) |
| 16–20 pcs | 3,59 lei | 10% (−0,40 lei/unit) |
| 21+ pcs | 3,39 lei | 15% (−0,60 lei/unit) |
200A Copper Electrical Lug for Secure Connections
The 200A copper electrical lug with a 10.2mm diameter ensures stable and durable electrical connections for professional installations. Made from high-quality copper, it resists corrosion and provides optimal conductivity for high-current applications.
What you get with this product
- Maximum electrical conductivity thanks to its pure copper construction
- High corrosion resistance for long-term use
- Quick installation via secure mechanical crimping on the 10.2mm conductor
- 200A current capacity for high-load applications
- Perfect compatibility with industrial and residential electrical systems
- Ergonomic design with a mounting hole for easy installation
How it works and how to install it
The lug is installed by inserting the stripped conductor into the lug until it stops, then crimping it with a special tool to ensure perfect electrical contact. The 10.2mm hole allows attachment to standard screws or connection terminals.
Frequently Asked Questions
What cable thickness is this lug suitable for?
The lug is dimensioned for conductors with a diameter of 10.2mm, making it compatible with corresponding cable cross-sections.
Can it be used outdoors or in a wet environment?
Yes, copper has natural corrosion resistance, but it is recommended to protect connections exposed to weather.
Are special tools needed for installation?
Yes, for a secure connection, an electrical lug crimping tool is required.
Technical Specifications
| Current capacity | 200A |
| Conductor diameter | 10.2mm |
| Material | Copper |
| Connection type | Ring terminal |
| Package contents | 1 piece |
| EAN Code | 0781499722504 |
Warranty and support
The product benefits from a 2-year warranty in accordance with Romanian legislation, a 30-day return policy, and fast courier delivery throughout the country.
