Digital Multimeter VC9208N
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 95,99 lei | — |
| 3–4 pcs | 91,19 lei | 5% (−4,80 lei/unit) |
| 5–10 pcs | 86,39 lei | 10% (−9,60 lei/unit) |
| 11+ pcs | 81,59 lei | 15% (−14,40 lei/unit) |
Professional Digital Multimeter for Precise Electrical Measurements
The VC9208N digital multimeter is an essential tool for electrical diagnosis and troubleshooting at home or in the workshop. With a large LCD display and 19 measurement functions, it quickly solves electrical problems, from checking batteries to testing car circuits. It comes with all necessary cables, ready for immediate use right out of the box.
What you get with this product
- Multiple measurements in one device — AC/DC voltage up to 1000V, current up to 20A, resistance, capacitance, frequency, and temperature
- Automatic shutdown after disuse — saves battery by automatically turning off when not in use

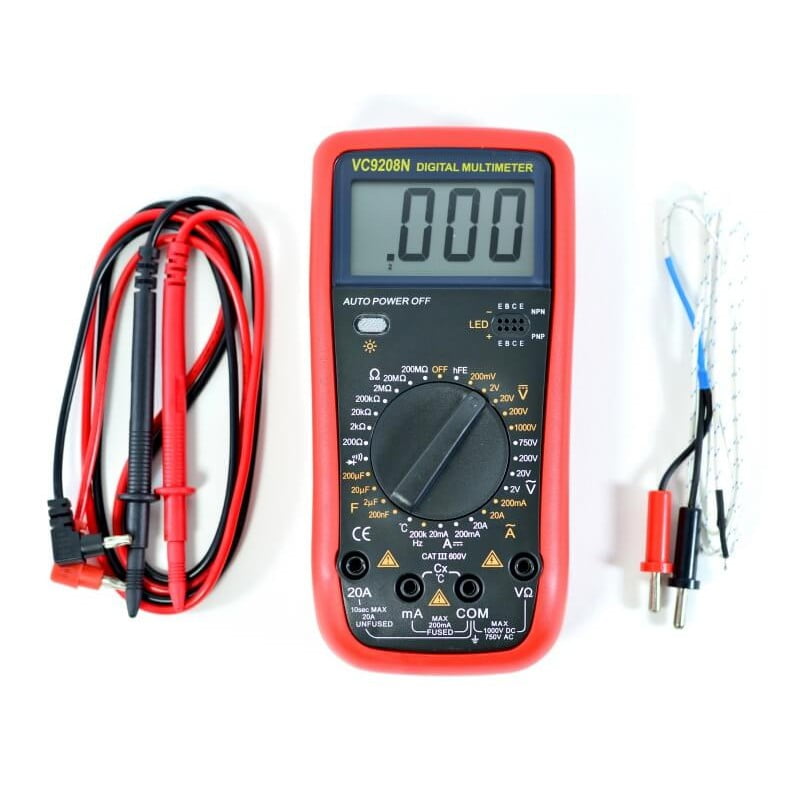

- Complete kit included — voltage test leads and temperature probe, start working immediately without additional purchases
- Clear LCD display with 1999 counts — read values quickly and accurately even in low light conditions
- Overload protection — integrated fuse for safe use

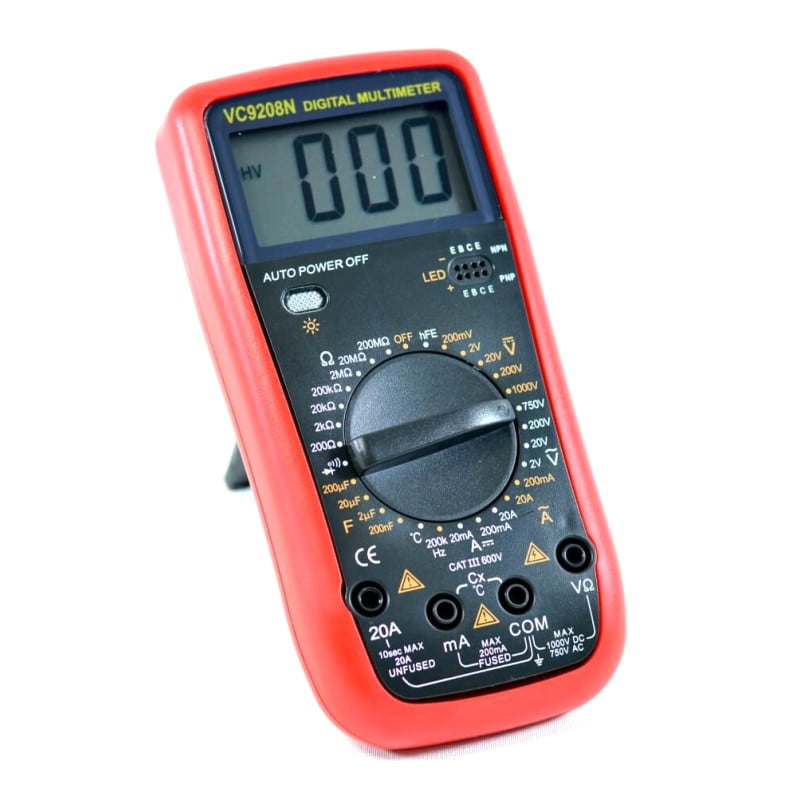

- Portable and easy to handle — ergonomic case with a foldable stand for stable positioning on the workbench
How it works and how to use it
Select the desired function by rotating the central knob to the required measurement type: voltage, current, resistance, capacitance, or temperature. Connect the test leads to the corresponding terminals and apply the measurement points to the circuit being checked. The digital display instantly shows the measured value with an accuracy of 0.5-2.5% depending on the parameter. The data hold function allows you to fix the last read value for subsequent checks.
Frequently Asked Questions
Can I measure the voltage from a power outlet with this multimeter?
Yes, it measures AC voltages up to 750V and DC voltages up to 1000V, making it suitable for household and automotive electrical installations.
What battery does it use and is it included in the package?
It operates with a 9V 6F22 type battery. The battery is not included in the package and must be purchased separately.
Can I test transistors and diodes with this device?
Yes, it has dedicated functions for testing diodes and transistors, as well as a continuity test with an audible signal.
Technical Specifications
| Model | VC9208N |
| Max. Display | 1999 counts |
| DC Voltage | 200mV - 1000V, accuracy ±0.5% +1dgt |
| AC Voltage | 20V - 750V, accuracy ±0.8% +3dgt |
| DC Current | 20mA - 20A, accuracy ±0.8% +1dgt |
| AC Current | 200mA - 20A, accuracy ±1.8% +3dgt |
| Resistance | 200Ω - 200MΩ, accuracy ±0.8% +1dgt |
| Capacitance | 2nF - 20μF, accuracy ±2.5% +3dgt |
| Frequency | 2kHz - 20kHz, accuracy ±1.5% +5dgt |
| Temperature | -40°C to 1000°C, accuracy ±0.75% +3dgt |
| Additional functions | Diode test, transistor test, continuity, data hold |
| Power Supply | 9V 6F22 type battery (not included) |
| Test lead length | Approximately 80cm |
| Auto Power Off | Yes |
| Package Contents | 1x Multimeter, 1x Voltage test leads, 1x Temperature probe |
