XLR Female Panel Mount Connector
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 6,99 lei | — |
| 3–4 pcs | 6,64 lei | 5% (−0,35 lei/unit) |
| 5–10 pcs | 6,29 lei | 10% (−0,70 lei/unit) |
| 11+ pcs | 5,94 lei | 15% (−1,05 lei/unit) |
XLR Female Panel Mount Connector for Fixed Installation

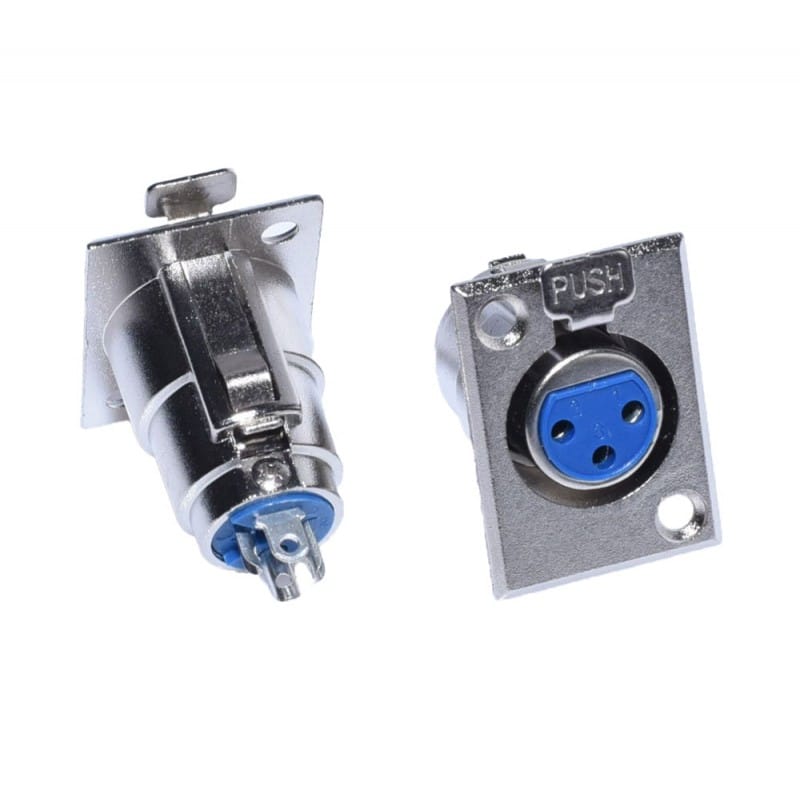

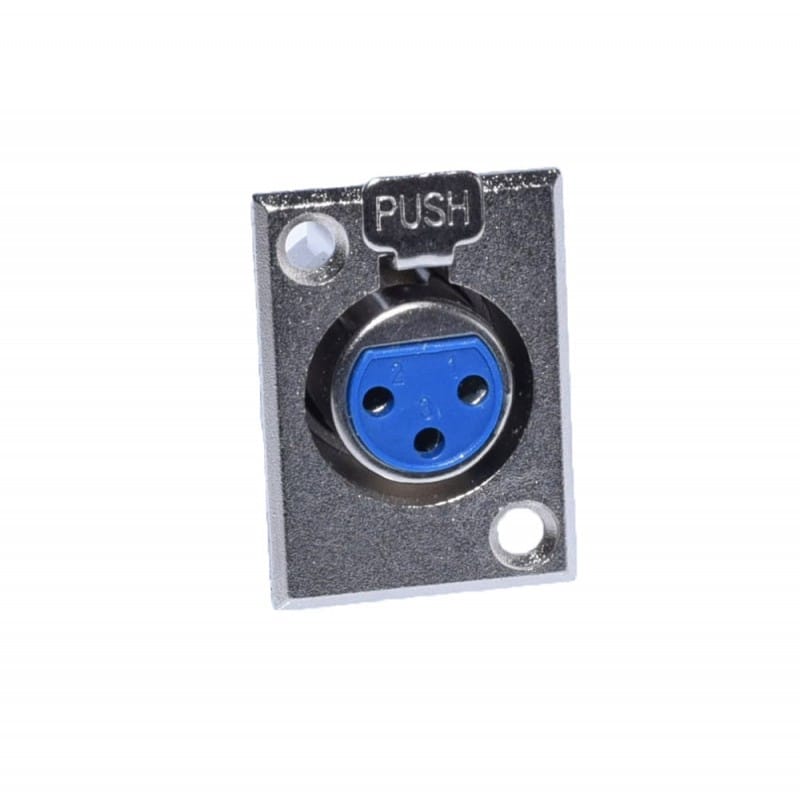

The XLR female panel mount connector is the compact solution for mounting an XLR audio connector directly onto the casing of a device, speaker, mixer, or control panel. Featuring a nickel-plated metal body and a blue 3-pin insert, it ensures a stable balanced connection in professional and semi-professional audio applications. The two-screw fastening guarantees a firm, secure fit that won't shift over time.
What you get with this product
- Secure balanced audio connection — the 3 contact pins plus the ground clip eliminate background noise and signal interference
- Fixed mounting on the device panel — the rectangular flange with two holes allows stable fastening with screws directly onto the casing

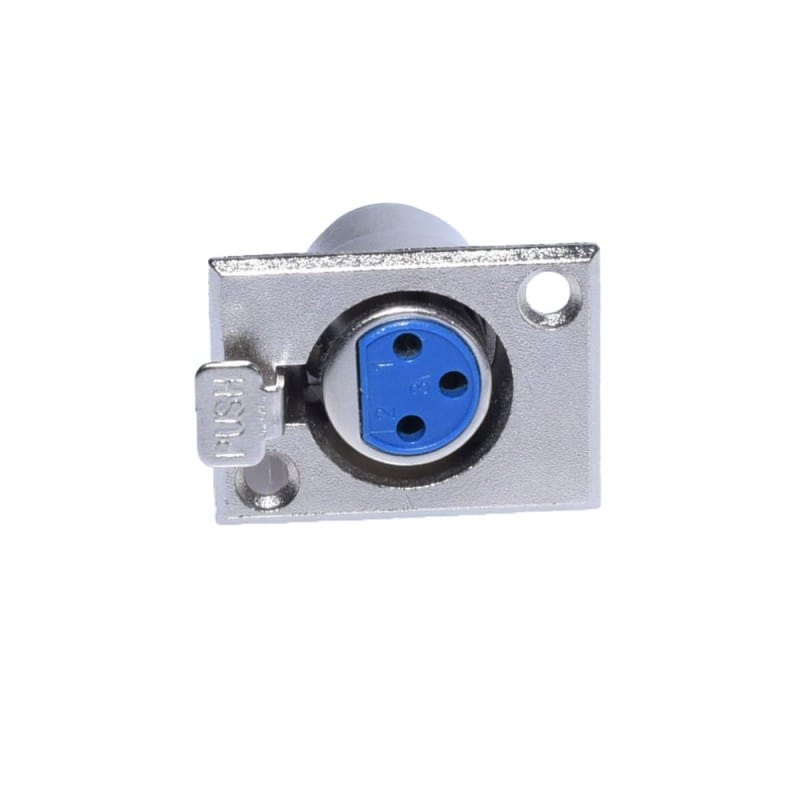

- Quick and controlled disconnection — the integrated PUSH button allows effortless removal of the XLR plug without damaging the connector
- Wide compatibility — suitable for microphones, audio stations, active speakers, electronic organs, and any equipment with a standard XLR input
- Durable construction — nickel-plated metal body resistant to corrosion, suitable for intensive use in the studio or on stage

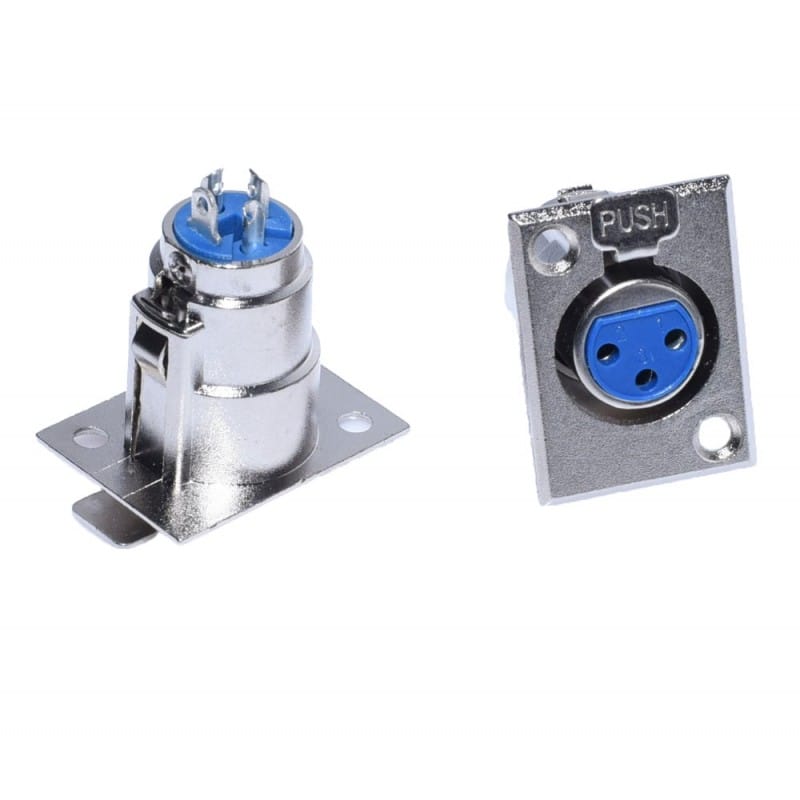

- Fast installation by soldering — the 4 terminals on the back (3 for signal, 1 for ground) allow direct wire connection without special tools
How it works and how to install it
The XLR female panel mount connector is installed by cutting a circular hole in the device panel, after which the rectangular flange is secured with two screws through the provided holes. The signal and ground wires are soldered to the 4 terminals on the back of the connector, following the standard XLR diagram (pin 1 ground, pin 2 positive signal, pin 3 negative signal). Once mounted, it accepts any standard XLR male plug, and the PUSH button allows safe disconnection without force.
Frequently asked questions
Does the XLR female panel mount connector fit any standard male XLR cable?
Yes, it complies with standard 3-pin XLR dimensions, making it compatible with any male XLR connector on the market.
How are the wires connected to this connector?

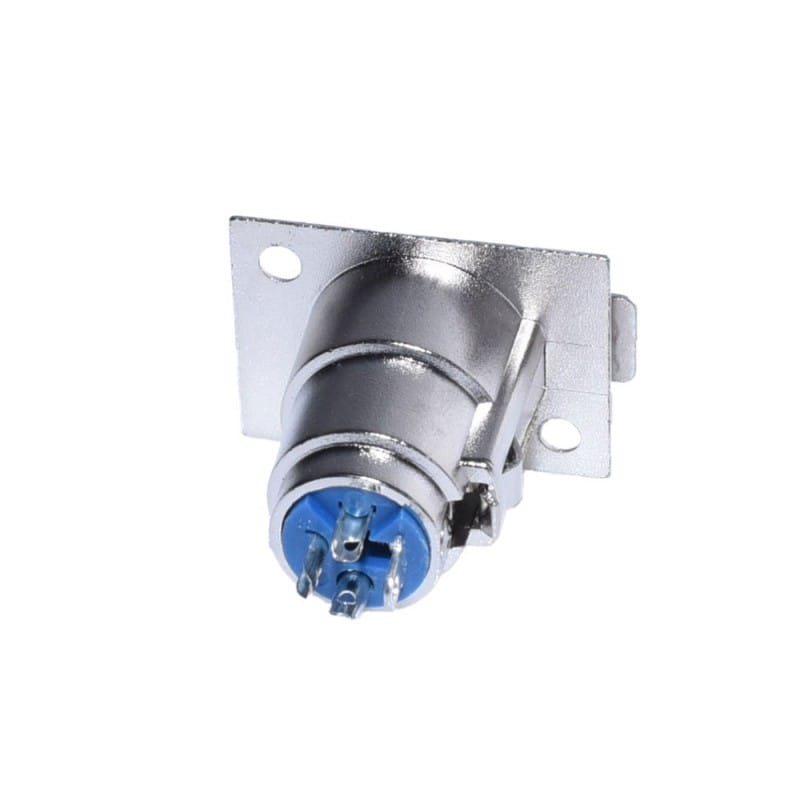

The connector has 4 metal terminals on the back — 3 for audio signal and one for ground — to which the wires are directly soldered with a common soldering iron.
What is the maximum panel thickness this connector supports for mounting?
The connector is designed for thin panels such as device casings or racks; with dimensions of 35 x 26 x 43 mm, check the available depth behind the panel before mounting.
Technical specifications
| SKU | Q-12B030 |
| Connector type | XLR female panel mount |
| Number of pins | 3 contact pins + 1 ground terminal |
| Dimensions | 35 x 26 x 43 mm |
| Body material | Nickel-plated metal |
| Insert | Blue plastic |
| Mounting type | Rectangular flange, 2 screws |
| Disconnection | Integrated PUSH button |
| Package contents | 1x XLR female panel mount connector |
| Brand | OEM |
Warranty and support
The product comes with a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days of receiving the package, no justification required. Delivery is fast via courier, with dispatch confirmation and parcel tracking.
