90° Angled Speak-on Male 4-Pin Speaker Connector
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 13,99 lei | — |
| 3–4 pcs | 13,29 lei | 5% (−0,70 lei/unit) |
| 5–10 pcs | 12,59 lei | 10% (−1,40 lei/unit) |
| 11+ pcs | 11,89 lei | 15% (−2,10 lei/unit) |

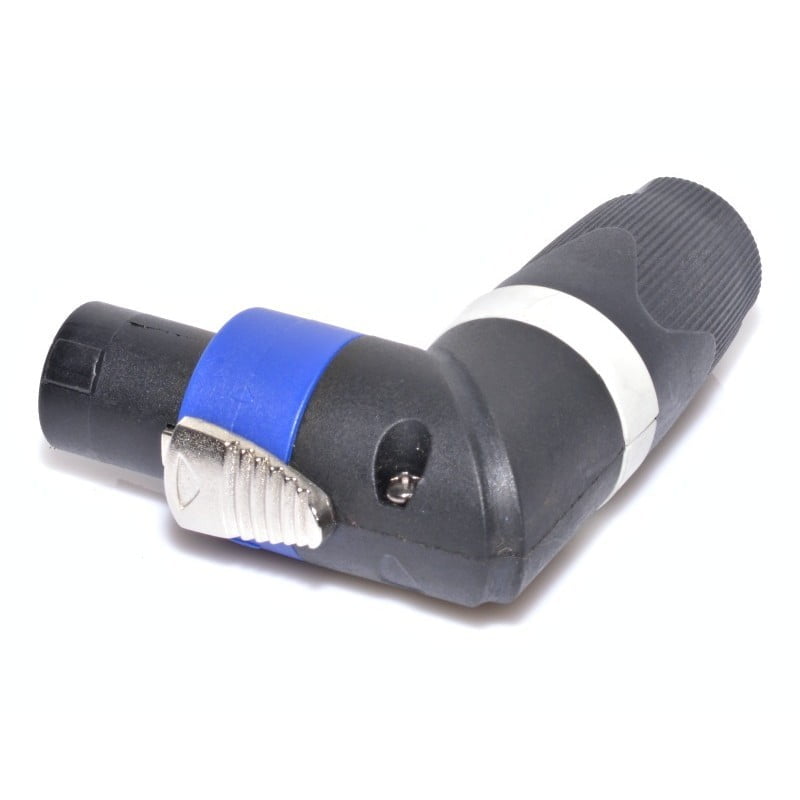

90-Degree Angled 4-Pin Speakon Male Connector
The 90-degree angled Speak-On male speaker connector is a practical solution for connecting speaker cables in tight spaces or when a straight cable angle would create mechanical tension on the connector. Designed for professional and hobby audio use, this 4-pin Speakon connector ensures a secure and stable connection between amplifiers, audio stations, mixers, and active or passive speakers.
What you get with this product
- Convenient connection in tight spaces — the 90-degree angle eliminates mechanical stress on the cable and port
- Stable connection with no risk of accidental disconnection — the metal clip locking system keeps the cable firmly secured in the connector
- Compatible with most professional audio equipment — works with power amplifiers, mixers, active and passive speakers, portable loudspeakers
- 4 contacts for maximum flexibility — allows for mono and stereo bridge cabling on the same connector
- Robust cable grip — integrated wire strain relief mechanism prevents pulling or loosening of the connection during intensive use
- Durable ABS plastic construction — solid body that withstands repeated use on stage or in the studio
How it works and how to install
The connector is mounted onto the cable by inserting the wires into the 4 contact pins and tightening the fixing screws with a small screwdriver. The cable grip mechanism is tightened separately to prevent strain on the terminals. Connecting to equipment is done by inserting the connector into the female Speakon port and rotating until it locks into position — no additional tools required.
Frequently Asked Questions
Is this connector compatible with standard Speakon ports on branded speakers?
Yes, the connector complies with the Speakon NL4 standard and fits any 4-pin female Speakon receptacle, regardless of the speaker or amplifier manufacturer.
What cable thickness does this connector accept?
The cable entry is dimensioned for speaker cables with an outer diameter of up to approximately 8 mm, covering the vast majority of standard speaker cables available on the market.
Can I use this connector for 2-pin speakers or do I need a special one?
The connector has 4 pins, but it can also be used with equipment with 2-pin Speakon ports — in this case, only pins 1+ and 1- are connected, the rest remaining unused.
Technical Specifications
| Connector type | Speakon male |
| Number of contacts | 4 pins |
| Angle | 90 degrees |
| Connection type | Wire (with tightening screws) |
| Body material | ABS plastic |
| Color | Black with blue ring |
| Package contents | 1x 90-degree angled 4-pin Speakon male speaker connector |
| SKU | Q-12B023 |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days of receiving the package, with no justification required. Delivery is fast by courier, with shipping confirmation and the ability to track the package.
