Cannon Male Connector Red
Available in stock
Minimum order quantity: 2 pcs
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 5,99 lei | — |
| 3–4 pcs | 5,69 lei | 5% (−0,30 lei/unit) |
| 5–10 pcs | 5,39 lei | 10% (−0,60 lei/unit) |
| 11+ pcs | 5,09 lei | 15% (−0,90 lei/unit) |

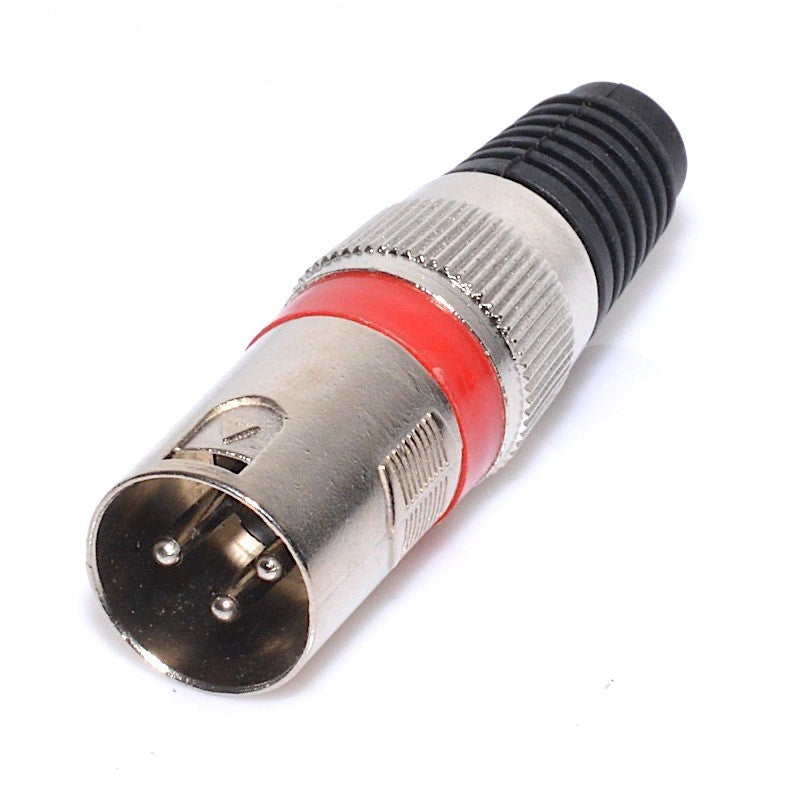

3-Pin Male Cannon Connector for Professional Audio Connections
The Male Cannon Connector with a red identification ring is a male XLR cable connector designed for professional audio installations in studios, on stage, or in rehearsal spaces. With three contact pins and a robust metal body, it ensures a stable and interference-free connection for microphones, amplifiers, and electronic instruments. The red colored ring allows for quick identification of channels in a rack or cable snake.
What you get with this product
- Quick channel identification in complex installations thanks to the distinctive red ring
- Secure and noise-free connection — metal pins ensure firm contact and good conductivity

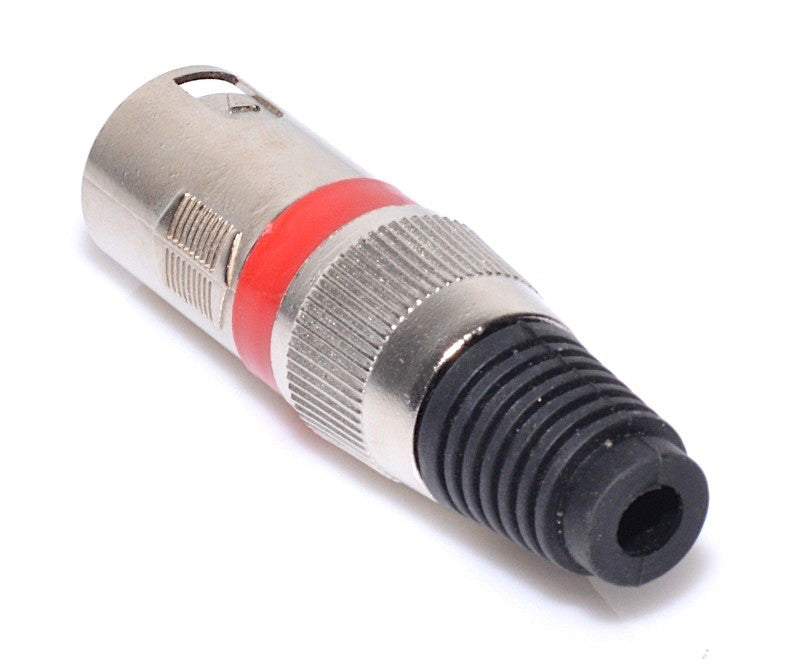

- Ribbed rubber sleeves protect the cable at the entry point and prevent wire breakage from repeated bending

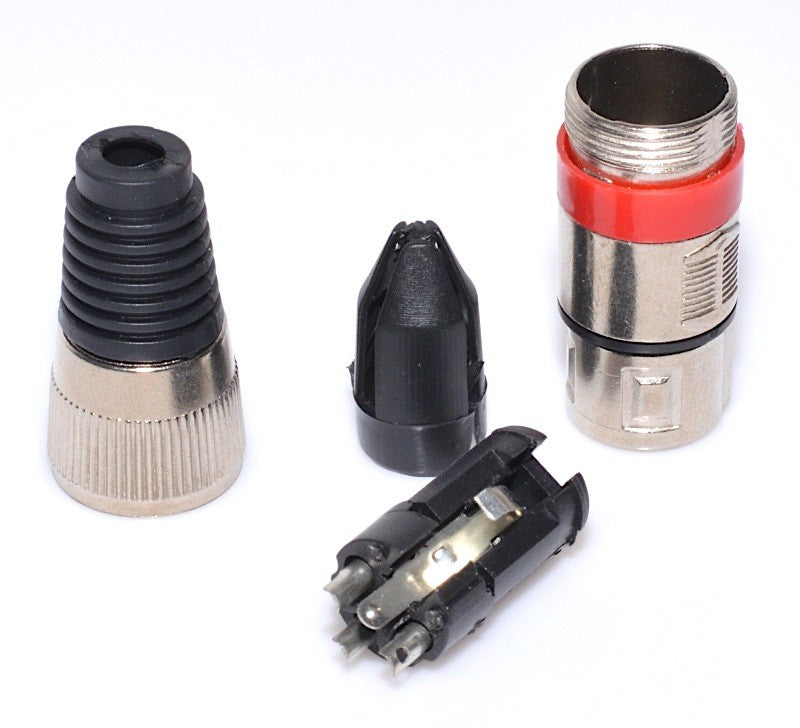

- Body detachable into four separate components — soldering pins to the conductor is simple and accessible to any audio technician
- Compatible with any audio equipment with standard female XLR connectors: microphones, mixing consoles, amplifiers, electronic organs
- Metal construction resistant to mechanical wear, suitable for frequent use on stage or in the studio
How it works and how to install it
The Male Cannon Connector is manually assembled onto the audio signal cable: the cable is inserted through the rubber sleeve and clamping nut, the three conductors are soldered to the corresponding pins, then the metal body is screwed on and the sleeve is tightened to secure the cable. The operation requires a standard soldering iron and basic knowledge of audio wiring, without special tools. Once assembled, the connector plugs directly into any compatible female XLR socket.
Frequently Asked Questions
Is the Red Male Cannon Connector compatible with all standard XLR equipment?
Yes, it complies with the 3-pin XLR standard and connects seamlessly to any female XLR socket on microphones, mixing consoles, amplifiers, or signal processors.
Can I solder this connector onto a microphone cable myself?
Yes, the connector is designed for solder mounting. You need a soldering iron, solder, and basic wiring knowledge — the pins are accessible and numbered according to the XLR standard.
What does the red ring mean, and are there variants in other colors?
The colored ring serves exclusively for visual identification of channels or signal types in a multi-cable setup. Similar variants with rings of other colors exist for complete system coding.
Technical Specifications
| Connector type | XLR Male (Cannon Male) cable mount |
| Number of pins | 3 |
| Connection type | Solder |
| Identification ring color | Red |
| Body color | Silver / Black |
| Body material | Metal (nickel-plated steel) |
| Cable sleeve material | Rubber |
| Number of components | 4 (body, nut, cable clamp, sleeve) |
| Package contents | 1 piece |
| SKU | Q-12B019 |
Warranty and Support
The product benefits from a 2-year warranty according to current Romanian legislation. We accept returns within 30 days of receiving the order, without requiring justification. Delivery is fast by courier, with shipping confirmation.
