Red Female Cannon Connector
Available in stock
Minimum order quantity: 2 pcs
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 5,99 lei | — |
| 3–4 pcs | 5,69 lei | 5% (−0,30 lei/unit) |
| 5–10 pcs | 5,39 lei | 10% (−0,60 lei/unit) |
| 11+ pcs | 5,09 lei | 15% (−0,90 lei/unit) |
Female Cannon 3-Pin Connector for Professional Audio Cables

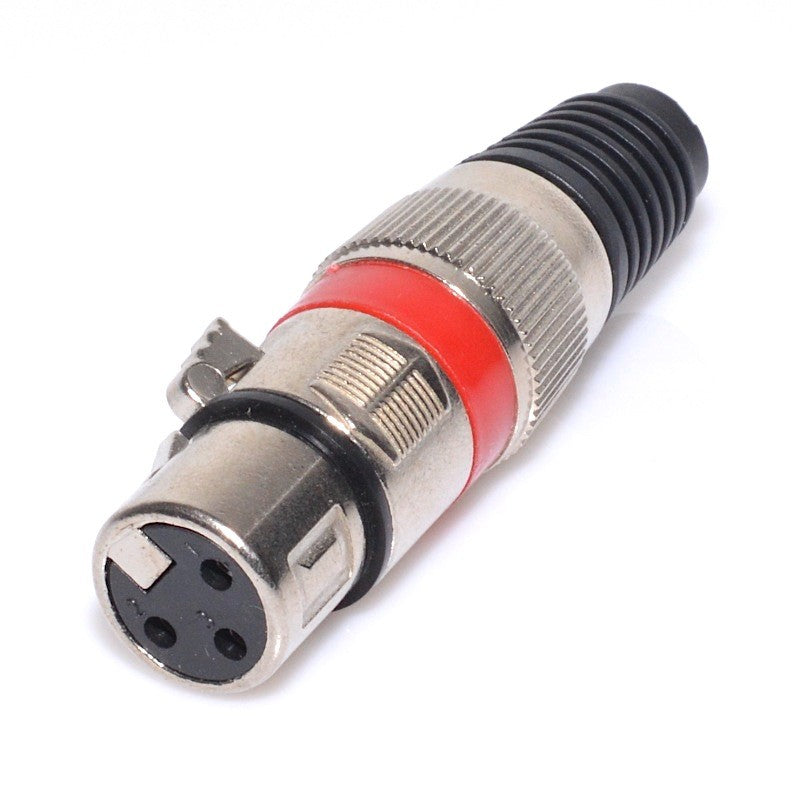

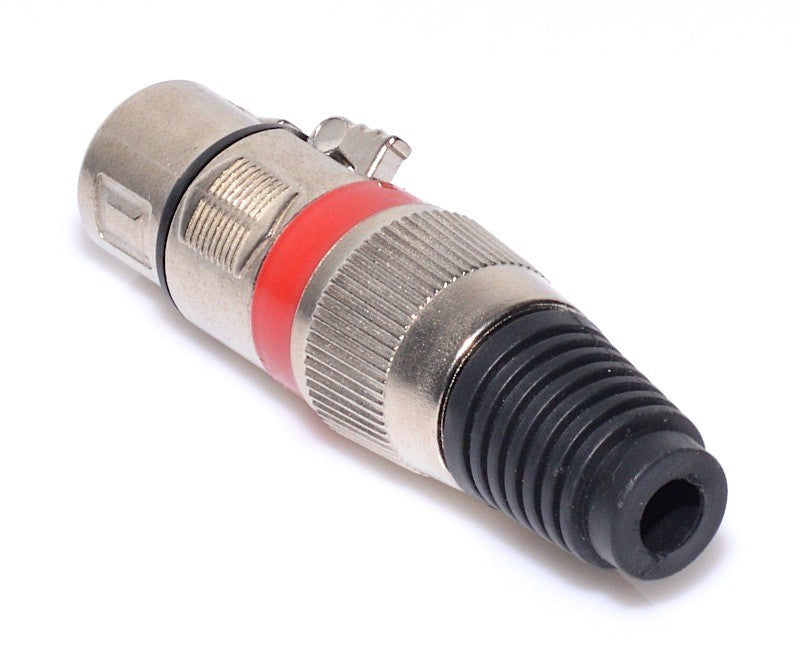

The female Cannon connector with a red ring is a 3-pin XLR female connector designed for professional audio installations and sound enthusiasts. The red colored ring allows for quick identification of channels or circuits in an installation with multiple cables. The robust metal construction and included strain reliefs ensure a stable and durable connection during repeated use.
What you get with this product
- Immediate visual channel identification — the red ring distinguishes the cable in complex racks or installations with multiple connectors
- Secure solder connection — exposed pins allow direct soldering, without additional adapters
- Cable protection included — the ribbed rubber boot at the back prevents sharp bends and premature cable wear
- Compatible with most audio equipment — microphones, amplifiers, electronic organs, mixers, and other devices with XLR input

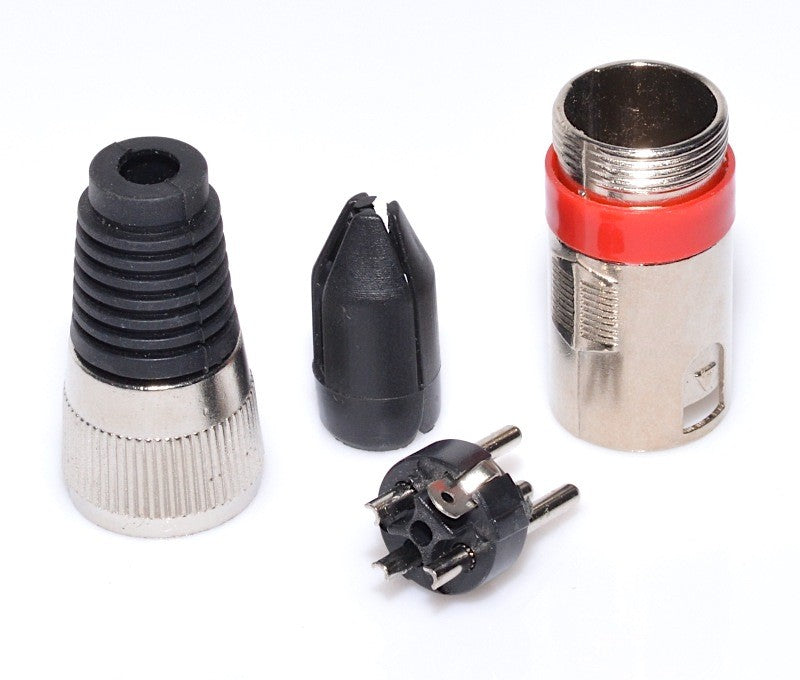

- 4-component disassemblable construction — metal body, red ring, cable anchor, and boot, easy to assemble and reattach to any cable
- 20-piece packaging available — suitable for installers, sound technicians, or studios needing backup stock
How it works and how to install
The 3-pin female Cannon connector is mounted on the audio signal cable by disassembling the four components: the rubber boot and fastening nut are threaded onto the cable before soldering, after which the three pins are soldered to the cable wires according to the standard XLR scheme (pin 1 ground, pin 2 positive signal, pin 3 negative signal). After the solder cools, the metal body is screwed on and tightened, and the boot is brought into its final position to protect the cable's exit area. No special tools are required other than a soldering iron and a small screwdriver.
Frequently Asked Questions
Is the female Cannon connector with a red ring compatible with standard XLR equipment?
Yes, it complies with the 3-pin XLR standard and connects seamlessly to any professional audio equipment with an XLR male connector, including microphones, mixers, and amplifiers.
What is the maximum cable diameter accepted by the included boots?
The rubber boots are designed for cables with a diameter of up to approximately 6 mm, covering the vast majority of commonly used microphone and signal cables.
Does the red ring have a functional or just an aesthetic role?
The ring primarily serves as a chromatic identification role, useful for quickly differentiating channels or circuits in an installation with multiple connectors — it does not affect the electrical performance of the connection.
Technical specifications
| Connector type | XLR Female (Cannon Female) |
| Number of pins | 3 |
| Termination type | Solder |
| Body material | Nickel-plated metal |
| Boot material | Rubber |
| Identification ring color | Red |
| Boot color | Black |
| Included components | Metal body, red ring, cable anchor, rubber boot |
| Quantity per box | 20 pieces |
| SKU | Q-12B020 |
| Brand | OEM |
Warranty and support
The product benefits from a 2-year legal warranty according to current Romanian legislation. Returns accepted within 30 days from the delivery date, at no additional cost if the product is in its original condition. Fast courier delivery throughout Romania.
