Female DC Power Jack 2.1mm, Cable Mount
Available in stock
Minimum order quantity: 6 pcs
| Quantity | Price per unit | You save |
|---|---|---|
| 1–9 pcs | 1,99 lei | — |
| 10–15 pcs | 1,89 lei | 5% (−0,10 lei/unit) |
| 16–20 pcs | 1,79 lei | 10% (−0,20 lei/unit) |
| 21+ pcs | 1,69 lei | 15% (−0,30 lei/unit) |

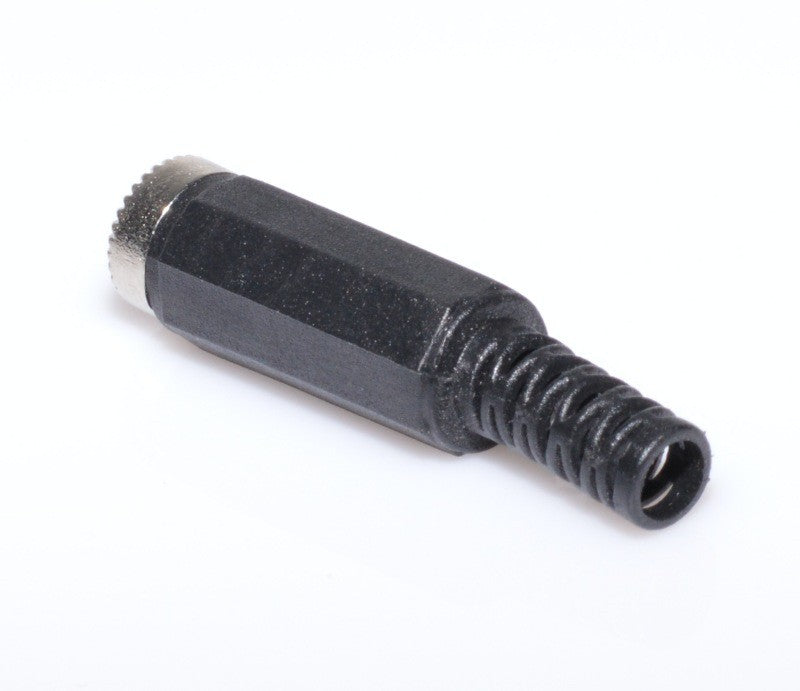

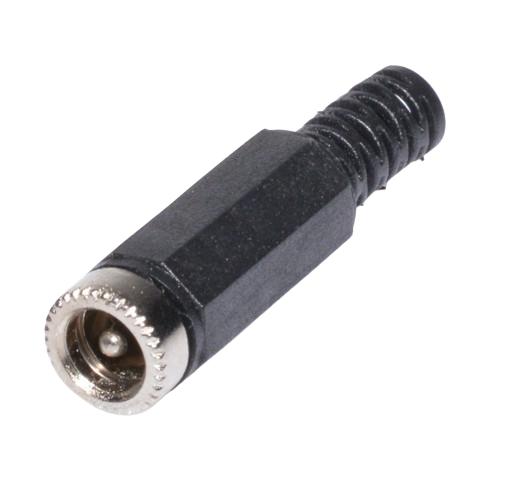

2.1mm Female DC Jack on Cable for Quick Connection
The 2.1mm female DC power jack on cable is a compact solution for creating or replacing power connections for a wide range of electrical and electronic equipment. Constructed from durable plastic and metal, this connector allows for two-wire soldering, ensuring a stable and long-lasting contact. Compatible with standard DC plugs and adapters with a 2.1mm pin, it is suitable for applications from LED systems to general electronic devices.
What you get with this product
- Universal compatibility with the 2.1mm inner pin — a standard used by hundreds of adapters and DC power supplies on the market
- Secure two-wire solder connection — stable electrical contact, without the risk of accidental cable disconnection
- Mechanical cable protection through the spiral entry plug — reduces bending stress and extends connection life
- Two-piece detachable body — easy access to soldering terminals, no special tools required
- Compact dimensions and low weight — integrates discreetly into any assembly or DIY enclosure
- 10mm connection depth and 6mm outer diameter — firm grip in standard panels or enclosures
How it works and how to install it

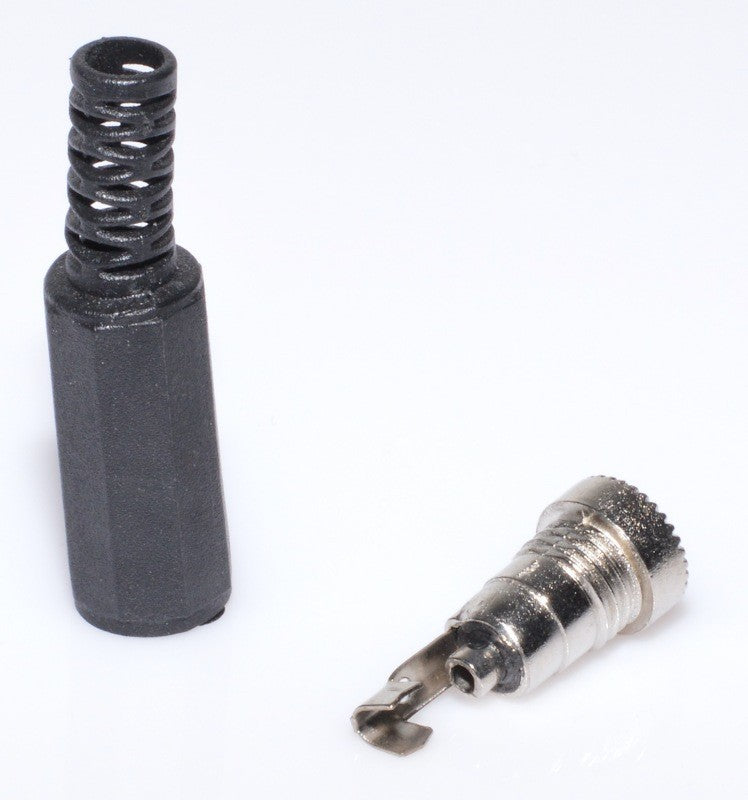

The connector disassembles into two components: the metallic body with soldering terminals and the plastic cap with cable protection. First, pass the cable through the cap, solder the two wires to the corresponding terminals on the metallic body, then screw the cap over the body to secure and protect the joint. No special tools are required — a regular soldering iron is sufficient for a clean and strong connection.
Frequently Asked Questions
Is this connector compatible with standard 12V DC adapters for LED strips?
Yes, the 2.1mm inner pin and 6mm outer diameter correspond to the standard used by most 12V adapters and power supplies for LED strips and similar equipment.
Can I connect the wire without using solder, with clamps or screws?
No, this connector is designed exclusively for soldered connections. The exposed metal terminals are intended for soldering wires with tin for a secure and permanent contact.
What is the maximum current supported by this DC connector?
The manufacturer does not specify a nominal maximum current in the available technical data. For high-current applications, we recommend checking compatibility with the cable cross-section used and not exceeding the typical limits for DC connectors of this size, generally 3-5A.
Technical Specifications
| SKU | Q-12C020 |
| Connector type | Female DC jack, on cable |
| Inner pin diameter | 2.1 mm |
| Inner jack diameter | 6 mm |
| Connection depth | 10 mm |
| Number of connection wires | 2 |
| Cable connection type | Soldering (tinning) |
| Current type | DC |
| Material | Plastic and metal |
| Package contents | 1 piece (also available in a set of 100 pieces) |
Warranty and Support
The product benefits from a 2-year warranty in accordance with Romanian legislation. You can return the product within 30 days of delivery if it does not meet your expectations. Delivery is fast via courier, with shipping confirmation.
