SMD 5730 COB LED Module, Blue
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 50,99 lei | — |
| 3–4 pcs | 48,44 lei | 5% (−2,55 lei/unit) |
| 5–10 pcs | 45,89 lei | 10% (−5,10 lei/unit) |
| 11+ pcs | 43,34 lei | 15% (−7,65 lei/unit) |

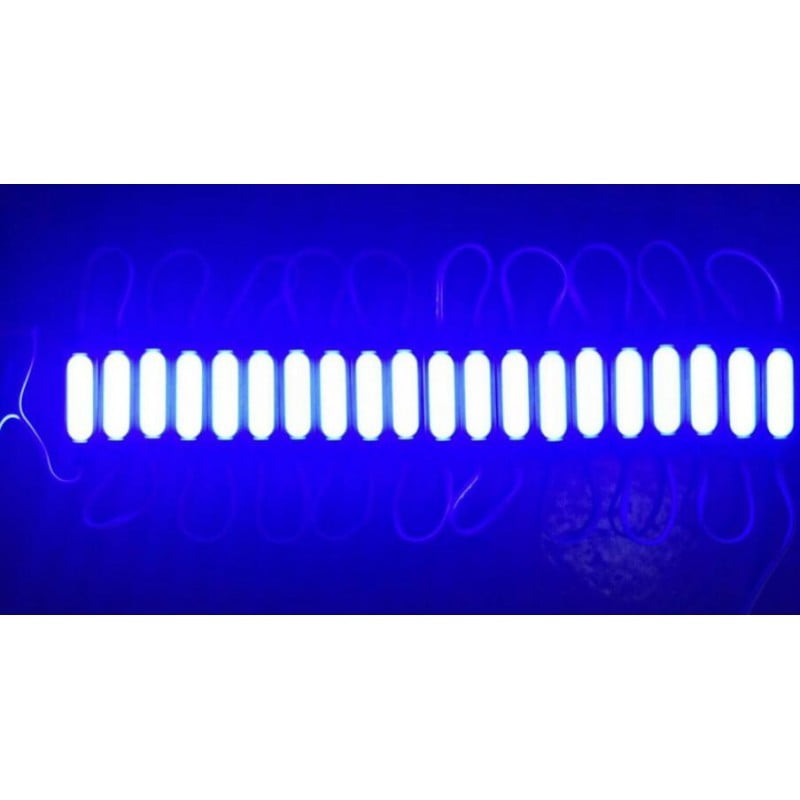

Blue SMD 5730 COB LED Module for Signs and Decorations
The blue SMD 5730 COB LED module group is designed for illuminating light signs, billboards, and indoor or outdoor decorations. With an IP65 protection rating, it resists humidity and can even be used in underwater applications such as aquariums or fountains. It operates at 12V DC, making it compatible with most advertising lighting systems.
What you get with this product
- Uniform and intense blue illumination — the 6 SMD 5730 COB LEDs per module produce 20-30 lumens each, ensuring high visibility for signs and displays
- IP65 water-resistant — can be installed outdoors or in high-humidity areas without risk of damage
- Low energy consumption — 2W per module, efficient for installations with many units connected in series
- Long operating life — up to 50,000 hours, significantly reducing replacement costs
- High versatility of use — suitable for billboards, interior decorations, aquariums, jewelry or shoe displays
- CE and RoHS certified — compliant with European safety and environmental protection standards
How it works and how to install
The module connects directly to a 12V DC power source via the included cables. Modules can be chained in series, with a recommended distance of approximately 80 mm between units, facilitating uniform coverage of large surfaces. Installation does not require advanced electrical knowledge — the cables connect simply to the power source, and the resistant plastic body allows fixing on almost any surface.
Frequently Asked Questions
How many modules can I connect in series to a single 12V source?
The number of modules depends on the power supply's wattage. Each module consumes 2W, so a 24W power supply can power up to 12 modules connected in series.
Can this LED module be used outdoors in the rain?
Yes, the IP65 protection rating ensures resistance to water jets and humidity, allowing outdoor installation or in high-humidity environments.
Is the blue color suitable for illuminated channel letter signs?
Yes, the blue SMD 5730 COB module is specifically designed for illuminating lightbox signs and channel letters, providing uniform and visible blue light.
Technical Specifications
| Model | SMD 5730 COB LED Module Group |
| SKU | Q-18B009 |
| Light color | Blue |
| LED type | SMD 5730 COB |
| Number of LEDs per module | 6 |
| Luminous flux | 20-30 lumens per LED |
| Supply voltage | DC 12V |
| Power consumption | 2W per module |
| Beam angle | 120 degrees |
| Lifespan | ~50,000 hours |
| Protection rating | IP65 — waterproof |
| CRI | ≥75 |
| Distance between modules | ~80 mm |
| Material | Plastic |
| Certifications | CE, RoHS |
| Package contents | 1 x Blue SMD 5730 COB LED Module Group |
Warranty and support
The product benefits from a 2-year warranty in accordance with current Romanian legislation. We accept returns within 30 days of the delivery date, without requiring a reason. Delivery is fast by courier, with shipping confirmation and tracking included.
