SMD 5730 COB LED Module, Cool White
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 50,99 lei | — |
| 3–4 pcs | 48,44 lei | 5% (−2,55 lei/unit) |
| 5–10 pcs | 45,89 lei | 10% (−5,10 lei/unit) |
| 11+ pcs | 43,34 lei | 15% (−7,65 lei/unit) |

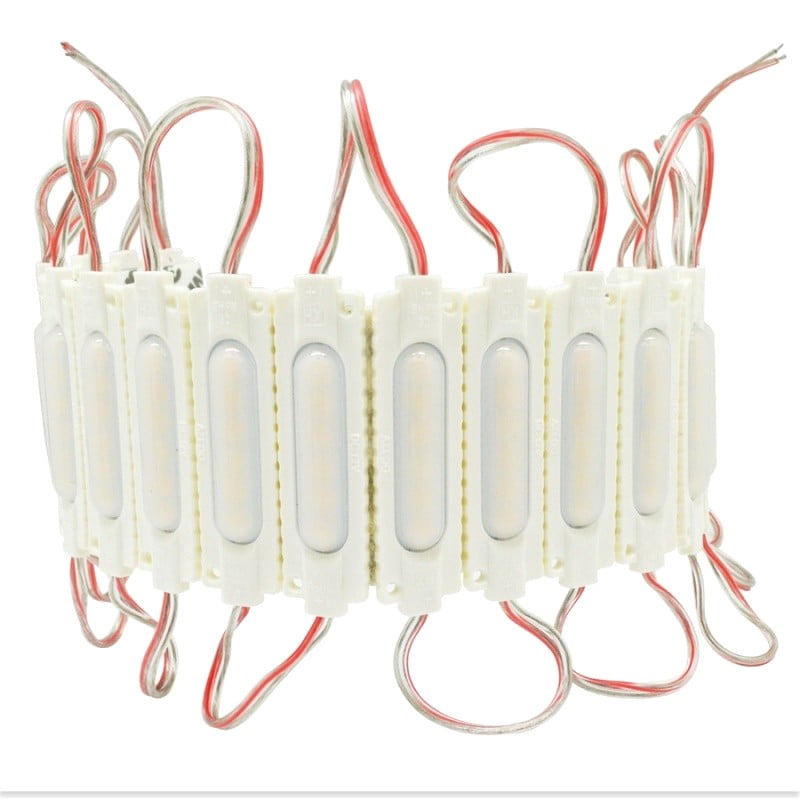

SMD 5730 COB LED Module for Advertising and Decorative Lighting
The SMD 5730 COB LED module in cool white is the practical solution for lighting light boxes, advertising panels, and indoor or outdoor decorative spaces. With an IP65 protection rating, it resists humidity and can even be used in semi-submersible applications. Connecting modules in a chain allows for covering any surface without complex additional equipment.
What you get with this product
- Uniform and efficient lighting — SMD 5730 COB chip with a 120-degree emission angle covers large areas without dark spots
- IP65 water resistance — you can install modules outdoors or in high-humidity areas without risk of damage
- Low power consumption — only 2W per module, keeping your electricity bill low even for extensive installations
- Lifespan of up to 50,000 hours — rare replacement, virtually zero maintenance
- Simple series connection — standard distance of ~80mm between modules allows for easy expansion without complex cutting or rewiring
- CE and RoHS certified — the product complies with European electrical safety standards and is free from hazardous substances
How it works and how to install
The module is powered by 12V DC and connects directly to a compatible power supply. Modules are linked in a chain using the included connecting wires, without the need for soldering or advanced electrical knowledge. Fixing to the surface is done with double-sided adhesive tape or screws, depending on the destination surface.
Frequently Asked Questions
How many modules can I connect in series to a single 12V power supply?
The maximum number depends on the power supply's capacity — each module consumes 2W, so a 24W power supply supports up to 12 modules connected in a chain.
Can this module be installed outdoors, on an advertising panel?
Yes, the IP65 protection rating makes it suitable for outdoor use, protecting against rain and dust under normal operating conditions.
What color temperature does the cool white variant have?
Cool white corresponds to a color temperature of approximately 6000-6500K, providing a clear and contrasting light, ideal for advertising and display windows.
Technical Specifications
| LED Type | SMD 5730 COB |
| Light Color | Cool White (~6000-6500K) |
| Input Voltage | DC 12V |
| Power Consumption | 2W / module |
| Luminous Flux | 20-30 lumens / LED |
| Beam Angle | 120 degrees |
| Distance between modules | ~80mm |
| Protection Rating | IP65 |
| Color Rendering Index | CRI ≥ 75 |
| Lifespan | ~50,000 hours |
| Housing Material | Plastic |
| Certifications | CE, RoHS |
| SKU | Q-18B006 |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with Romanian legislation. We accept returns within 30 days of receiving the order, without requiring justification. Delivery is fast via courier, with shipping confirmation and tracking included.
