Mini Siren for Alarm 24V - 105dB / LZQ 1M
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 20,99 lei | — |
| 3–4 pcs | 19,94 lei | 5% (−1,05 lei/unit) |
| 5–10 pcs | 18,89 lei | 10% (−2,10 lei/unit) |
| 11+ pcs | 17,84 lei | 15% (−3,15 lei/unit) |

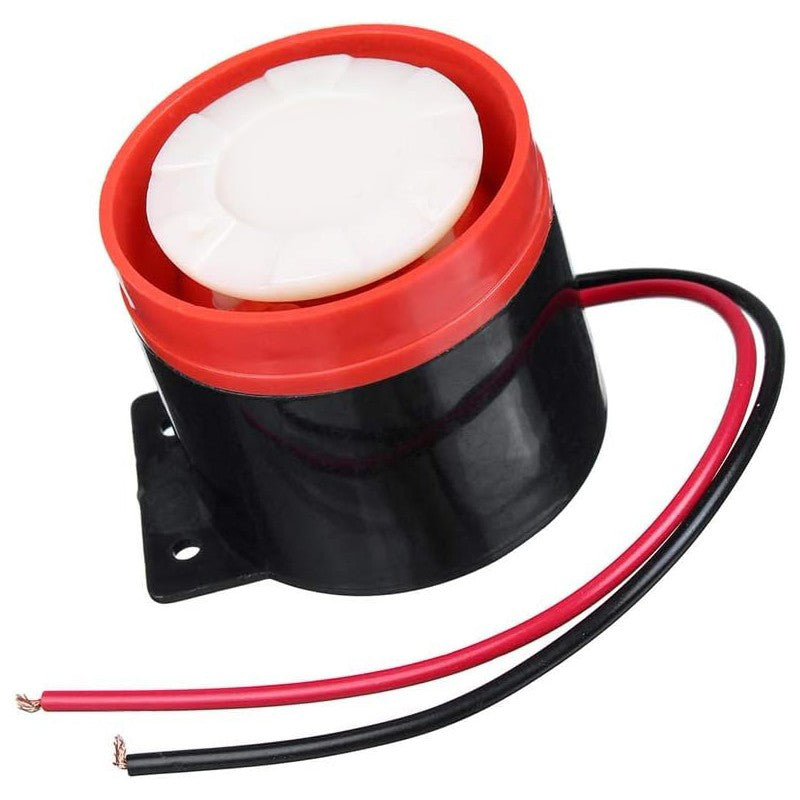

Compact 24V alarm siren with 105dB sound output
The 24V mini alarm siren is designed for security systems where mounting space is limited, but the alert level cannot be compromised. With a sound level of 105dB and 24V DC power supply, it integrates directly into alarm control panels, car systems, or industrial installations. Its small dimensions allow for discreet mounting in hard-to-reach places, without sacrificing signaling efficiency.
What you get with this product
- 105dB sound level — powerful enough to attract attention in noisy or distant areas, without needing an external amplifier
- Compact dimensions of 54x50mm — mounts discreetly in electrical panels, behind panels, or in hidden places, without being visible
- Direct 24V DC power supply — compatible with most standard alarm control panels and industrial systems
- Simple two-wire cabling (red/black) — quick connection without special connectors, no additional configuration

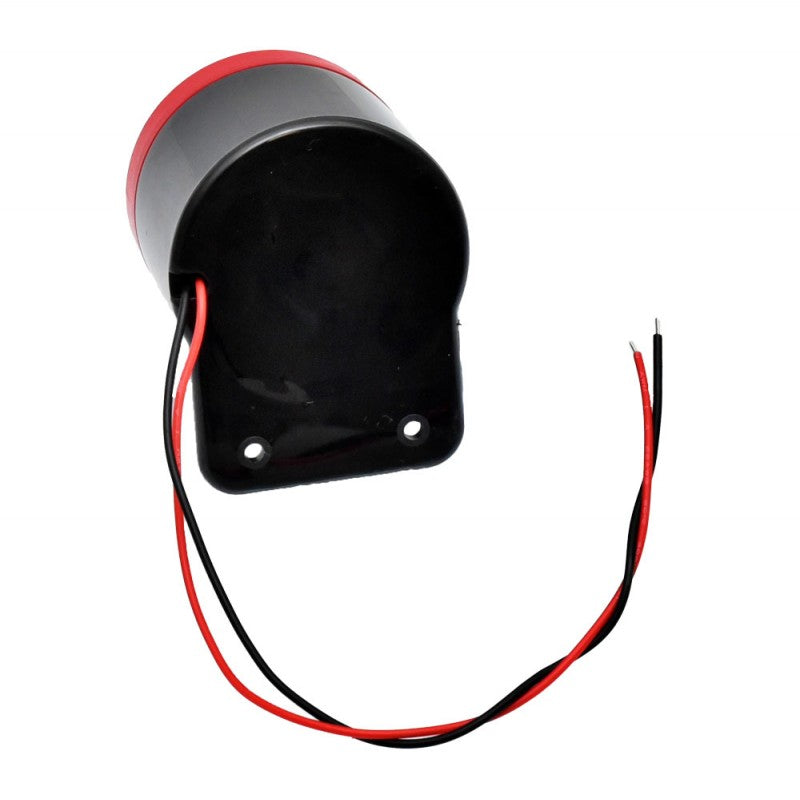

- Mounting bracket included — integrated mounting plate with two holes allows stable attachment to any flat surface

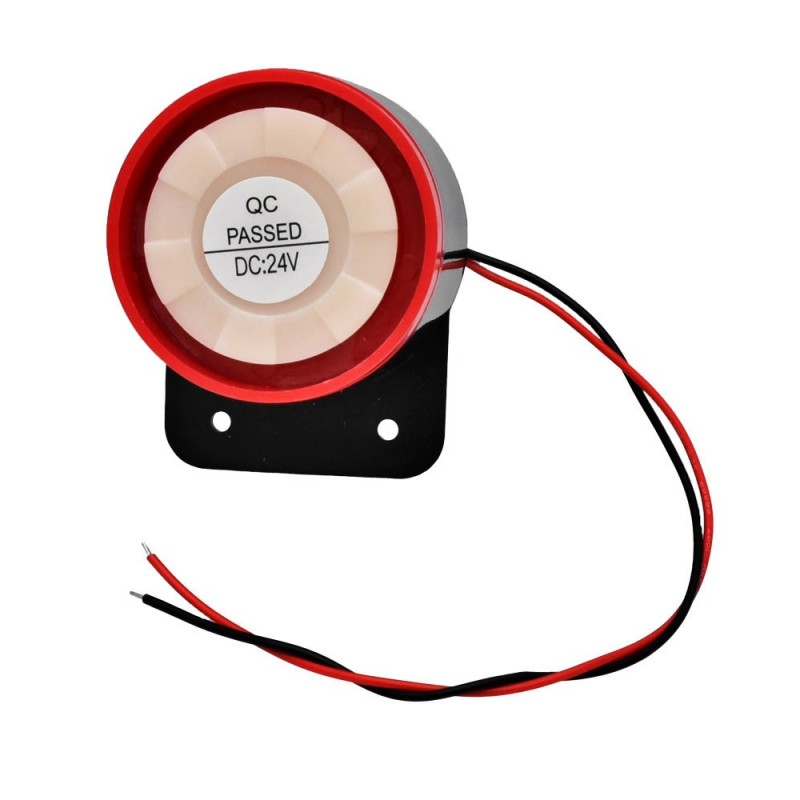

- Verified quality control — each unit bears the QC Passed label, indicating individual testing before shipment
How it works and how to install it
The siren works by directly connecting the two wires to the 24V DC source: red wire to positive, black wire to negative. It does not require a driver or intermediate circuit — it activates immediately once voltage is applied. Mounting is done by screwing the mounting plate onto the desired surface, using the two existing holes. The entire operation takes a few minutes and does not require advanced electrical knowledge.
Frequently Asked Questions
Does this siren work with a 12V alarm control panel?
No, the siren is designed exclusively for 24V DC power supply. Using it with a different voltage may damage the component or significantly reduce the sound level.
How loud is 105dB in practice?
105dB is equivalent to a truck horn at close range — enough to alert people inside a building or courtyard, even with the windows closed.
Can it be mounted outdoors, on a wall?
The plastic construction offers basic protection, but the manufacturer does not specify a certified IP rating for outdoor use. Mounting in covered or protected areas from direct precipitation is recommended.
Technical specifications
| SKU | Q-14G019 |
| Supply voltage | 24V DC |
| Sound level | 105dB |
| Dimensions | 54 x 50 mm |
| Housing material | Plastic |
| Connection type | 2 wires (red +, black -) |
| Mounting | Mounting plate with 2 holes |
| Quality control | QC Passed (individual verification) |
| Brand | OEM |
Warranty and support
The product benefits from a 2-year legal warranty according to current Romanian legislation. You can return the product within 30 days of delivery, without needing a justification. Delivery is carried out quickly by courier, with dispatch confirmation.
