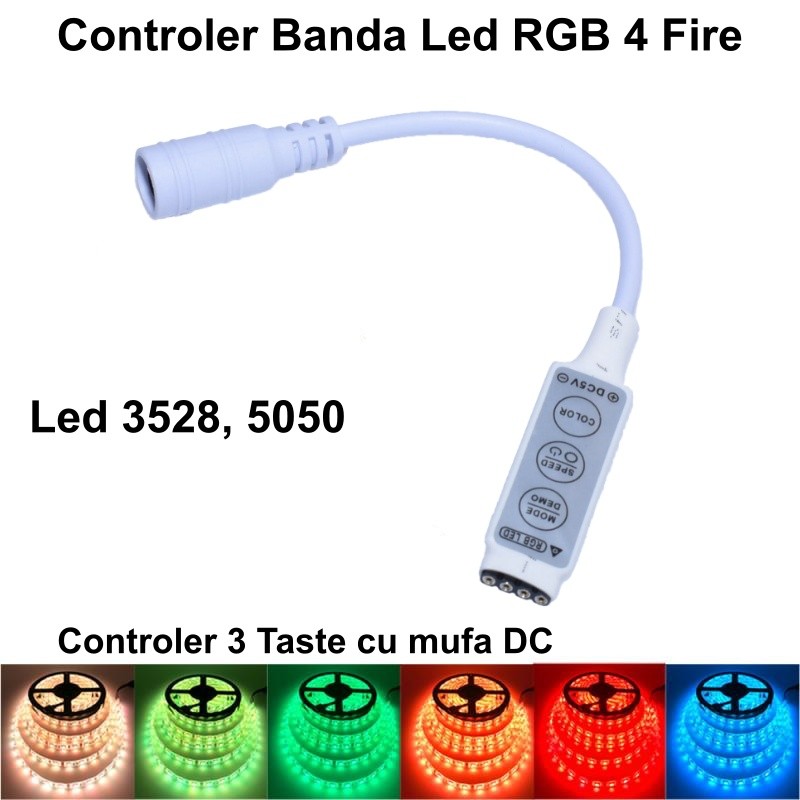

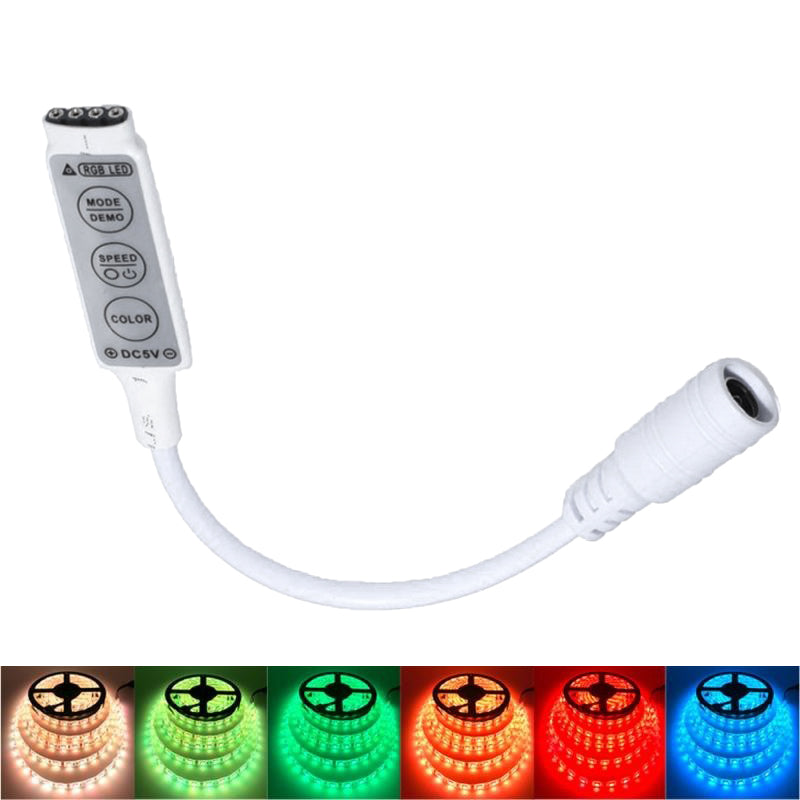

Mini-Controller RGB LED Strip, DC Plug
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 10,99 lei | — |
| 3–4 pcs | 10,44 lei | 5% (−0,55 lei/unit) |
| 5–10 pcs | 9,89 lei | 10% (−1,10 lei/unit) |
| 11+ pcs | 9,34 lei | 15% (−1,65 lei/unit) |
Control the colors of the RGB LED strip via the DC jack
The mini-controller for RGB LED strips with a DC jack is the compact solution for managing lighting effects on multicolored 3528 or 5050 type strips. With the 3 dedicated keys — COLOR, SPEED, and MODE/DEMO — you can instantly change the color, effect speed, or display mode, without additional equipment. Its small size and direct connection via a 2.1mm DC jack make it ideal for both home projects and commercial applications.
What you get with this product
- Complete control of the RGB strip's color and effects from a single point, without a separate remote control
- Compatible with 3528 and 5050 LED strips powered between 5V and 24V DC — works with most standard power sources
- Quick connection via 2.1mm DC jack — no soldering or electrical knowledge required
- Three operating modes (COLOR, SPEED, MODE DEMO) for static or dynamic effects, adaptable to any space
- Miniature format with 15 cm cable — easily hides behind furniture, under shelves, or in cable channels
- Dimming function (dimmable) — adjustable brightness according to preference or scene needs
How it works and how to install it
The controller connects between the DC power source and the 4-contact RGB LED strip: the female DC jack takes power from the adapter, and the output terminals are fixed directly to the LED strip's pins. Installation requires no special tools — connect the jack, fix the wires to the strip, and you're ready in minutes. The 3 buttons on the casing allow you to select the desired color, adjust the transition speed, and activate automatic demo modes.
Frequently asked questions
Does this controller work with a 12V LED strip?
Yes, the controller accepts voltages between 5V and 24V DC, so it is compatible with standard 12V and 24V strips, as well as those powered at 5V via USB with a DC adapter.
Can I use this controller with a white LED strip, not RGB?
No, this controller is designed exclusively for 4-contact RGB LED strips (R, G, B + common). It is not compatible with monochrome or RGBW strips.
What is the maximum length of LED strip it can control?
The controller supports RGB LED strips within the maximum allowed current at the used supply voltage; for applications longer than 5 meters, it is recommended to check the strip's consumption against the power supply's capacity.
Technical Specifications
| SKU | Q-18A103 |
| Product Type | Mini-controller RGB LED strip |
| Strip Compatibility | RGB LED 3528, RGB LED 5050 |
| Number of output contacts | 4 wires (RGB + common) |
| Number of buttons | 3 (COLOR, SPEED, MODE/DEMO) |
| Operating modes | Color, Speed, Mode Demo |
| Supply voltage | 5V - 24V DC |
| Input jack | DC female 2.1mm |
| Cable length | 15 cm |
| Dimmable | Yes |
| Housing material | Plastic, metal |
| Package contents | 1 x Mini-controller RGB LED strip with DC jack |
| Brand | OEM |
Warranty and support
The product benefits from a 2-year legal warranty according to Romanian legislation in force. Returns accepted within 30 days of delivery, without the obligation to provide a reason. Fast courier delivery throughout Romania.
