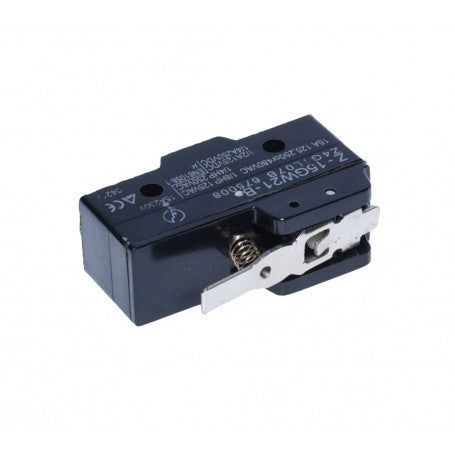

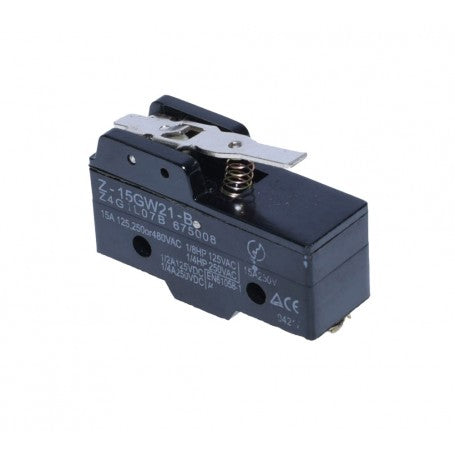

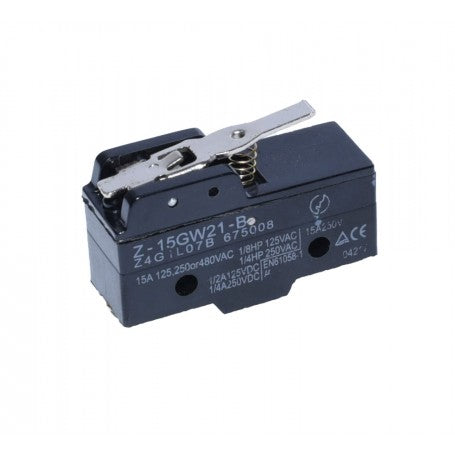

Z15 Limit Switch with Short Rod 40mm, 15A, 250V AC Voltage
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 10,99 lei | — |
| 3–4 pcs | 10,44 lei | 5% (−0,55 lei/unit) |
| 5–10 pcs | 9,89 lei | 10% (−1,10 lei/unit) |
| 11+ pcs | 9,34 lei | 15% (−1,65 lei/unit) |
Z15 limit switch with short rod for automatic control
Z15GW21-B limit switch with push-button actuation, designed for automatic control of industrial and domestic devices. 15A capacity at 250V AC, short rod of 40mm and actuation travel of 8mm for maximum precision. Ideal for garage doors, automatic gates, blinds, production lines and industrial machinery.
What you get with this product
- Precise control of mechanical strokes with instant actuation at 8mm rod displacement
- Universal installation on any type of equipment — compatible with garage doors, gates, blinds, automatic machinery
- High load resistance — supports up to 15A, suitable for motors and industrial installations
- The flame-retardant ABS plastic body protects against overheating and guarantees long-term safety
- Quick screw mounting — compact dimensions 49x18x29mm, integrates into narrow spaces
- Industrial durability with wear-resistant metal contacts for thousands of operating cycles
How it works and how to install

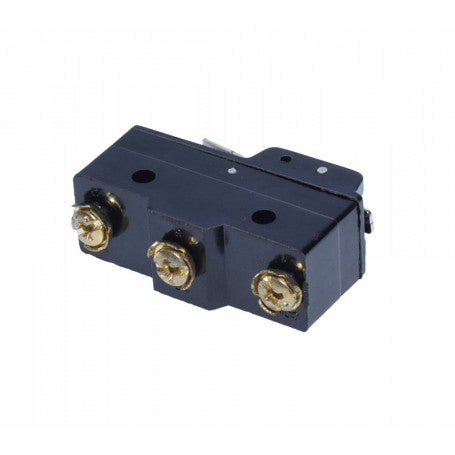

The limit switch is fixed to the frame or structure of the equipment, and the rod is actuated by the movable element (door, mechanical arm, etc.). When the rod is pressed by a minimum of 8mm, the electrical contact is instantly interrupted or closed, stopping or starting the motor. Fixing is done with screws in the holes in the plastic body, and electrical connection through the 3 terminals.
No special tools required — just a screwdriver and standard electrical connectors. Test manual actuation before commissioning to check the correct travel and position.
Frequently asked questions
How far must the rod be pressed to actuate the contact?
The actuation travel is 8mm — the contact is activated as soon as the rod moves 8 millimeters.
Can I use the limit switch for a garage door with a 220V motor?
Yes, the limit switch supports 250V AC and 15A, being perfectly compatible with standard garage door motors.
Is it wear-resistant if pressed daily?
Yes, the metal contacts and robust construction are designed for intensive industrial use, withstanding thousands of cycles.
Technical specifications
| Model | Z15GW21-B |
| Maximum amperage | 15A |
| Supply voltage | 250V AC |
| Contact type | Short rod |
| Rod length | 40mm |
| Actuation travel | 8mm |
| Actuation type | Instant by pushing |
| Dimensions | 49 x 18 x 29/35mm |
| Body material | Flame-retardant ABS plastic |
| Contact material | Metal |
| EAN | 0781499724102 |
Warranty and support
The product benefits from a 24-month warranty in accordance with current Romanian legislation. 30-day return policy and fast delivery by national courier throughout Romania.
