Micro Switch with Long Lever KW8, 16A, Voltage 250V AC
Available in stock
Minimum order quantity: 4 pcs
| Quantity | Price per unit | You save |
|---|---|---|
| 1–9 pcs | 2,99 lei | — |
| 10–15 pcs | 2,84 lei | 5% (−0,15 lei/unit) |
| 16–20 pcs | 2,69 lei | 10% (−0,30 lei/unit) |
| 21+ pcs | 2,54 lei | 15% (−0,45 lei/unit) |

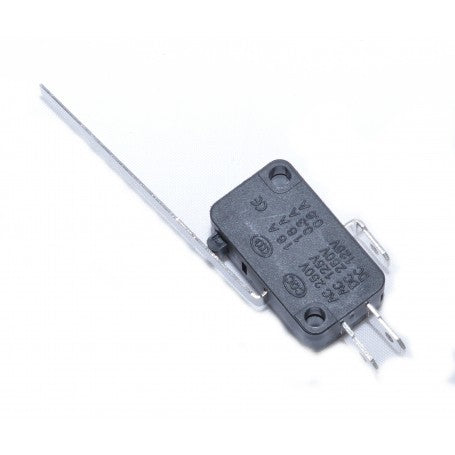

Micro-limit switch with long rod for industrial automation
This limit switch with a long 53mm rod offers precise control for automation systems, doors, motors, and lighting. With a capacity of 16A at 250V AC, it ensures safe switching in industrial and residential applications. Robust design with flame-retardant ABS plastic and durable metal contacts.
What you get with this product
- Precise control via a 53mm long rod, ideal for automation where access is limited
- High switching capacity of 16A at 250V AC, suitable for both industrial and domestic circuits
- Multiple contacts (common, NC, NO) for maximum flexibility in circuit configuration
- Flame-retardant ABS plastic housing for increased safety in thermal risk environments
- Compact dimensions 27x16x10mm allow mounting in narrow spaces and metal profiles
- Reliable operation at 125V DC, also compatible with direct current systems
How it works and how to install it
The limit switch is activated by pressing the long 53mm metal rod. When the rod is pressed, the internal contacts switch between normally closed and normally open positions. Mounting is done by fixing it to the surface or in a metal profile, using the mounting holes in the housing. Electrical connection is made via faston terminals, without the need for soldering. Suitable for refrigerator doors, cabinets, conveyor belts, automatic gates, and lighting systems with opening activation.
Frequently Asked Questions
Can it be used at voltages lower than 250V?
Yes, it works perfectly at any voltage between 12V and 250V AC, or up to 125V DC.
How much does the rod need to be pressed to activate the contacts?
The actuation travel is approximately 3-5mm, sufficient for safe activation without excessive effort.
Does it withstand intensive use in industrial automation?
Yes, it is designed for repeated switching cycles, with wear-resistant metal contacts and a flame-retardant housing.
Technical specifications
| Supply voltage | 250V AC / 125V DC |
| Maximum current | 16A (AC) / 0.3A (DC) |
| Contact type | Common, NC (normally closed), NO (normally open) |
| Actuation type | Rod push |
| Rod length | 53mm |
| Housing dimensions | 27 x 16 x 10mm |
| Overall dimensions | 74 x 27 x 10mm |
| Housing material | Flame-retardant ABS plastic |
| Rod and contact material | Metal |
Warranty and support
The product benefits from a 24-month warranty according to Romanian law for manufacturing defects. Right of return within 30 days of purchase. Fast delivery by national courier with phone confirmation.
