Flexible Wire Rope Limit Switch CSA-061
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 61,99 lei | — |
| 3–4 pcs | 58,89 lei | 5% (−3,10 lei/unit) |
| 5–10 pcs | 55,79 lei | 10% (−6,20 lei/unit) |
| 11+ pcs | 52,69 lei | 15% (−9,30 lei/unit) |

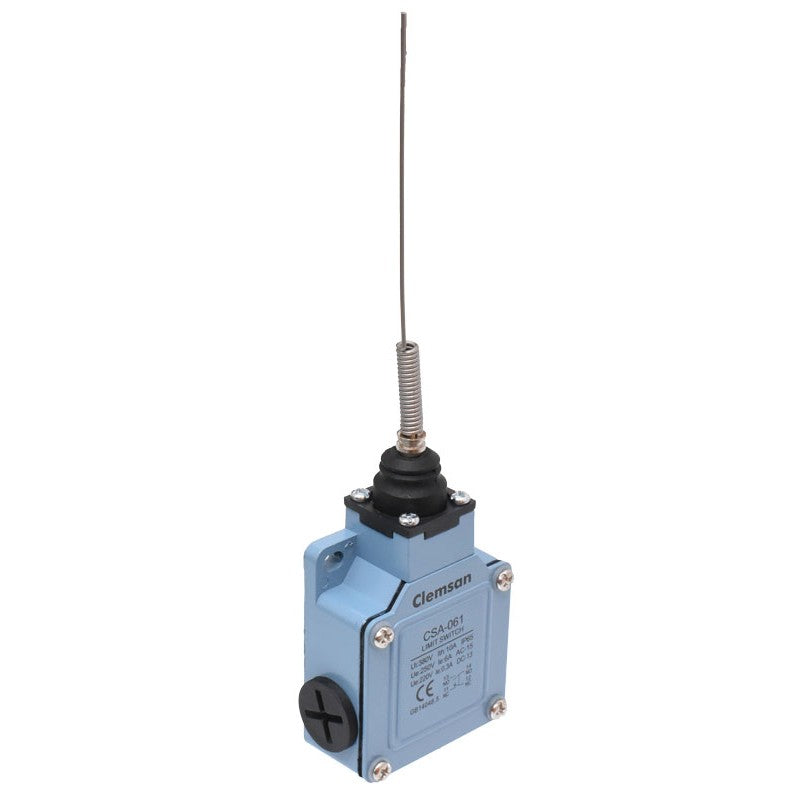

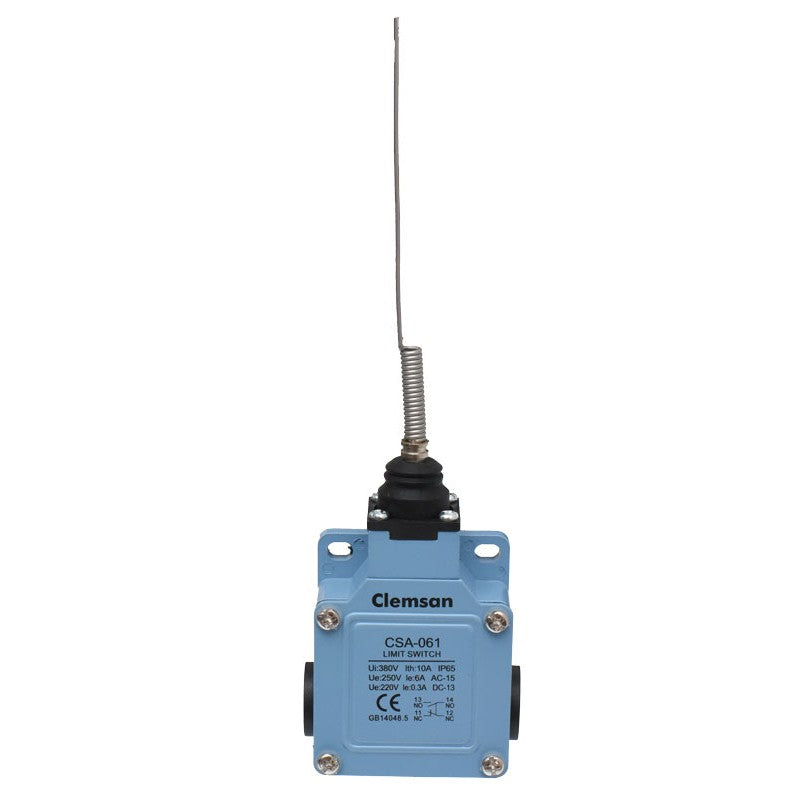

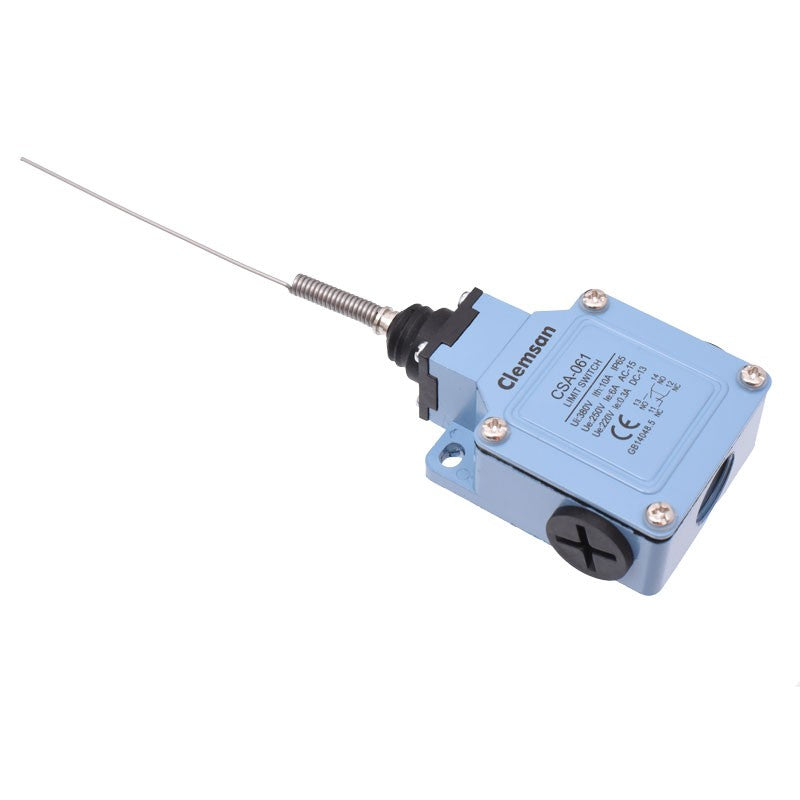

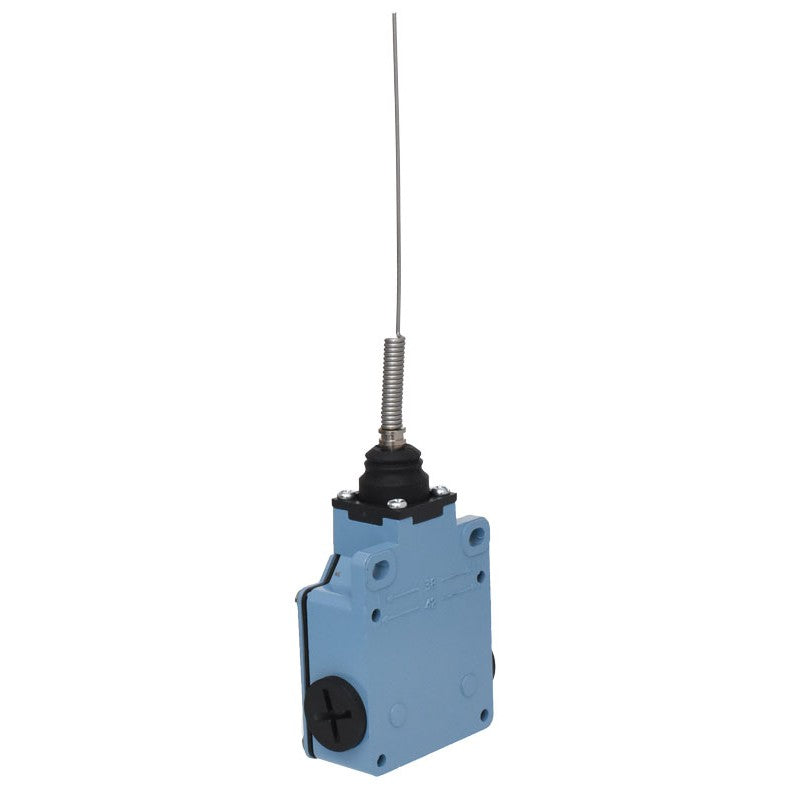

Industrial Limit Switch with Omnidirectional Flexible Wire
The CSA-061 limit switch with flexible wire provides precise control for industrial and home automation through simple, omnidirectional actuation. Designed for production machinery, automatic gates, cranes, and cable car systems, the device combines metallic robustness with an IP65 protection rating, resistance to 10 million mechanical operations, and quick installation without complex adjustments.
What you get with this product
- Omnidirectional actuation of the flexible wire, without the need for precise positioning of the contact obstacle
- Industrial durability with 10 million mechanical operations and 500,000 electrical switches with active load
- Certified IP65 protection, functional between -5°C and +65°C, resistant to dust, humidity, and mechanical shocks
- Quick installation using two mounting holes and an included PG11 connector, without difficult adjustments
- Universal 250V AC/10A compatibility for home and professional automation, according to EN and IEC standards
- Trigger precision at 2mm with a minimum actuation force of 800g, ideal for sensitive applications
How it works and how to install it
The limit switch is fixed to the desired surface using the two mounting holes, with the PG11 connector oriented towards the electrical installation. The flexible wire is pushed by the moving obstacle from any direction, triggering the electrical contact at a displacement of 2mm. The connection to the electrical panel is made via the three PG11 entries, and the mounting position is adjusted so that the wire is naturally touched by the moving part. It does not require sophisticated calibration, working immediately after fixing and wiring.
Frequently Asked Questions
Does it work if the wire is pushed sideways or obliquely?
Yes, the design allows omnidirectional actuation; the wire can be pushed from any angle, and the trigger remains identical.
How resistant is it to external conditions like dust and moisture?
The IP65 protection rating guarantees total resistance to dust and protection against water jets, making it suitable for wet or dirty industrial environments.
Can it be used for home automatic gates?
Absolutely, it supports 10A loads and operates reliably at temperatures between -5°C and +65°C, making it ideal for home or professional automation.
Technical Specifications
| Model | CSA-061 |
| Rated Voltage | 250V AC |
| Rated Current | 10A active load, 4A inductive load |
| Protection Degree | IP65 |
| Actuation Force | Max 800g |
| Release Force | Min 400g |
| Trigger Position | ±10% - 2.0mm |
| Movement Differential | 1.2mm |
| Mechanical Durability | 10,000,000 operations |
| Electrical Durability | 500,000 operations with active load |
| Operating Temperature | -5°C to +65°C |
| Ambient Humidity | 95% RH maximum |
| Operating Speed | 5mm/s to 0.5m/s |
| Cable Gland | 3 x PG11 |

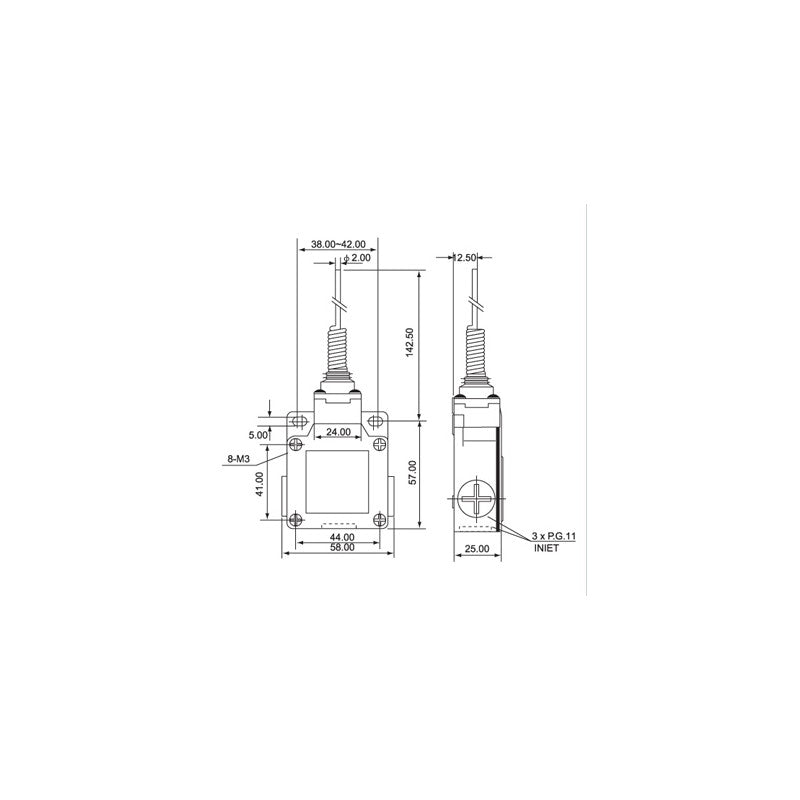

| Dimensions | 199 x 58 x 25 mm |
| Housing Material | Metal |
| Shock Resistance | 1000m/s² min durability, 300m/s² min malfunction |
