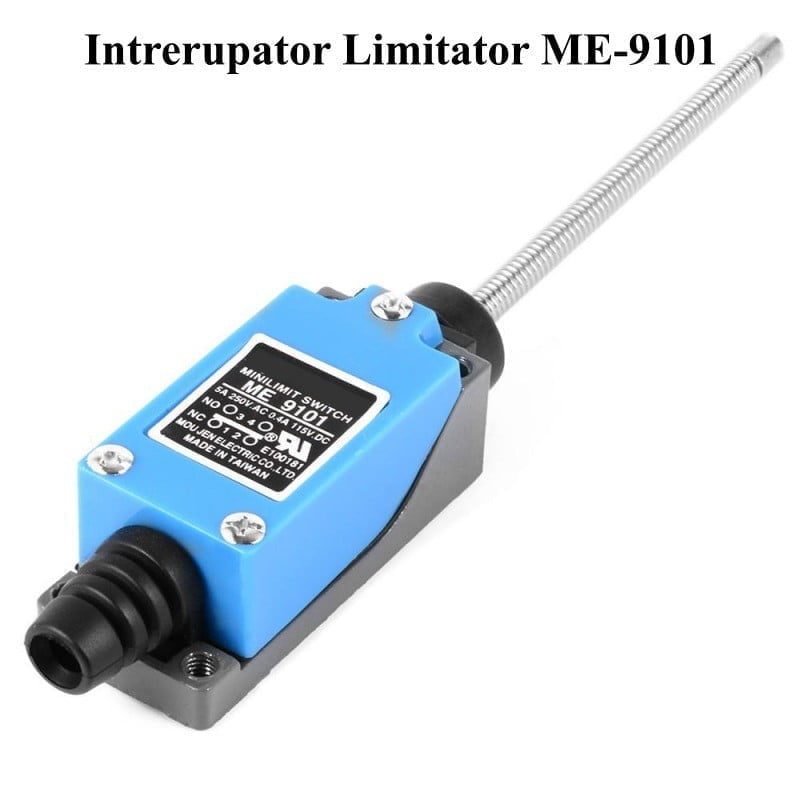

Limit Switch with Spring ME-9101, 10A, Voltage 250V AC
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 20,99 lei | — |
| 3–4 pcs | 19,94 lei | 5% (−1,05 lei/unit) |
| 5–10 pcs | 18,89 lei | 10% (−2,10 lei/unit) |
| 11+ pcs | 17,84 lei | 15% (−3,15 lei/unit) |
Flexible Spring Limit Switch for Industrial Automation and Control
The ME-9101 limit switch with a flexible spring lever offers precise control of mechanical movements in automation systems, garage doors, motors, and industrial installations. Its dual 2 NC + 2 NO configuration and IP66 protection ensure stable operation in harsh environments, while simple mounting allows for quick integration into various applications.
What you get with this product
- Precise position control with 360-degree actuation — you can precisely adjust the cutoff point for any direction of movement
- IP66 protection against dust and water jets — operates reliably in wet or dusty industrial environments
- Flexible 2 NC + 2 NO configuration — connects both normally closed and normally open circuits without additional components

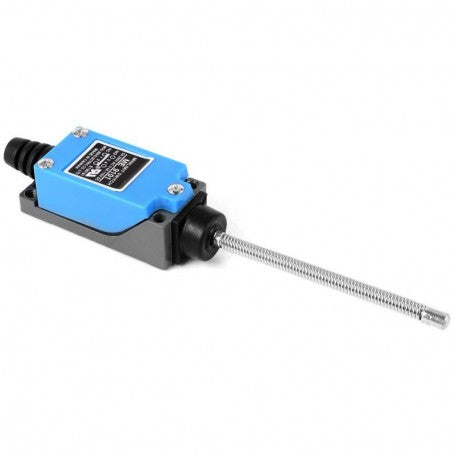

- 90 mm flexible spring lever resistant to repeated impacts — withstands thousands of cycles without deformation or breakage

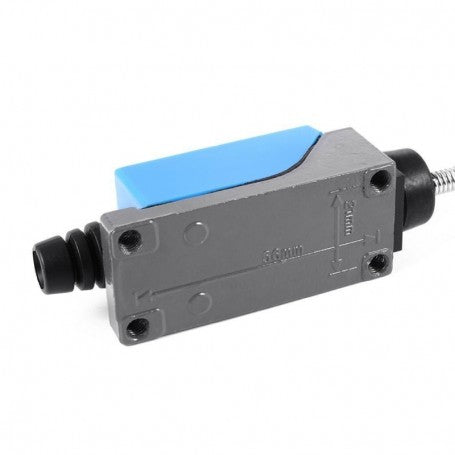

- Quick mounting with two 4 mm holes — fixes the limit switch in under 15 minutes with standard screws
- AC 250V and DC 115V compatible — integrates directly into existing installations without transformers or adapters
How it works and how to install it
The limit switch activates when the flexible steel lever comes into contact with the moving part of the system — the spring bends and triggers the switching of internal contacts. Mount the device on a fixed surface using the two 4 mm mounting holes, then connect the wires to the appropriate terminals for the desired configuration. The 90 mm flexible lever path allows for object detection in any direction, and sensitivity is adjusted by the mounting position.
Frequently asked questions
Can I use this limit switch outdoors or in rooms with high humidity?
Yes, the IP66 protection class ensures complete resistance to dust and protection against powerful water jets, making it suitable for wet industrial environments or protected outdoor mounting.
How do I know which contact to use for my application — NC or NO?
The limit switch offers 2 normally closed (NC) contacts that open upon actuation, and 2 normally open (NO) contacts that close upon actuation. You choose based on the system's logic: NC for safety shutdown, NO for startup upon detection.
How often can the spring be actuated without failing?
The flexible steel spring is designed for intensive repetitive cycles specific to industrial applications — it withstands thousands of daily actuations without permanent deformation or loss of elasticity.
Technical specifications
| Model | ME-9101 |
| Actuator type | Full flexible spring lever |
| Contact configuration | 2 NC + 2 NO |
| Supply voltage | AC 250V / DC 115V |
| Maximum current | 10A (AC) / 0.4A (DC) |
| Protection class | IP66 |
| Lever length | 90 mm |
| Lever diameter | 6 mm |
| Actuation position | 360° |
| Housing dimensions | 64 x 25 x 28 mm |
| Overall dimensions | 180 x 28 x 25 mm |
| Mounting hole diameter | 4 mm |
| Material | Plastic and rubber |
| Color | Blue, gray, black |
Warranty and support
The product benefits from a 24-month warranty in accordance with Romanian law for electronic products. Right of return within 30 days of receipt if the product does not
