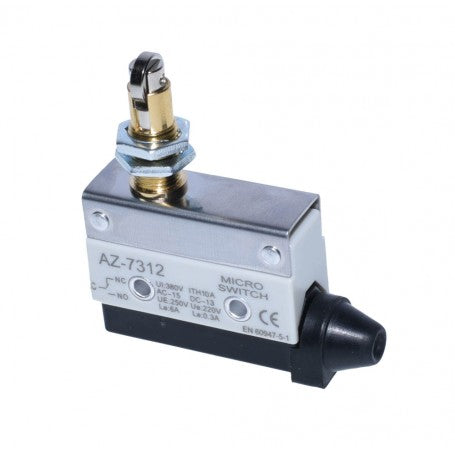

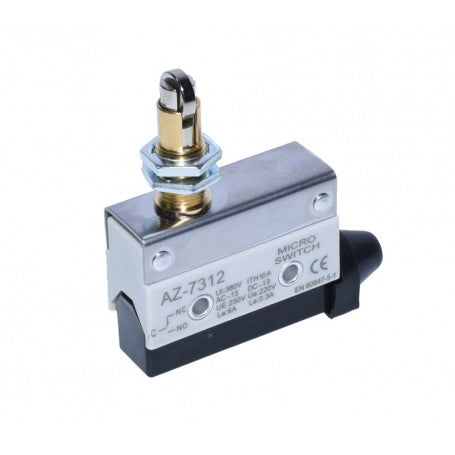

Limit switch AZ 7312, Roller plunger, 10A, 250V AC
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 20,99 lei | — |
| 3–4 pcs | 19,94 lei | 5% (−1,05 lei/unit) |
| 5–10 pcs | 18,89 lei | 10% (−2,10 lei/unit) |
| 11+ pcs | 17,84 lei | 15% (−3,15 lei/unit) |
Professional Mechanical Limit Switch for Industrial and Home Automation
The AZ 7312 limit switch with a plunger and movable roller provides precise control for automated systems, from garage doors to machine tools. Instant activation on contact, no programming or complex wiring required. The reliable solution for automatically stopping mechanisms in the desired position.
What you get with this product
- Precise final position control — the movable roller detects contact and instantly stops the mechanism
- Simple installation on any surface — compact body with mounting nut, installs in under 15 minutes
- High wear resistance — metal body and industrial plastic, tested for thousands of cycles
- Maximum versatility — compatible with door automation, blinds, CNC machines, conveyor belts
- Certified safety — 10A nominal current at 250V AC, CE mark in accordance with European standards
- Maintenance-free — mechanical actuation without fragile electronic components, operates for years
How it works and how to install it
The limit switch is mounted firmly on the equipment frame with the included nut, and the roller is positioned in the path of the moving part. On contact, the button is pressed 6mm and instantly breaks the electrical circuit, stopping the motor. It connects with 3 wires to the control circuit, without the need for advanced skills — the connection diagram is clearly marked on the switch body. Ideal for automatic doors, production systems or any application requiring stopping at a fixed position.
Frequently Asked Questions
How durable is it if used daily?
The metal body and movable roller are designed for industrial environments, resisting over 100,000 actuation cycles without degradation.
Can I use it for an automatic sectional garage door?
Yes, this is the most common application — it mounts on the frame and stops the motor exactly when the door reaches the open or closed position.
Do I need to buy the mounting nut separately?
No, the mounting nut and locknut are included in the package; the switch comes complete and ready for installation.
Technical Specifications
| Model | AZ 7312 |
| Actuation Type | Plunger with movable roller |
| Nominal Voltage | 250V AC |
| Nominal Current | 10A |
| Switching Type | Instant, on push |
| Actuation Travel | 6 mm |
| Total Plunger Height | 35 mm |
| Body Dimensions | 53/70 x 40/70 x 20 mm |
| Body Material | Industrial plastic and metal |
| Certification | CE |
| Package Contents | 1 x AZ 7312 limit switch with mounting accessories |
Warranty and Support
The product benefits from a 24-month warranty in accordance with Romanian legislation for manufacturing defects. Right of return within 30 days of receipt if the product does not meet expectations. Fast delivery by national courier throughout the country.
