Limit switch AZ 7310, Metal head, 10A, Voltage 250V AC
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 16,99 lei | — |
| 3–4 pcs | 16,14 lei | 5% (−0,85 lei/unit) |
| 5–10 pcs | 15,29 lei | 10% (−1,70 lei/unit) |
| 11+ pcs | 14,44 lei | 15% (−2,55 lei/unit) |

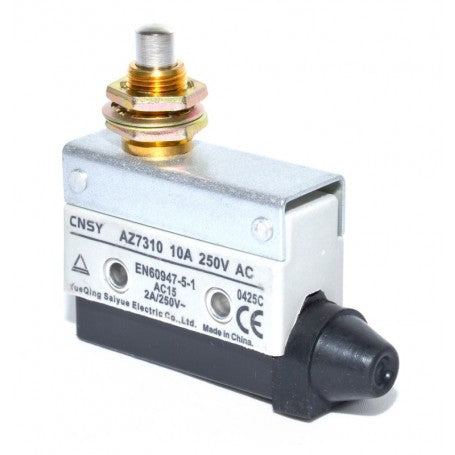

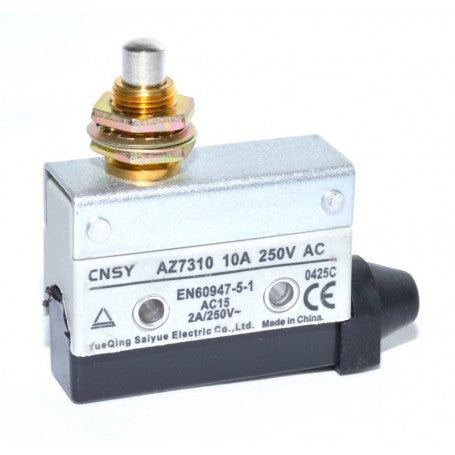

AZ 7310 Industrial Limit Switch with Durable Metal Head
This push-button limit switch is a robust solution for controlling industrial and domestic automation. With a capacity of 10A at 250V AC and a durable metal head, it ensures precise stopping of equipment at programmed points. Ideal for automatic gates, garage doors, machine tools, and blind systems.
What you get with this product
- Quick mounting on any type of automation — pre-existing holes and simple screw-fixing system
- Superior durability with metal head and nut — withstands repeated actions in industrial environments
- Universal compatibility with standard Romanian voltage 250V AC and current up to 10A
- Maximum safety due to flame-retardant ABS plastic casing — protection against overheating
- Instant push-button activation — immediate response for precise stopping of mechanisms
- Compact dimensions 53x40x20 mm — easily integrates into confined spaces
How it works and how to install it
The limit switch is activated by the moving element of the automation pressing the metal head with the nut. Upon contact, the switch instantly changes the electrical circuit, stopping or changing the direction of travel. Installation is done by fixing the body to the static frame with screws, positioning the limit switch so that the head is touched at the desired stop point. Electrical connections are made using the included pin terminals, without special tools.
Frequently Asked Questions
Does it work with 220V automatic gates?
Yes, it is designed precisely for the standard 250V AC mains voltage and supports the current consumed by most residential automations up to 10A.
How many actions does it withstand before wearing out?
The metal head with nut ensures high durability for thousands of actuation cycles, being designed for intensive industrial use.
Can I use it outdoors?
The limit switch can be mounted outdoors if it is protected from direct exposure to precipitation by mounting under a roof or in an additional sealed enclosure.
Technical Specifications
| Model | AZ 7310 |
| Supply Voltage | 250V AC |
| Rated Current | 10A |
| Actuation Type | Push on metal head |
| Contact Type | Instant on-off |
| Actuating Pin Height | 6 mm |
| Dimensions | 53/70 x 40/66 x 20 mm |
| Housing Material | Flame-retardant ABS plastic |
| Head Material | Metal with nut |
| Connection Type | Pin terminals |
| Certifications | CE, EN60947-5-1 |
Warranty and Support
The product benefits from a 24-month warranty in accordance with Romanian consumer protection legislation. You have the right to return within 30 days of receipt if the product does not meet your expectations. Delivery is carried out quickly by national courier with telephone confirmation.
