SMD LED with Red Light and Aluminum Heat Sink, 3W
Available in stock
Minimum order quantity: 2 pcs
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 5,99 lei | — |
| 3–4 pcs | 5,69 lei | 5% (−0,30 lei/unit) |
| 5–10 pcs | 5,39 lei | 10% (−0,60 lei/unit) |
| 11+ pcs | 5,09 lei | 15% (−0,90 lei/unit) |
3W Red LED Chip on Aluminum Star Heatsink
The 3W red light SMD LED chip is mounted on a 20mm diameter aluminum star-shaped heatsink, designed to efficiently dissipate heat and extend the diode's lifespan. It is the ideal solution for DIY projects, replacements in spotlights, or custom decorative and signaling lighting constructions. Available individually or in sets, the chip connects directly to a compatible LED driver.
What you get with this product
- Intense red light with only 3W consumption — suitable for accent lighting, signaling, or electronic projects where color matters

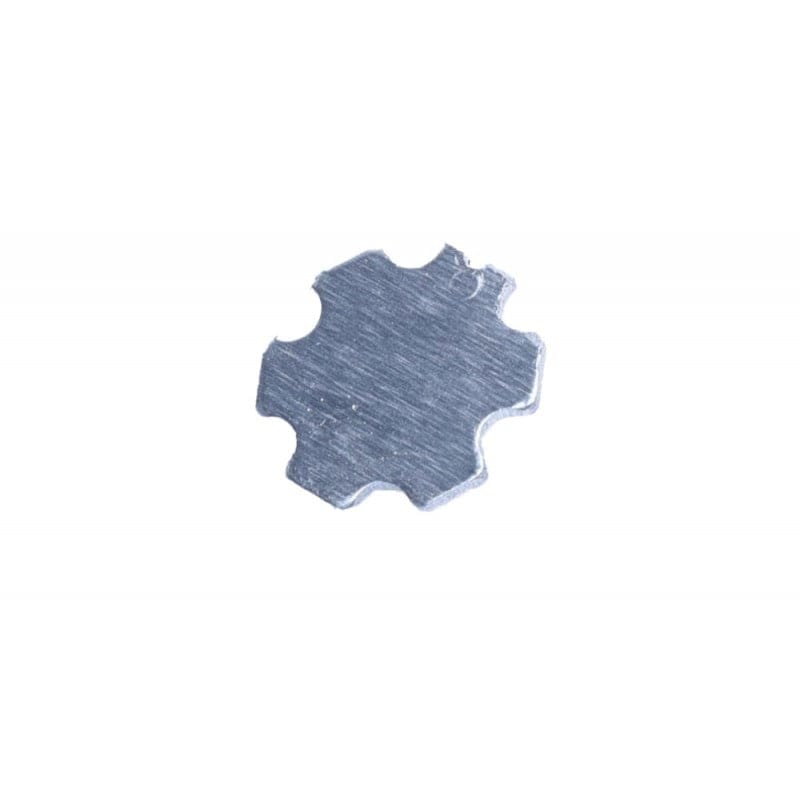

- The 20mm star-shaped aluminum heatsink is already integrated — you no longer need additional support for heat dissipation
- Clearly marked + and - terminals on the aluminum PCB — quick connection, without polarity confusion
- Compact LED chip size (7x3mm) — easily integrates into confined spaces or existing light fixtures
- Compatible with standard 3W LED drivers — you can replace or build without searching for special components

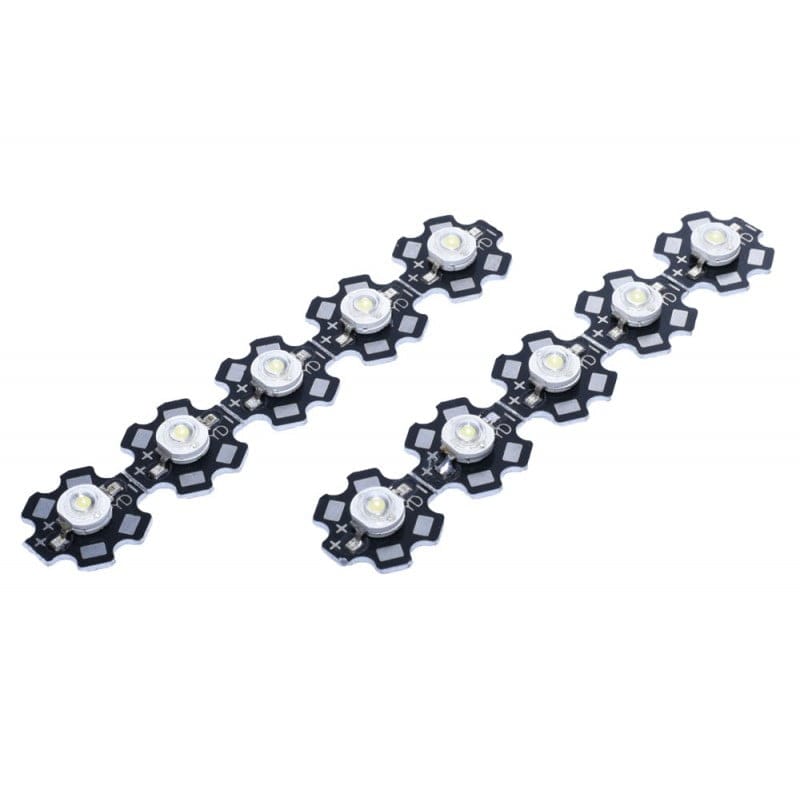

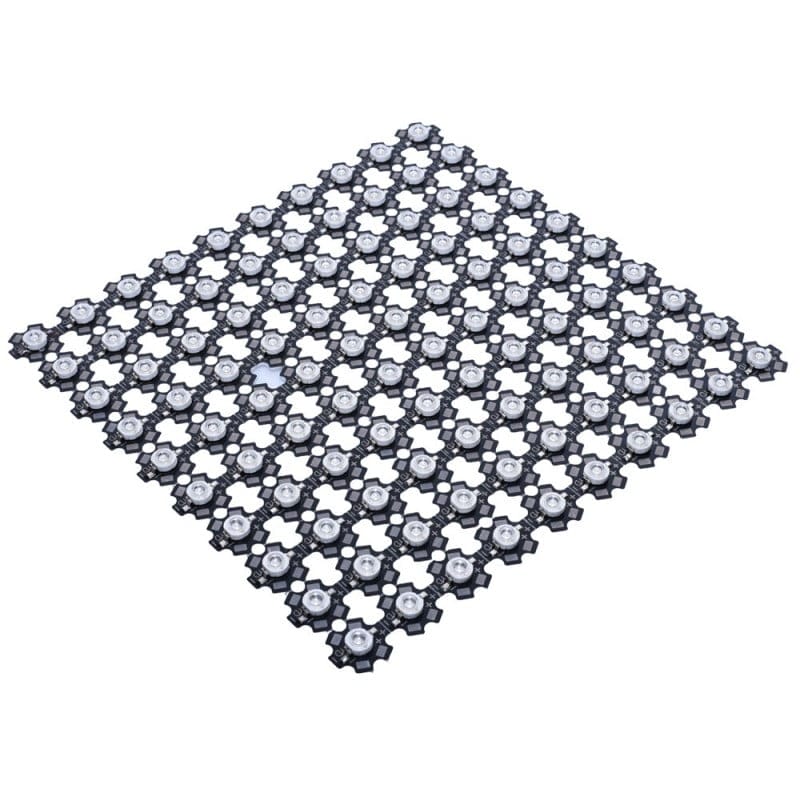

- Available in large batches (visible in images with strips and boards with multiple units) — advantageous price when purchasing quantities for production or repeated projects
How it works and how to install
The LED chip is soldered directly onto the star-shaped aluminum PCB, which acts as the primary heatsink — the heat generated by the LED junction quickly transfers to the metal surface. For operation, connect the positive and negative terminals (marked on the board) to a 3W LED driver with an output voltage of 3.2–3.6V and a current of 500–700mA. For projects requiring additional cooling, the aluminum heatsink can be glued or screwed onto a larger heatsink using thermal paste.
Frequently Asked Questions
Do I need a separate driver or can I power it directly with 12V?
Yes, you need a dedicated LED driver — direct power at 12V or 5V without a resistor or driver will destroy the chip. Use a 3W driver with 3.2–3.6V / 700mA output.
Is the 20mm heatsink sufficient or do I need an additional heatsink?
For intermittent use or lower currents (500mA), the integrated heatsink is sufficient. At maximum continuous current of 700mA, attachment to an additional heatsink with thermal paste is recommended for optimal lifespan.
Can this LED chip be used outdoors or in humid conditions?
The chip does not have certified IP protection as such — for outdoor use, it must be integrated into a light fixture with an adequate protection rating (minimum IP65).
Technical specifications
| Light color | Red |
| Power | 3W |
| Supply voltage | 3.2V - 3.6V |
| Rated current | 500 - 700mA |
| LED chip size | 7 x 3mm |
| Heatsink size (star PCB) | 20mm diameter |
| Heatsink material | Aluminum |
| Mounting type | SMD on aluminum star PCB |
| SKU | Q-20C052 |
| Brand | OEM |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days from the date of receipt, without requiring justification. Delivery is carried out quickly by courier throughout Romania.
