6-segment COB LED, 58X13MM, 2W, Green Light
Available in stock
Minimum order quantity: 6 pcs
| Quantity | Price per unit | You save |
|---|---|---|
| 1–9 pcs | 1,99 lei | — |
| 10–15 pcs | 1,89 lei | 5% (−0,10 lei/unit) |
| 16–20 pcs | 1,79 lei | 10% (−0,20 lei/unit) |
| 21+ pcs | 1,69 lei | 15% (−0,30 lei/unit) |
2W green COB LED chip for projects and ambient lighting
The 2W green COB LED chip with 6 segments is a compact light source, ideal for DIY projects, billboards, displays, ambient lighting, or automotive applications. With small dimensions of 58x13mm and a power consumption of only 2W at 12V DC, it offers an excellent ratio between energy efficiency and light intensity. The product is available in a pack of 10 pieces, making it suitable for both individual use and small series production.
What you get with this product

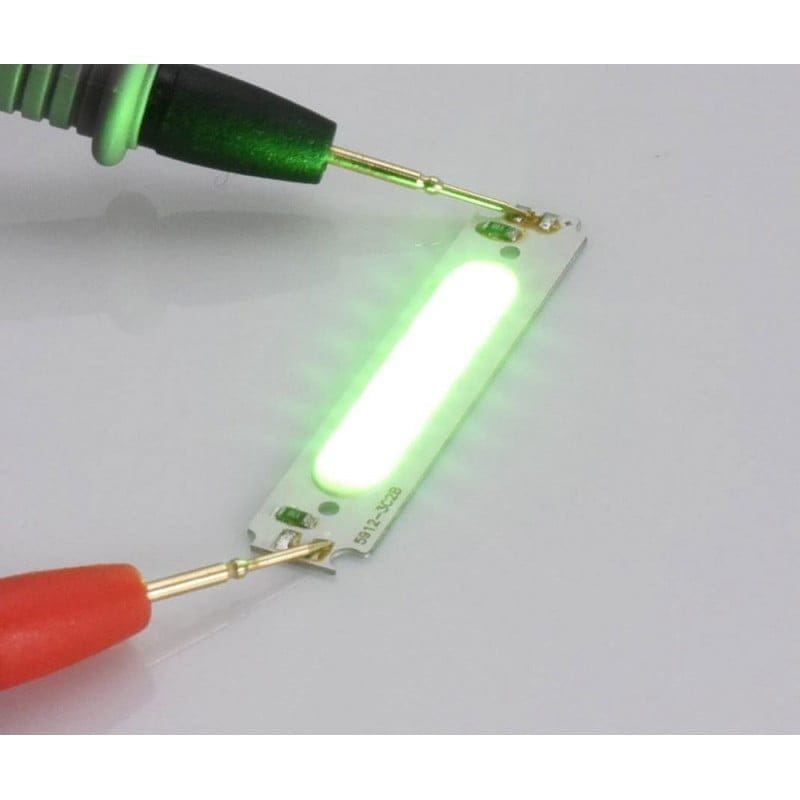

- Uniform green light with an emission angle of less than 120 degrees — the COB surface illuminates consistently without visible hot spots
- Consumption of only 2W at 12V DC — simple integration into battery-powered systems or automotive sources
- Ultra-compact format 58x13mm — fits in narrow spaces, small enclosures, or display modules

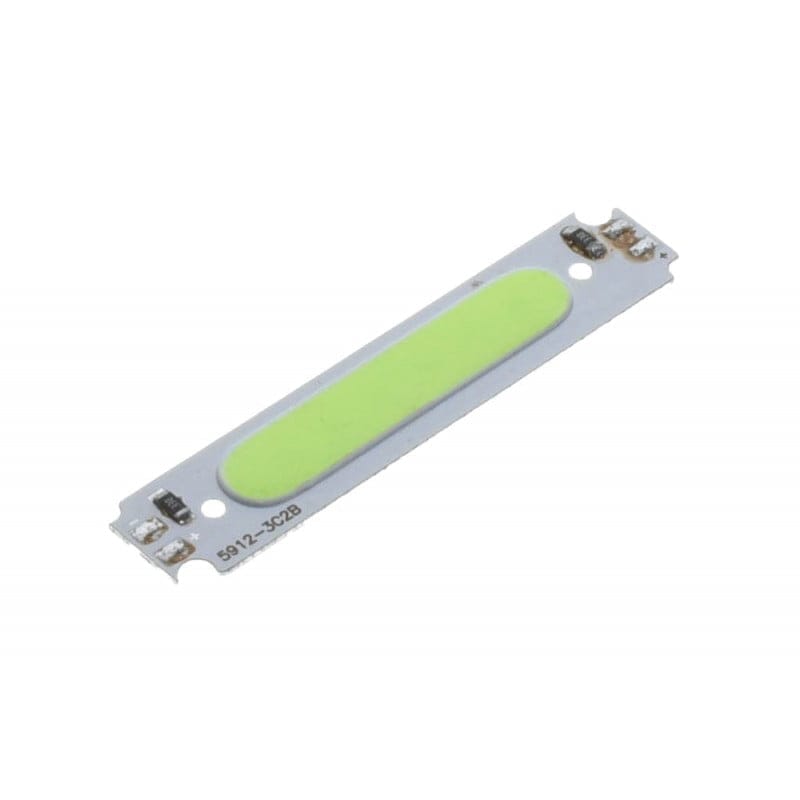

- Aluminum-based PCB support — efficient thermal dissipation that extends the chip's lifespan

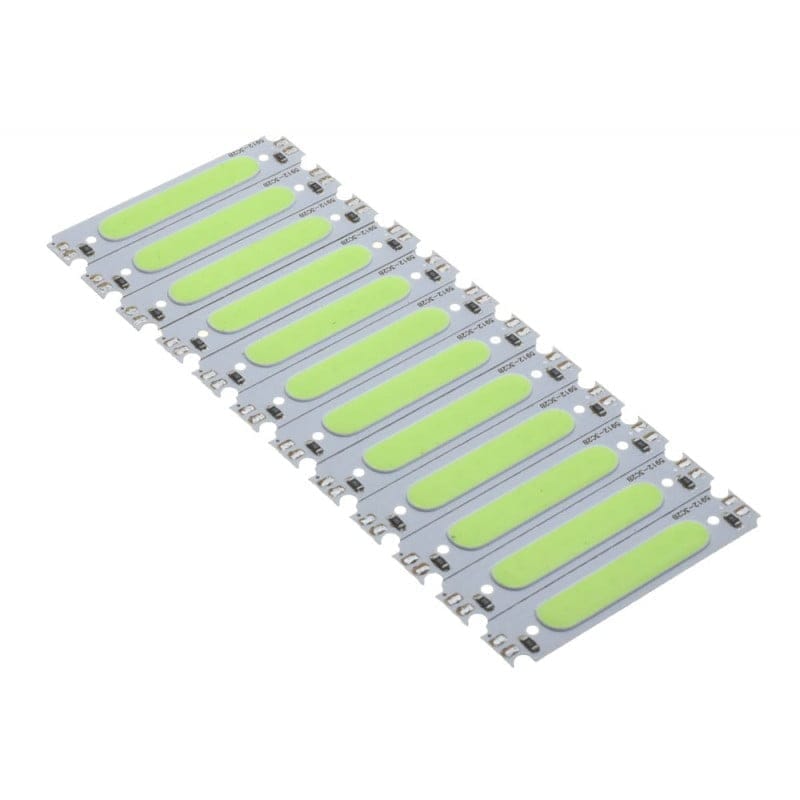

- Pack of 10 pieces — stock for multiple projects or quick replacements, without repeated orders
- No harmful radiation, recyclable components — responsible choice for projects requiring continuous colored light
How it works and how to install it
The COB LED chip is powered directly by 12V DC through a suitable driver or transformer — a source 30-40% larger than the power consumption is recommended for stable operation. Mounting is done on a metal surface or heatsink, using thermal paste to ensure optimal heat transfer and prevent overheating. Connection is made through two soldering points marked on the PCB, an operation accessible to any electronics enthusiast with basic soldering knowledge.
Frequently Asked Questions
What driver or transformer should I use for this COB chip?
A 12V DC driver or source with a current of at least 170mA is required, preferably a source sized at 2.6-3W to ensure stability and longer lifespan.
Is active cooling or a heatsink necessary for this LED?
At 2W, the thermal consumption is low, but mounting on a metal surface with thermal paste is recommended to prevent premature degradation of the chip during continuous use.
Does the package contain 1 piece or 10 pieces?
The package contains 10 identical pieces, model 5912-3C2B, each with dimensions of 58x13mm and green light.
Technical Specifications
| Model | 5912-3C2B |
| Type | COB LED Chip |
| Light color | Green |
| Power | 2W |
| Supply voltage | 12V DC |
| Current | 0.17A (170mA) |
| Luminous flux | 60 lm |
| Color temperature | 500-550 nm (green) |
| Emission angle | less than 120 degrees |

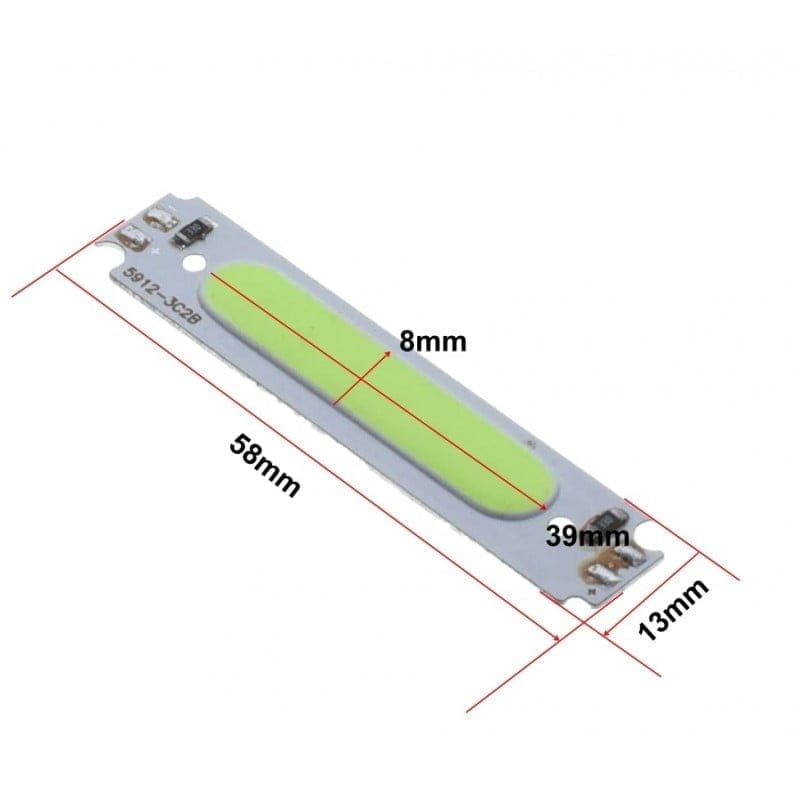

| PCB dimensions | 58 x 13 mm |
| COB area dimensions | 39 x 8 mm |
| Number of LED segments | 6 |
| Support | Aluminum PCB |
| Package contents | 10 pieces |
Warranty and support
The product benefits from a legal warranty of 2 years in accordance with current Romanian legislation. Returns are accepted within 30 days from the delivery date, without the need for justification. Delivery is carried out quickly by courier, with shipping confirmation and package tracking possibility.
