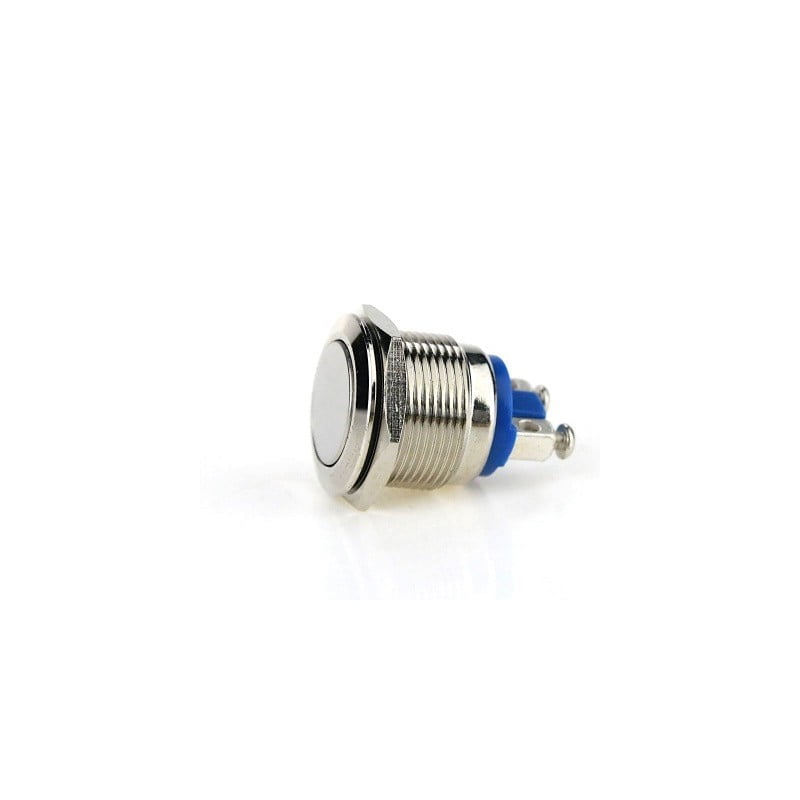

19mm Metallic Push Button Switch, Momentary, 220V
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 13,99 lei | — |
| 3–4 pcs | 13,29 lei | 5% (−0,70 lei/unit) |
| 5–10 pcs | 12,59 lei | 10% (−1,40 lei/unit) |
| 11+ pcs | 11,89 lei | 15% (−2,10 lei/unit) |
19mm Metal Push Button Switch for Industrial Applications
The 19mm momentary metal push button switch is a compact and durable solution for controlling electrical circuits in control panels, industrial equipment, or DIY projects. The nickel-plated metal casing offers high mechanical resistance, while the momentary (non-latching) action makes it suitable for pulse signals, reset functions, or temporary activation. Screw connection ensures a secure and long-lasting contact.
What you get with this product
- All-metal housing — resistant to mechanical wear and vibrations, suitable for industrial environments or frequent use
- Quick 19mm hole mounting — integrates directly into panels, enclosures, or switchboards without additional modifications
- Momentary action — the circuit closes only while pressed, ideal for pulse signals or momentary commands
- 3A/250VAC switching capacity — compatible with relays, indicators, electromagnets, and other typical automation loads
- Screw connection — solid terminals accept conductors of various cross-sections, without the risk of connections loosening over time
- Compact dimensions 25x23mm — occupies minimal space in the control panel, allowing for high mounting density
How it works and how to install it
The momentary metal push button switch operates on the principle of momentary contact: when pressed, the circuit closes, and when released, it automatically returns to the open position. Installation involves drilling a 19mm hole in the desired panel, inserting the button, securing it with the included nut, and connecting the wires to the terminals via screws. No special tools or advanced electrical knowledge are required for mounting.
Frequently Asked Questions
Does the button stay pressed or does it return automatically after activation?
It returns automatically — it is a momentary (non-latching) button, the circuit is closed only while it is pressed, then it automatically opens.
What diameter hole do I need to drill for mounting?
A 19mm diameter hole is required in the panel or enclosure where it is mounted.
Can it be used directly at 220V for resistive loads?
Yes, the button supports 3A at 250VAC, so it can directly control small resistive loads or, more commonly, relay coils and control circuits at mains voltages.
Technical Specifications
| SKU | Q-6D010 |
| Action type | Push, momentary (non-latching) |
| Mounting diameter | 19 mm |
| Product dimensions | 25 x 23 mm |
| Switching capacity | 3A / 250VAC |
| Rated voltage | 220V AC |
| Connection type | Screw |
| Housing material | Nickel-plated metal |
| Package contents | 1 x 19mm metal push button switch |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation, with the possibility of return within 30 days of receipt if it does not meet expectations. Delivery is made quickly by courier throughout Romania.
