Red Push Button Switch 12V - 20A with LED
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 10,99 lei | — |
| 3–4 pcs | 10,44 lei | 5% (−0,55 lei/unit) |
| 5–10 pcs | 9,89 lei | 10% (−1,10 lei/unit) |
| 11+ pcs | 9,34 lei | 15% (−1,65 lei/unit) |

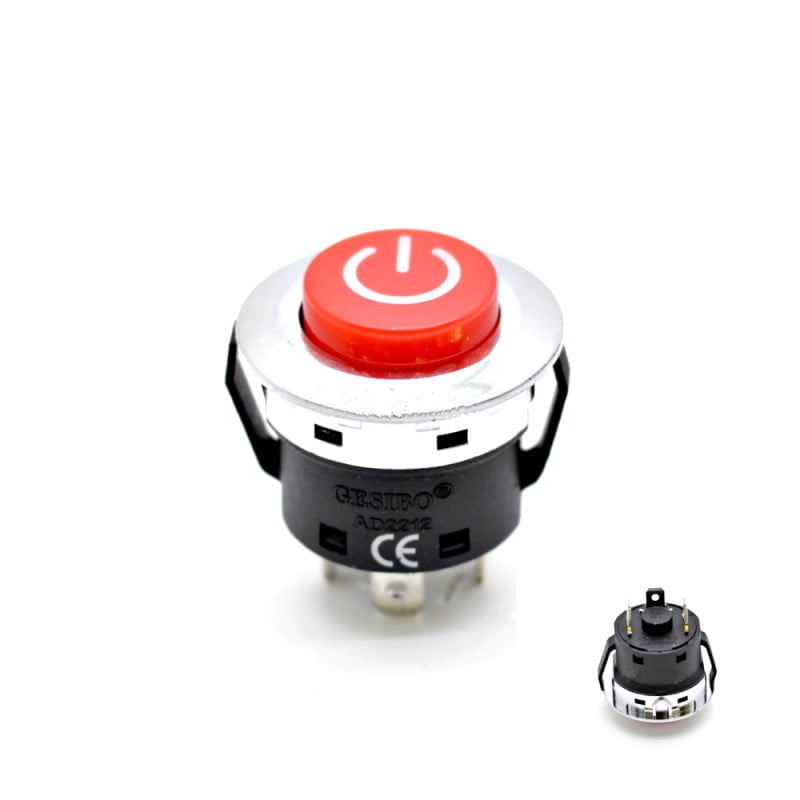

12V Red Push Button with LED for Control Panels
The 12V - 20A red push button switch with LED is a compact and reliable solution for industrial, automotive, or electrical equipment applications requiring a visible and easily identifiable control point. The integrated LED signals the presence of voltage, providing immediate visual confirmation of the circuit status. The chrome housing and red button with a power symbol ensure quick identification in any working conditions.
What you get with this product
- Fast visual identification — The integrated red LED indicates the presence of voltage without additional tools
- Simple mounting in 22mm panels — mounts directly into the standard opening, without adapters
- 20A nominal current — supports high electrical loads without overheating or premature wear
- Secure connection via 3 contact terminals — solid joint, no risk of loosening in vibrating environments
- Power symbol silk-screen printed on the button — intuitive operation, suitable for electrical panels and industrial equipment
- Visible CE certification on the housing — compliance with European electrical safety standards
How it works and how to install it
The push button operates on the principle of momentary contact: pressing it closes or opens the circuit, and the red LED lights up when 12V is present on the circuit. Installation is done by inserting the buttons into the 22mm panel opening, securing with the supplied nut, and connecting the wires to the 3 contact terminals. No special tools or advanced electrical knowledge are required — connections are clear and accessible.
Frequently asked questions
Does the button stay pressed or does it return on its own after pressing?
It is a momentary contact (push) button, which means it automatically returns to its initial position after you release the press.
Can I use this button at 24V or only at 12V?
The nominal voltage is 12V DC; use at higher voltages may damage the integrated LED or internal components.
What is the diameter of the hole required for mounting?
The button is mounted in standard 22mm holes, a common size in electrical panels and industrial panels.
Technical specifications
| SKU | Q-6D001 |
| Nominal voltage | 12V DC |
| Nominal current | 20A |
| Mounting diameter | 22mm |
| Contact type | Momentary push |
| Number of contact terminals | 3 |
| Button color | Red |
| Illumination | Voltage indicator LED |
| Housing | Chrome ring / black plastic body |
| Certification | CE |
| Brand | OEM (GESIBO AD2212) |
| Package contents | 1 x 12V 20A red push button switch with LED |
Warranty and support
The product benefits from a 2-year warranty in accordance with Romanian law. We accept returns within 30 days from the delivery date, without requiring justification. Delivery is carried out quickly by courier, with shipping confirmation and the possibility of parcel tracking.
