ON-OFF-ON Toggle Switch 220V-15A
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 6,99 lei | — |
| 3–4 pcs | 6,64 lei | 5% (−0,35 lei/unit) |
| 5–10 pcs | 6,29 lei | 10% (−0,70 lei/unit) |
| 11+ pcs | 5,94 lei | 15% (−1,05 lei/unit) |

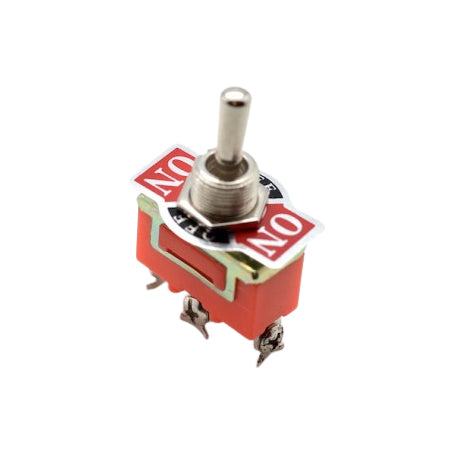

ON-OFF-ON Rocker Switch 220V 15A with Metal Lever
Professional 3-position, 3-contact switch designed for controlling motors, pumps, spotlights, and electrical equipment that require two starting circuits. Quick installation through panel mounting and screw connections, no soldering required.
What you get with this product
- Switching between two independent electrical circuits from a single control point
- Quick mounting on any panel using standard fastening, without complex modifications
- Robust construction with flame-retardant plastic housing and wear-resistant metal lever
- Compatible with 220V mains voltage and loads up to 15A for motors, pumps, or spotlights
- Screw contacts for secure connections, without risk of accidental disconnection
- Usable in both household installations and industrial equipment
How it works and how to install it
The switch toggles between three positions: ON up (circuit 1 active), OFF in the middle (both circuits interrupted), ON down (circuit 2 active). Installation is done through the mounting hole in the control panel, fastening with the included nut, and connecting the 3 wires to the screw terminals. The metal lever allows for firm operation, ideal for equipment that requires frequent mode changes.
Frequently asked questions
Can I use this switch to reverse the rotation direction of an electric motor?
Yes, the ON-OFF-ON configuration with 3 contacts allows for polarity switching, making it the standard solution for reversing the direction of rotation.
What diameter should the hole in the panel be for mounting?
The standard diameter for this type of switch is approximately 12mm; check the thread size before drilling.
Does it support outdoor use or in humid environments?
The switch does not have IP protection, as it is intended for mounting in electrical panels or enclosures protected from moisture and dust.
Technical specifications
| Model | INT-22013B |
| Contact configuration | ON-OFF-ON (3 positions) |
| Number of contacts | 3 screw contacts |
| Rated voltage | 220V AC |
| Maximum current | 15A |
| Actuator type | Lever/metal rod |
| Housing material | Flame-retardant plastic |
| Lever material | Metal |
| EAN Code | 0781499723600 |
Warranty and support
The product benefits from a 2-year warranty according to Romanian legislation. You have the right to return the product within 30 days of receiving the order. Delivery is carried out quickly by national courier throughout Romania.
