Mini ON/OFF Switch 220V Red
Available in stock
Minimum order quantity: 6 pcs
| Quantity | Price per unit | You save |
|---|---|---|
| 1–9 pcs | 1,99 lei | — |
| 10–15 pcs | 1,89 lei | 5% (−0,10 lei/unit) |
| 16–20 pcs | 1,79 lei | 10% (−0,20 lei/unit) |
| 21+ pcs | 1,69 lei | 15% (−0,30 lei/unit) |

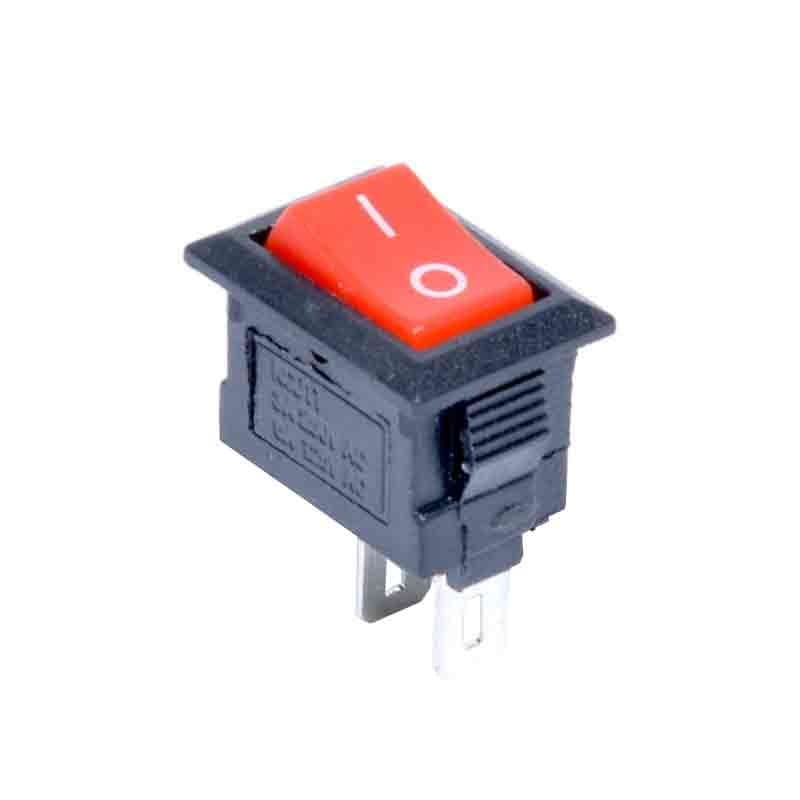

Mini ON/OFF 220V Switch for DIY Projects
This red mini ON/OFF 220V switch is the compact solution for power control in various electrical applications. With small dimensions of 15x10mm and a switching capacity of up to 3A at 250V AC, it easily integrates into control panels, electrical equipment, and custom lighting or home automation projects.
What you get with this product
- Ultra-compact dimensions of just 15x10mm — ideal for tight spaces and small control panels
- Quick installation with side clips — mounts firmly without screws or special tools
- Visible red button — easily identify ON/OFF status even in low light conditions
- Universal compatibility with 125-250V AC — works with any standard electrical equipment
- Flame-retardant plastic construction — increased safety against overheating and short circuits
- Diverse applications — from LED projectors and production machines to power tools and household appliances
How it works and how to install it
The mini switch works by simply pressing the red button to toggle between the ON and OFF positions. Connection is made via the two metal contacts located at the bottom, which are inserted into the terminals of the electrical circuit. Fixing in the mounting panel is done using the integrated side clips, which ensure stable retention without the need for additional holes or screws. The entire installation takes less than 5 minutes, even for users without advanced electrical experience.
Frequently Asked Questions
Can I use the 220V switch for a 10W LED projector?
Yes, the switch supports up to 3A at 250V AC, which means approximately 750W. A 10W projector works perfectly with this model.
Does the button get hot after prolonged use?
At normal loads under 3A, the switch remains at ambient temperature. The flame-retardant material provides additional protection against overheating.
How do I secure the switch so it doesn't move?
The integrated side clips easily press into the mounting panel hole, ensuring a firm grip without screws. The recommended mounting size is 15x10mm.
Technical Specifications
| Operating Voltage | 125-250V AC |
| Maximum Current | 3A at 250V, 6A at 125V |
| Number of Contacts | 2 contacts |
| Switching Type | ON/OFF |
| Overall Dimensions | 15 x 10 x 11 mm |
| Housing Material | Flame-retardant plastic |
| Mounting Method | Integrated side clips |
| Button Color | Red |
| Contact Material | Metal |
| EAN | 0781499723884 |
Warranty and Support
The product comes with a 24-month warranty in accordance with current Romanian legislation. Delivery is made by express courier throughout the country, with the right of return within 30 days of receiving the order.
