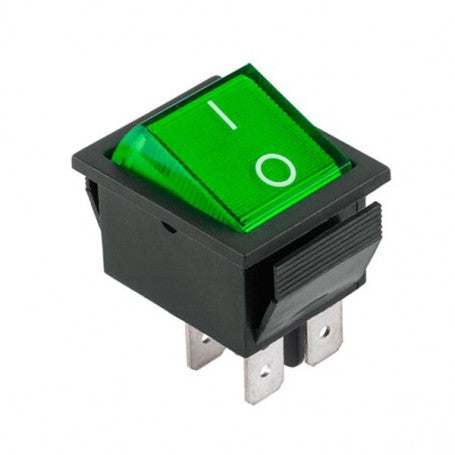

IRS ON-OFF Switch 250V/15A KCD4 Green
Available in stock
Minimum order quantity: 3 pcs
| Quantity | Price per unit | You save |
|---|---|---|
| 1–9 pcs | 3,99 lei | — |
| 10–15 pcs | 3,79 lei | 5% (−0,20 lei/unit) |
| 16–20 pcs | 3,59 lei | 10% (−0,40 lei/unit) |
| 21+ pcs | 3,39 lei | 15% (−0,60 lei/unit) |
KCD4 Switch with Green LED for Safe Control of Electrical Equipment
This ON-OFF switch with a green indicator light ensures reliable control of motors, pumps, and industrial machinery up to 250V/15A. Designed for quick mounting in control panels, drills, grinders, or automotive installations, it offers clear visibility of the operating status via an integrated LED.
What you get with this product
- Instant visual control via green LED signaling the presence of electrical current
- Universal compatibility with household and industrial equipment up to 250V and 15A
- Simple mounting in any control panel due to compact dimensions and pre-configured contacts
- Robust plastic and metal construction resistant to intensive wear
- Safe ON-OFF switching by mechanical action with position locking
- Versatile use for automotive, power tools, water pumps, and industrial machinery
How it works and how to install it
The switch is mounted by inserting it into the corresponding panel opening of 31x25mm and securing it with the side clips. Connection is made to the 4 metal contacts according to the electrical diagram of the equipment. When the button is pressed, the electrical circuit closes (position I), the green LED lights up confirming the current flow, and upon a new press, the circuit opens (position 0). No special tools are required for installation.
Frequently Asked Questions
Can I use the switch for 220V household equipment?
Yes, it is compatible with the standard 220-230V electrical network and supports current up to 15A, sufficient for most household appliances and power tools.
Does the green LED consume additional energy?
The integrated LED has negligible consumption and functions as a status indicator, lighting up automatically when the switch is in the ON position and current flows through the circuit.
Can it be mounted on production machines or industrial equipment?
Absolutely, the switch is designed for both household and industrial use, being compatible with pumps, production machines, grinders, and other professional machinery.
Technical Specifications
| Model | KCD4 Green |
| Contact type | ON-OFF (I-0) |
| Number of contacts | 4 contacts |
| Maximum voltage | 250V AC |
| Maximum current | 20A at 125V / 15A at 250V |
| Rated amperage | 20A |
| Dimensions | 31 x 25 x 32 mm |
| LED indicator | Green for signaling |
| Material | Plastic and metal |
| Actuation type | Push button with locking |
| EAN | 0781499723501 |
Warranty and Support
The product benefits from a 24-month warranty in accordance with Romanian consumer protection legislation. You have the right to return it within 30 days of receipt. Delivery is carried out quickly by national courier, with secure packaging for protection during transport.
