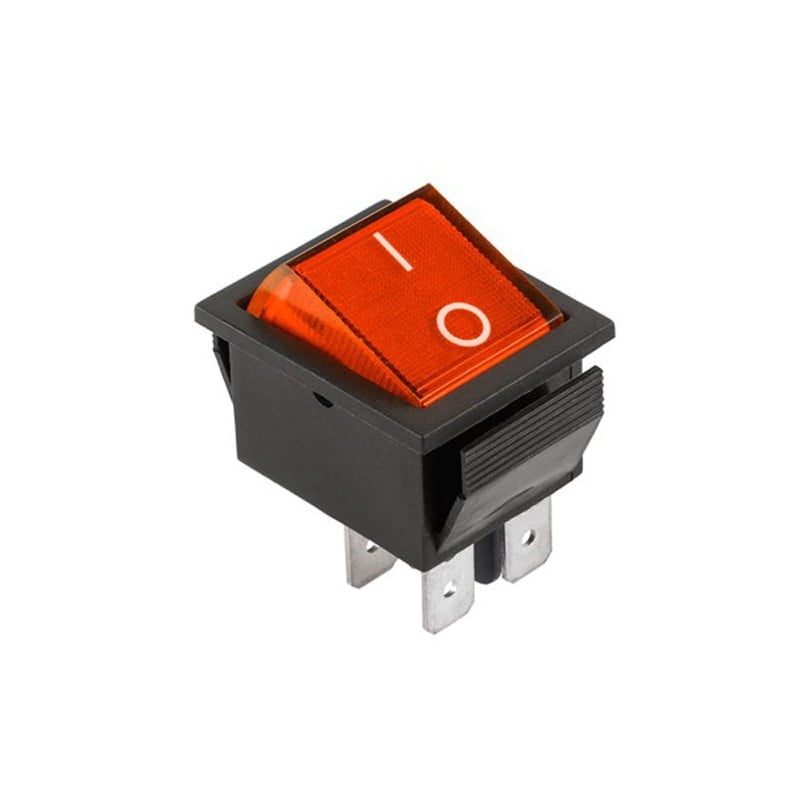

Red ON-OFF IRS Switch 250V/15A KCD4
Available in stock
Minimum order quantity: 3 pcs
| Quantity | Price per unit | You save |
|---|---|---|
| 1–9 pcs | 3,99 lei | — |
| 10–15 pcs | 3,79 lei | 5% (−0,20 lei/unit) |
| 16–20 pcs | 3,59 lei | 10% (−0,40 lei/unit) |
| 21+ pcs | 3,39 lei | 15% (−0,60 lei/unit) |
KCD4 Industrial Switch with LED for Safe Control
The IRS ON-OFF 250V/15A KCD4 switch with a red LED offers visible and reliable control for industrial and household electrical equipment. With 4 contacts and a 20A capacity at 125V, this rocker switch ensures quick switching and clear signaling of power status. It's the ideal solution for machinery, power tools, pumps, and professional lighting systems.
What you get with this product
- Complete visibility of power status via integrated red LED, eliminating the risk of accidental startup
- High capacity of 20A at 125V or 15A at 250V, suitable for motors and industrial equipment
- Quick installation in the control panel through a standard 31x25mm hole, without complex modifications
- Robust plastic and metal construction that withstands intensive use in workshops and construction sites
- Clear ON-OFF rocker action, without intermediate positions that can cause confusion
- Maximum versatility for automobiles, boats, power tools, pumps, and various machinery
How it works and how to install it
The switch is mounted by fixing it in the corresponding opening in the control panel or equipment housing. The 4 contacts are connected according to the electrical diagram: 2 contacts for the main circuit and 2 for powering the indicator LED. When the button is pressed to the ON position, the circuit closes and the red LED lights up, confirming the presence of voltage. Rocking to the OFF position interrupts the power and turns off the LED.
Frequently Asked Questions
Can it be used at 220V for water pumps or power tools?
Yes, the switch supports 250V AC and 15A, making it perfectly compatible with the standard 220V electrical grid for controlling pumps, drills, and other tools.
Does the LED require a separate power supply or does it operate automatically?
The LED is powered by 2 of the switch's 4 contacts, lighting up automatically when the circuit is in the ON position without a separate source.
What size hole is needed in the panel for mounting?
The recommended mounting hole is approximately 29x23mm, with the switch having external dimensions of 31x25x32mm and fixing via side clamps.
Technical Specifications
| Model | KCD4 Red |
| Contact Type | ON-OFF (I-0), 4 contacts |
| Rated Voltage | 125V AC / 250V AC |
| Maximum Amperage | 20A at 125V, 15A at 250V |
| Actuation Type | Rocker switch |
| Indicator LED | Red, integrated |
| Dimensions | 31 x 25 x 32 mm |
| Housing Material | Durable plastic and metal |
| Applications | Industrial, automotive, marine, household |
| EAN | 0781499723518 |
Warranty and Support
The product benefits from a 24-month warranty in accordance with Romanian consumer protection legislation. You have the right to return the product within 30 days of receipt. Delivery is fast via national courier, with tracking available for each order.
